Engine Coolant Temp Sensor: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

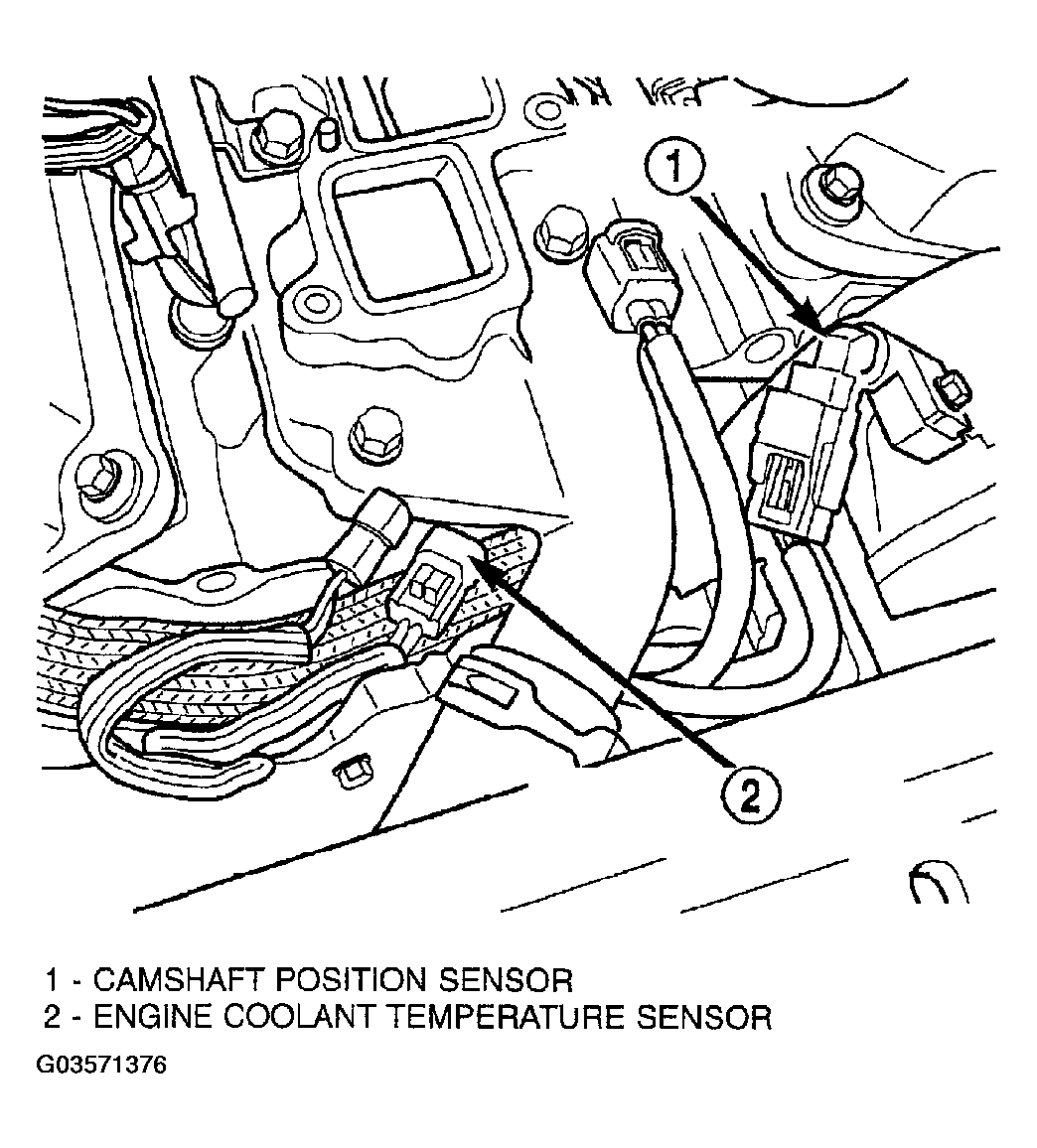

  1. Install engine coolant temperature sensor (Figure ). Tighten sensor to 7 N.m (60 in. lbs.).
  2. Connect electrical connector to sensor.
  3. Fill cooling system. (Refer to STANDARD PROCEDURE - COOLING SYSTEM FILLING )
