Terminals Of Ecu
Terminals Of Ecu
For inspection, go to
Fig 1
.

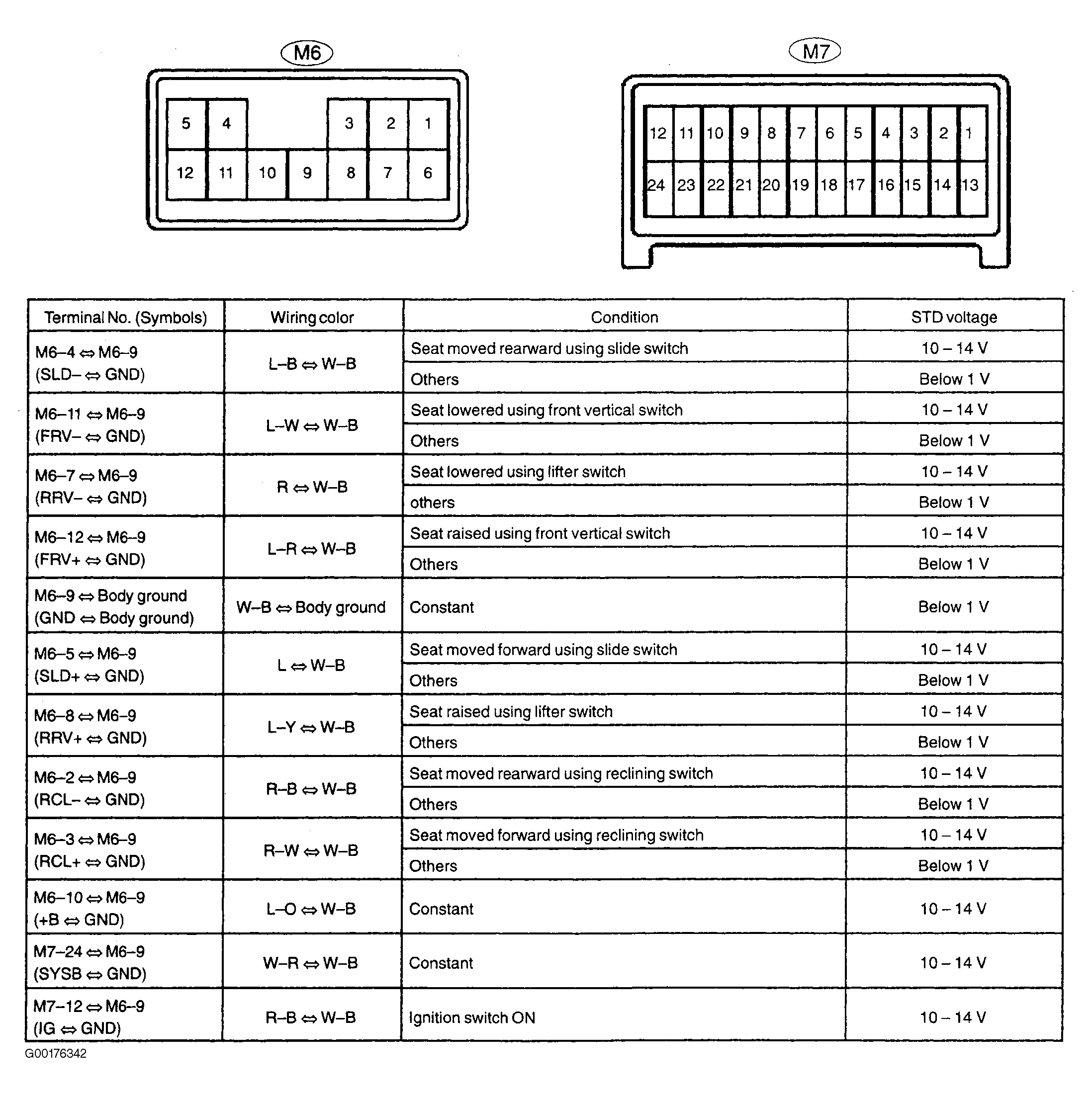

Fig 1: Inspecting ECU Power Seat Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
