Engine Compartment

Power Source Part 2:



Power Source Part 1:

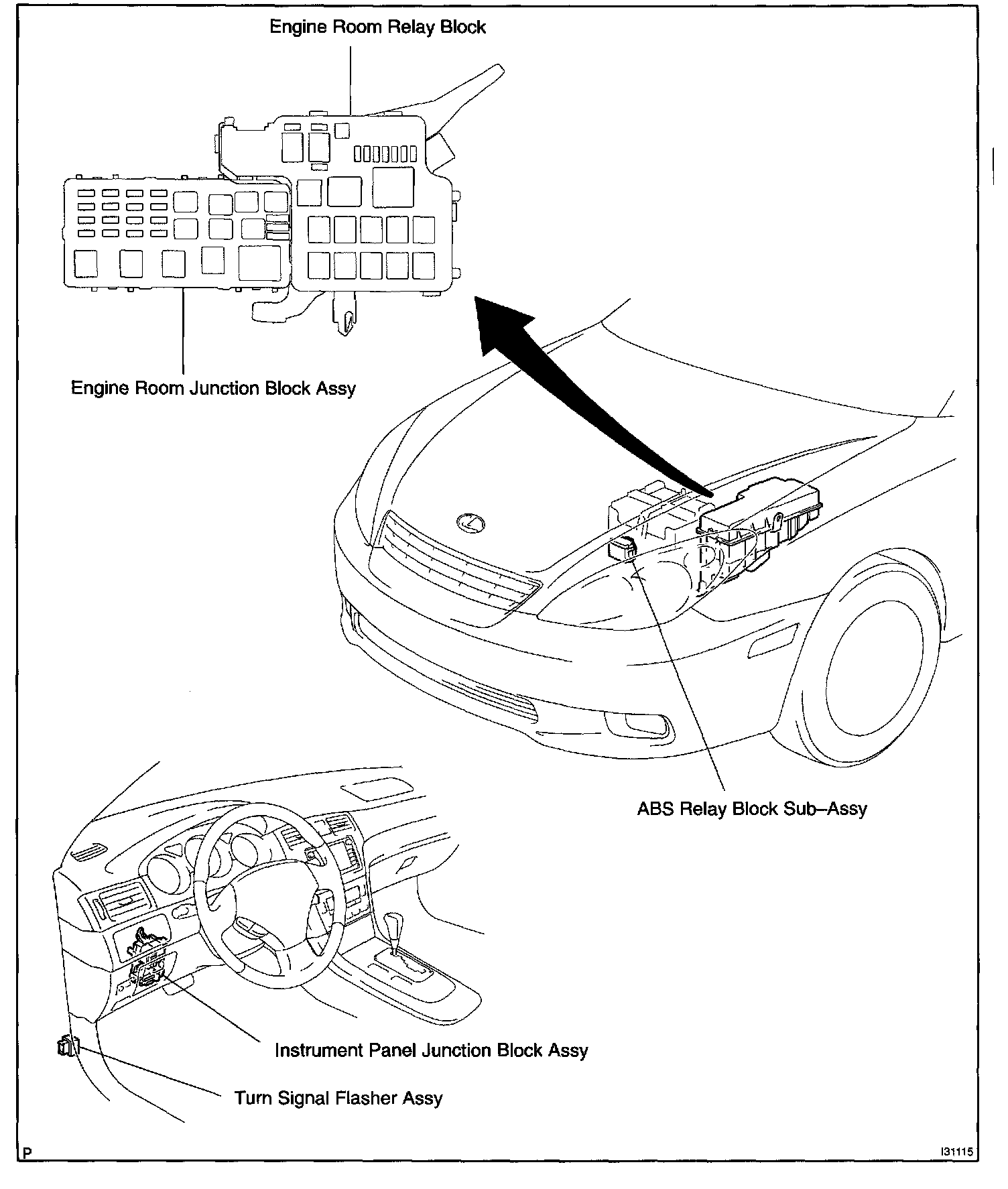

Engine Compartment:



Power Source Part 3:

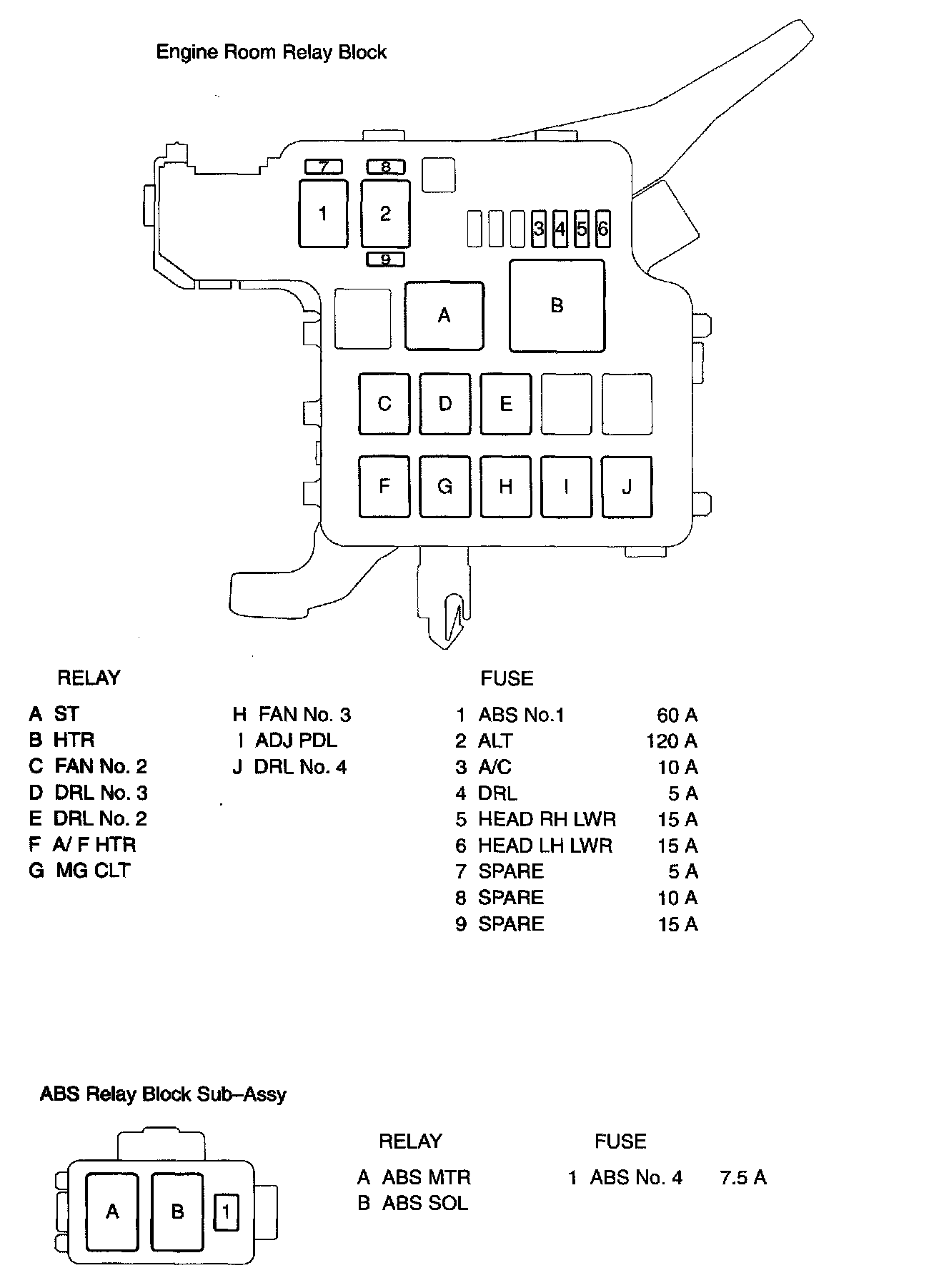

Engine Room R/B:

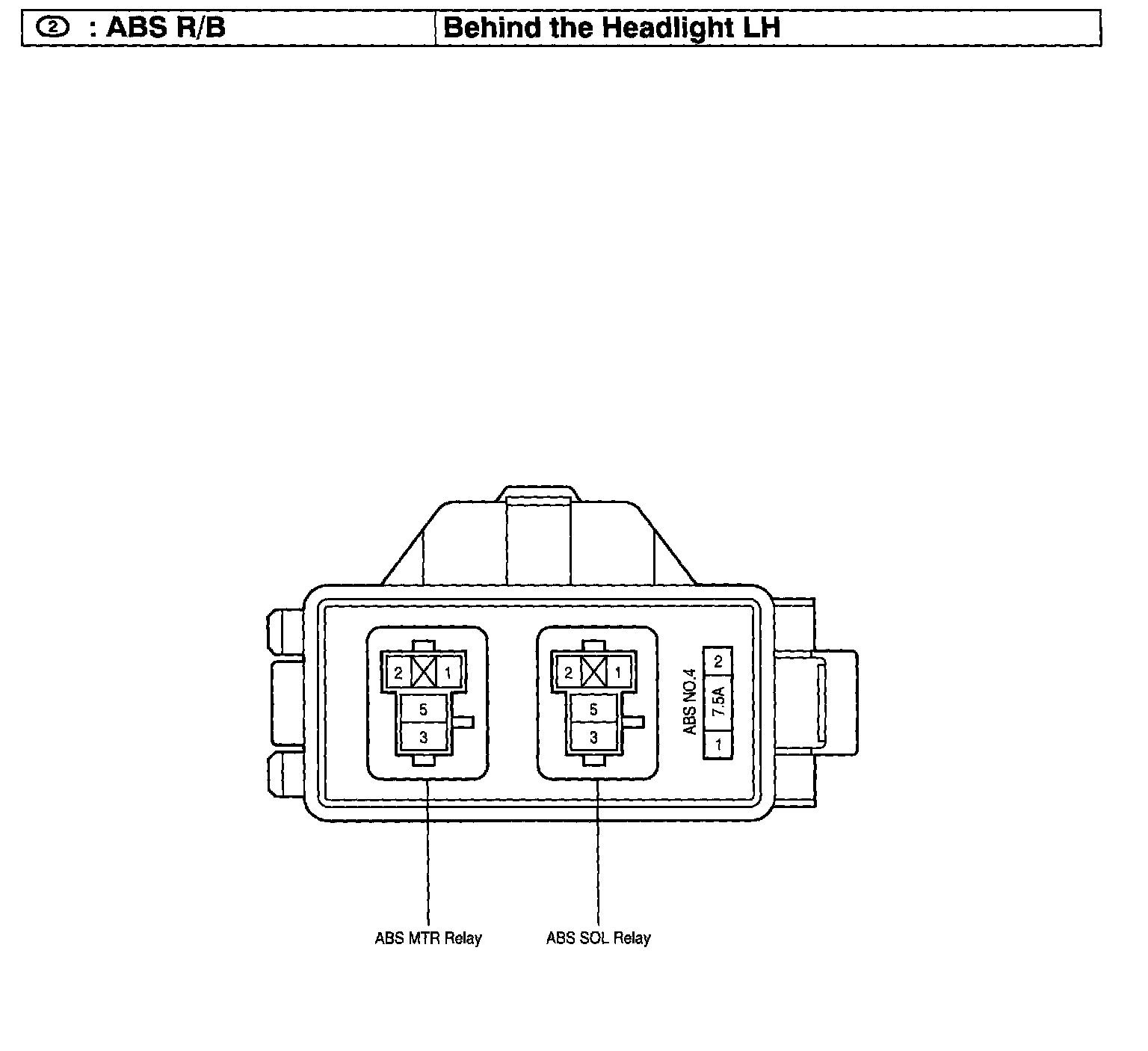

ABS R/B:

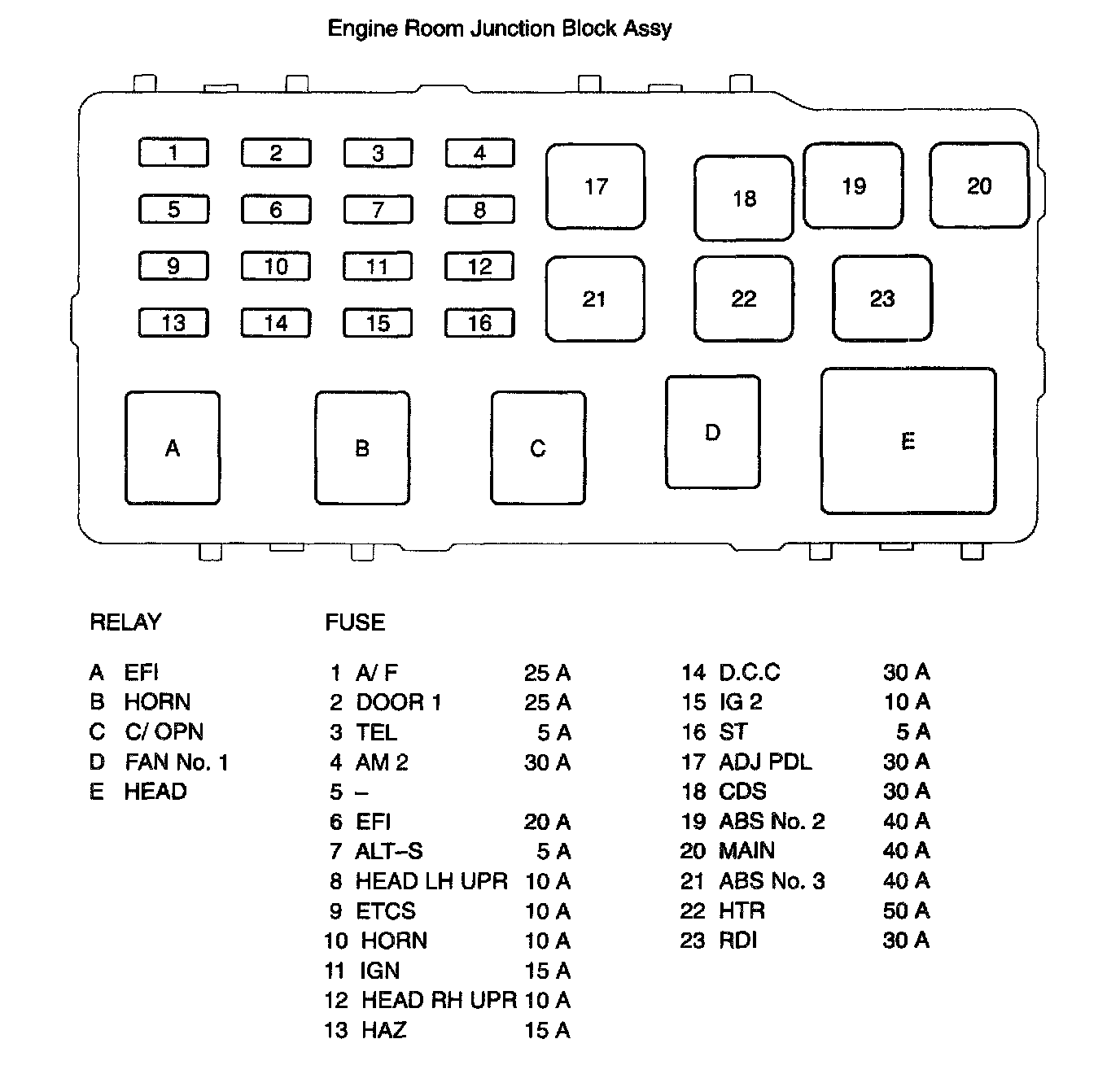

Engine Room J/B Part 1:



Engine Room J/B Part 2:
