System Diagram
PARKING BRAKE COMPONENTS

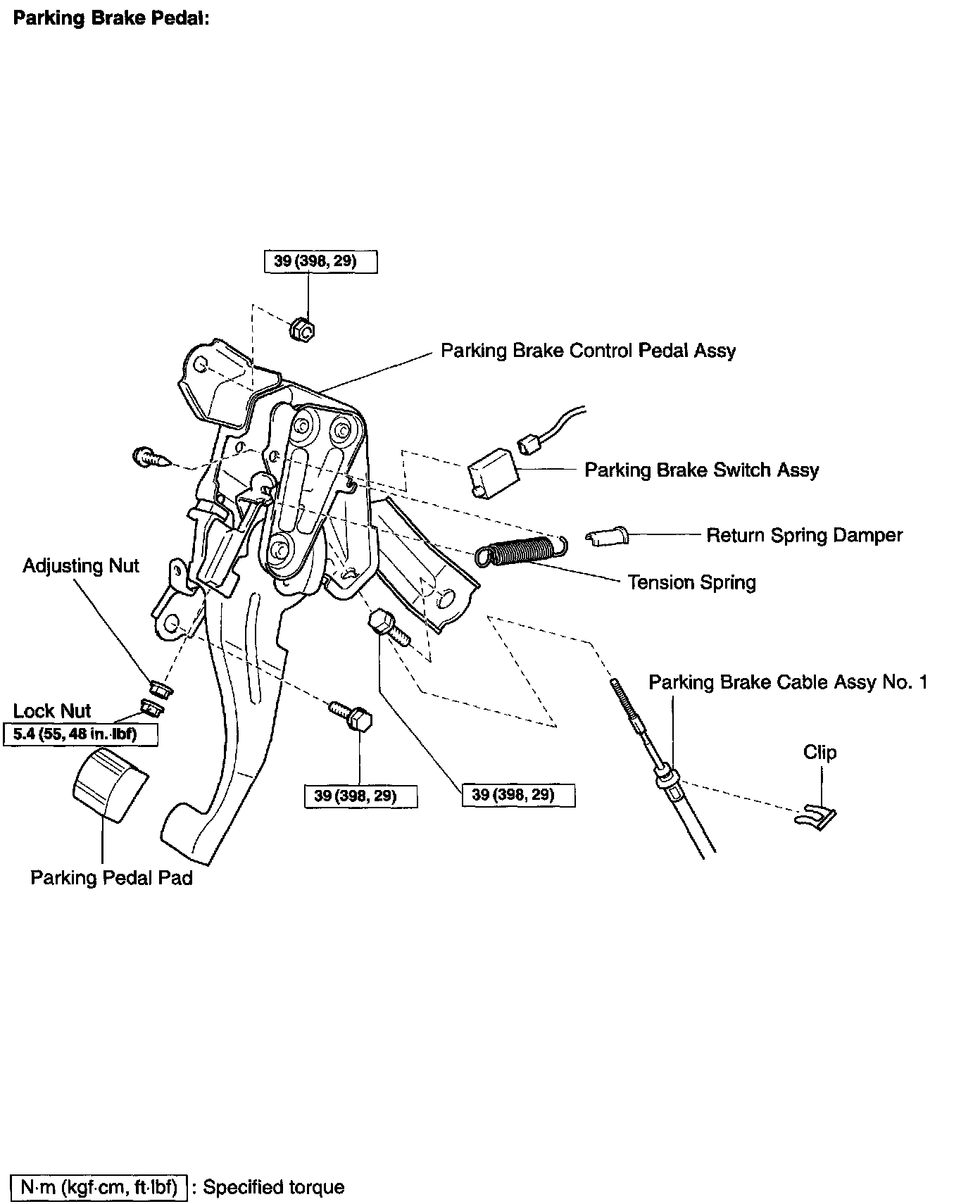

Parking Brake Pedal

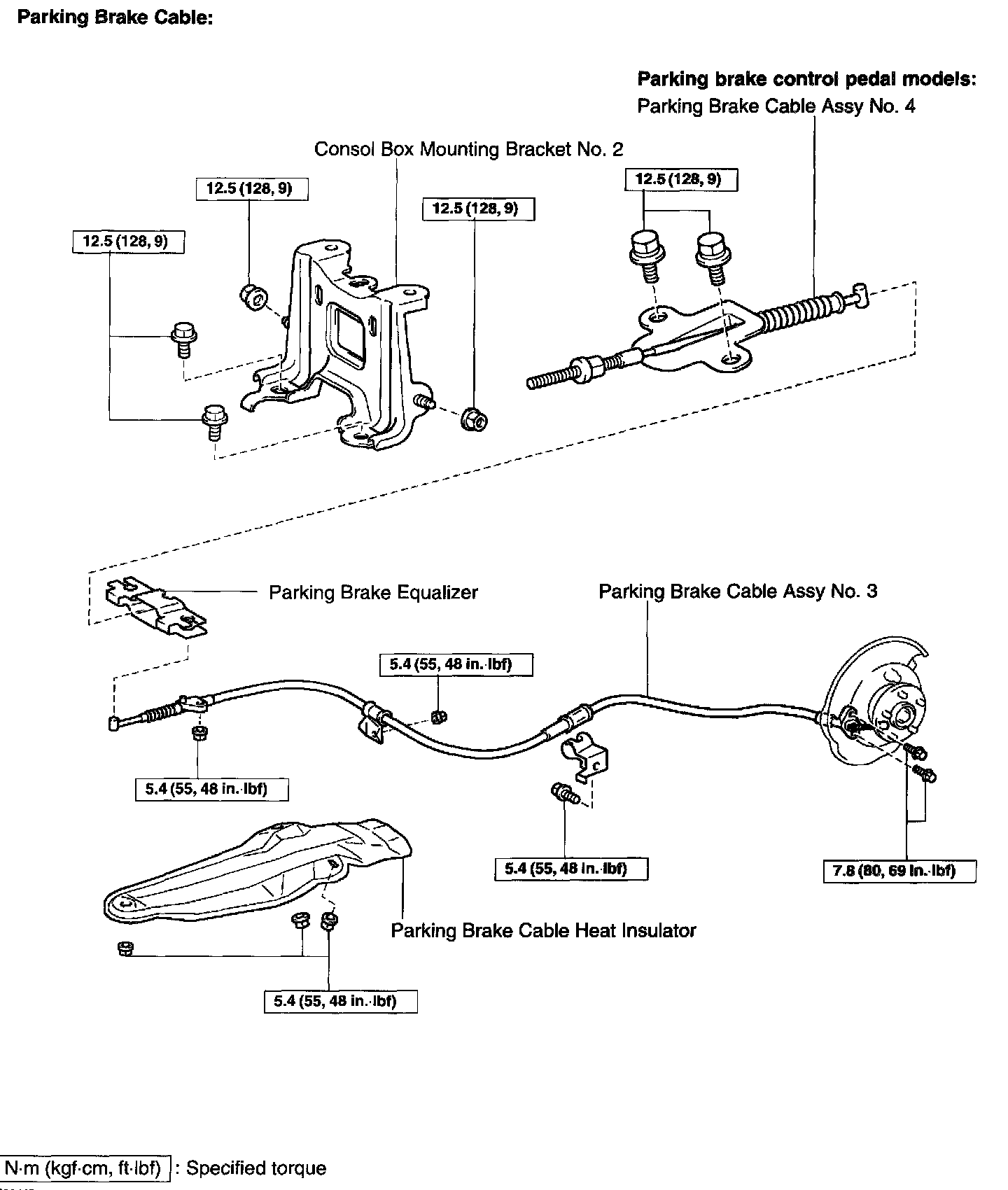

Parking Brake Cable

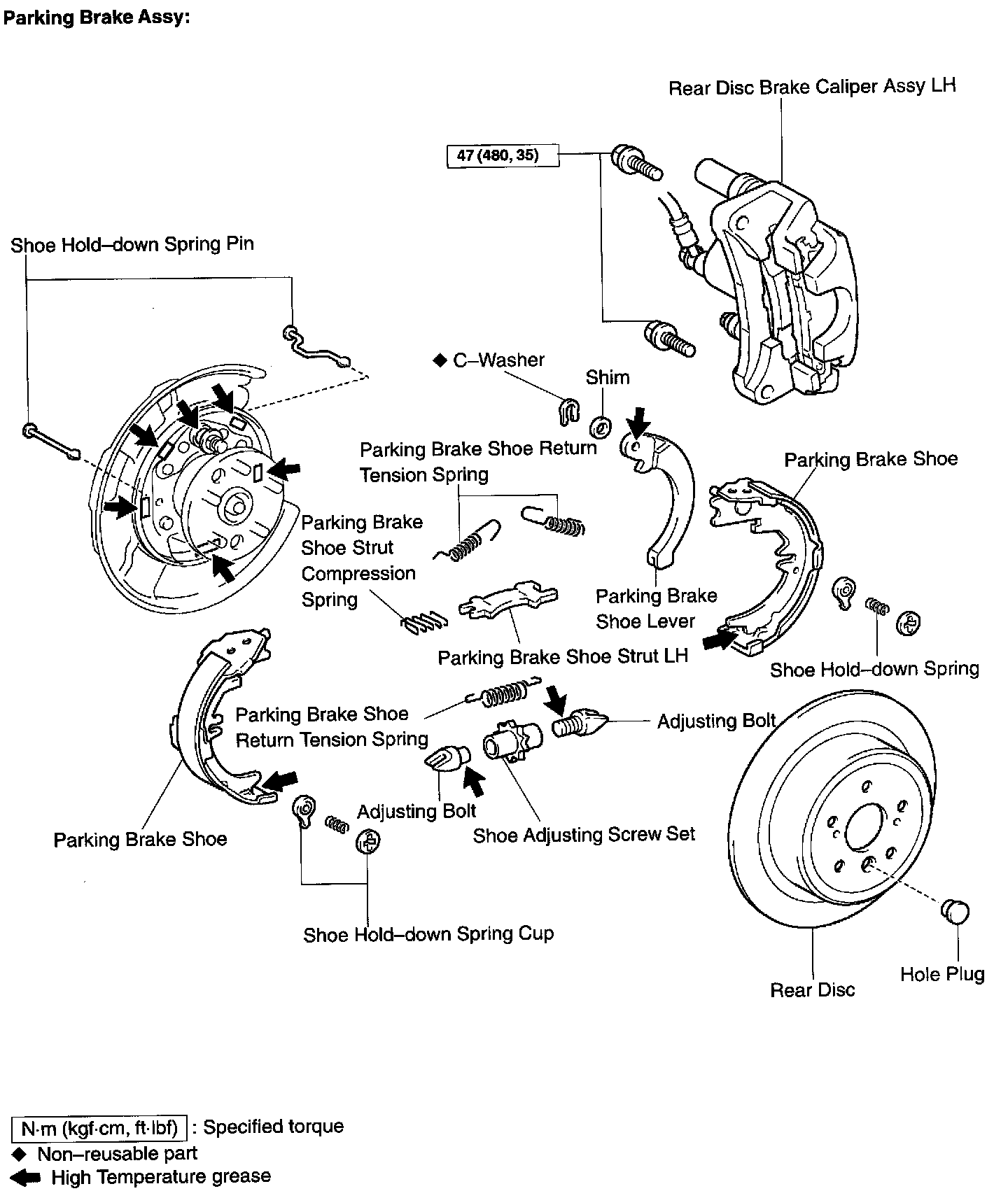

Parking Brake Assembly
