Headliner

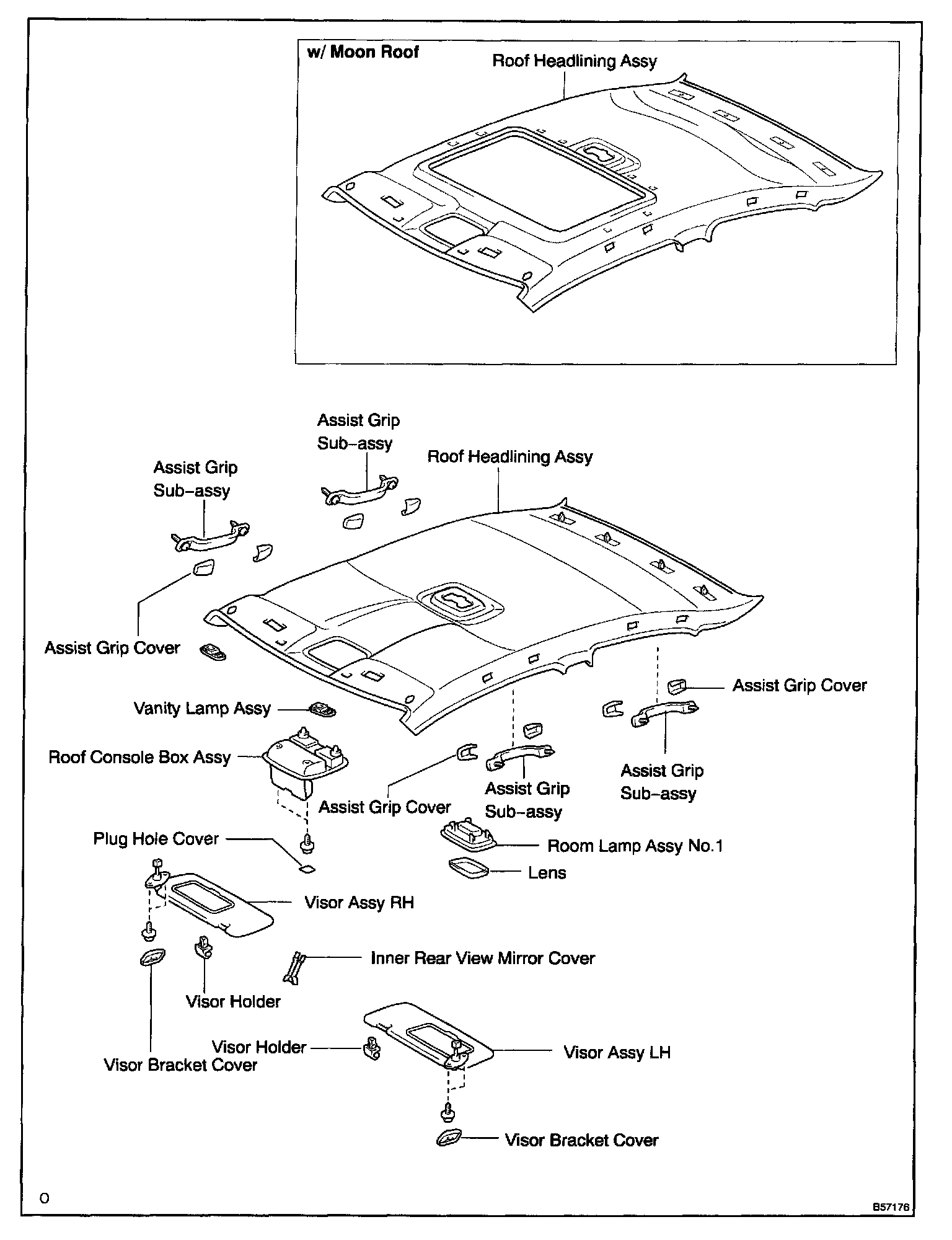

Roof Headlining Assy Part 1:

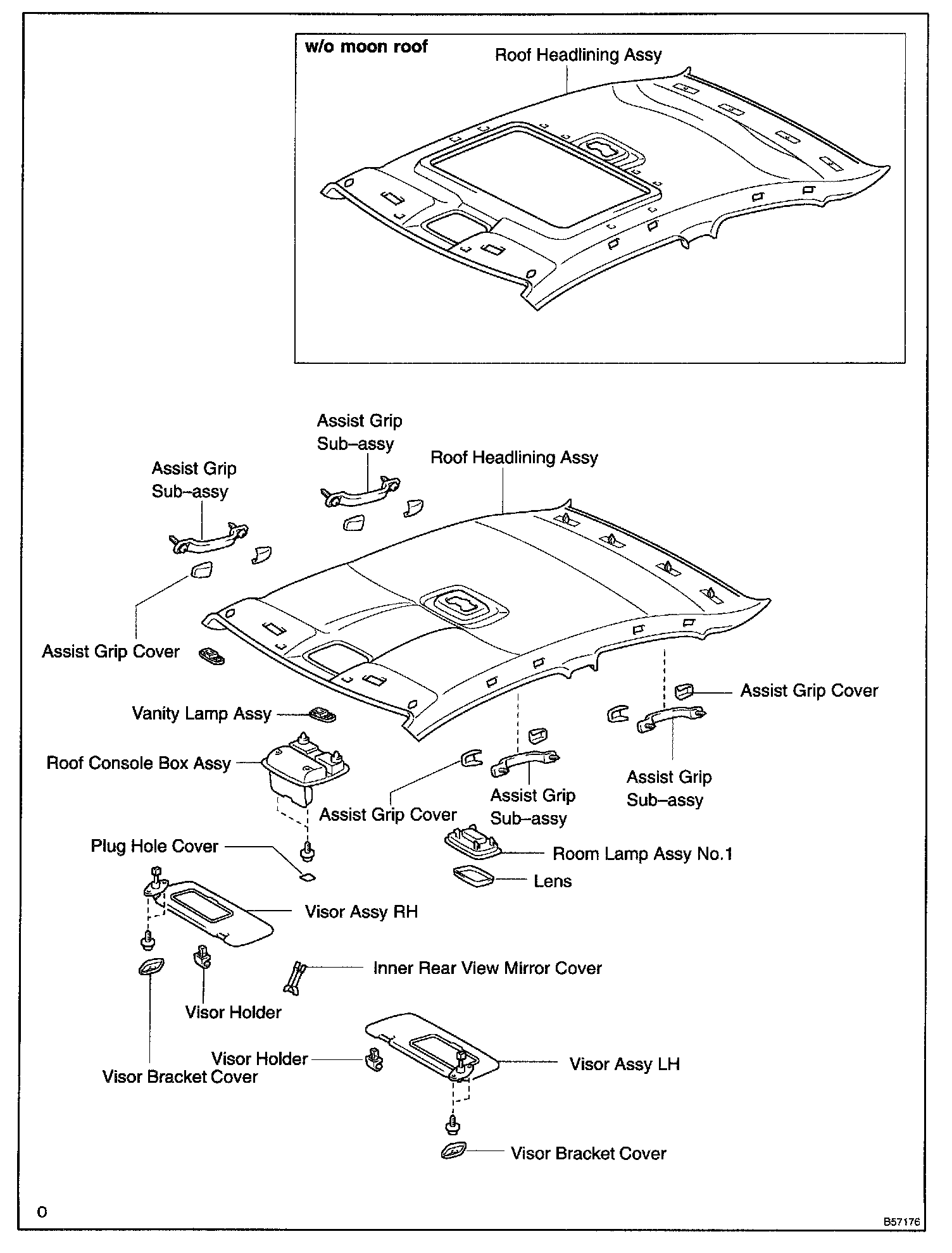

Roof Headlining Assy Part 2:



Roof Headlining Assy:



Roof Headlining Assy:
