How To Proceed With Troubleshooting

NOTE: This ECU is connected to the multiplex communication system. Therefore, be sure to check that there is no troubles in the multiplex communication system before performing the troubleshooting.

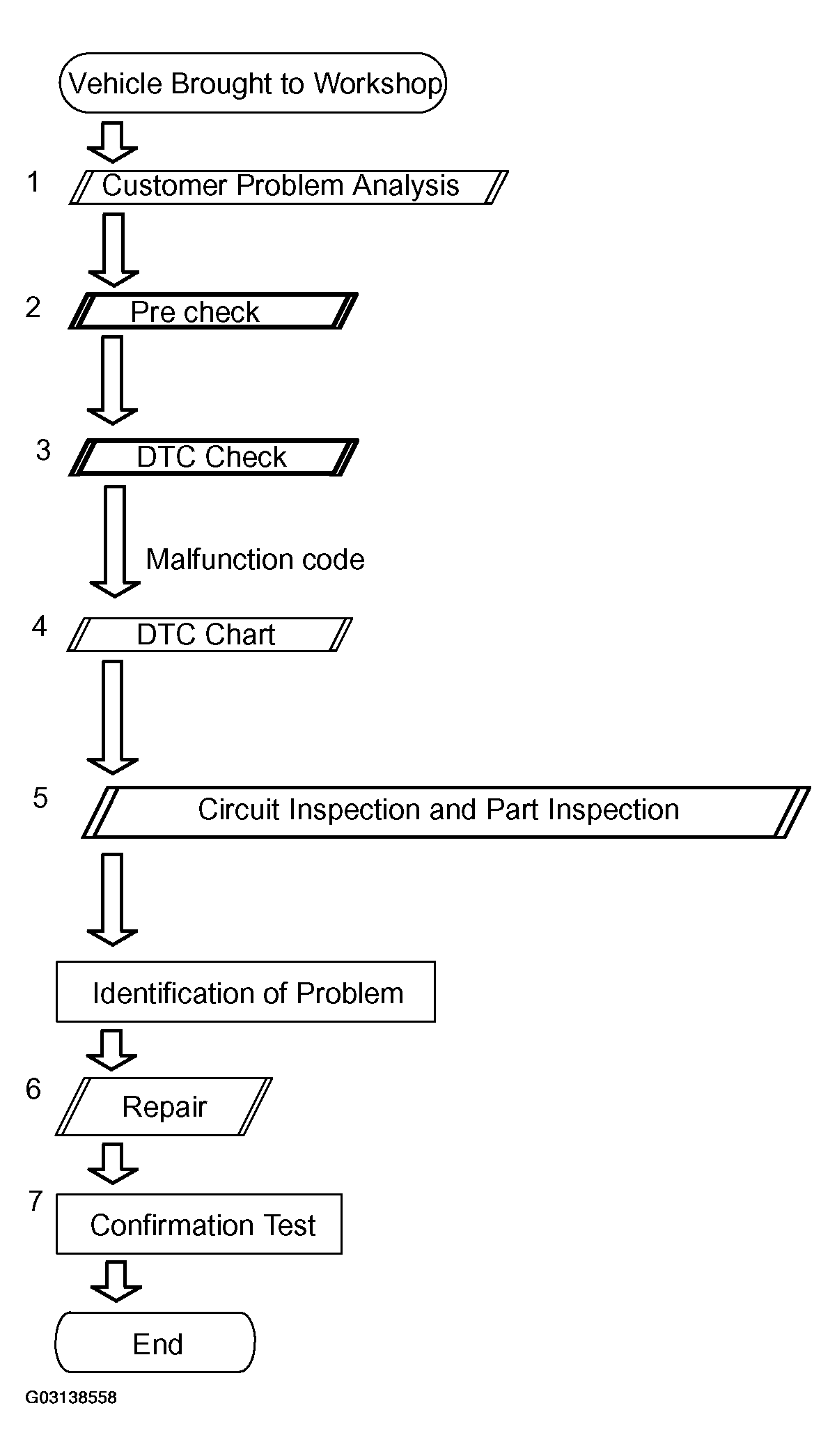

Fig 1: Lexus Link System Troubleshooting Chart
G03138558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
