Home >> Lexus >> 2001 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications

System Specifications

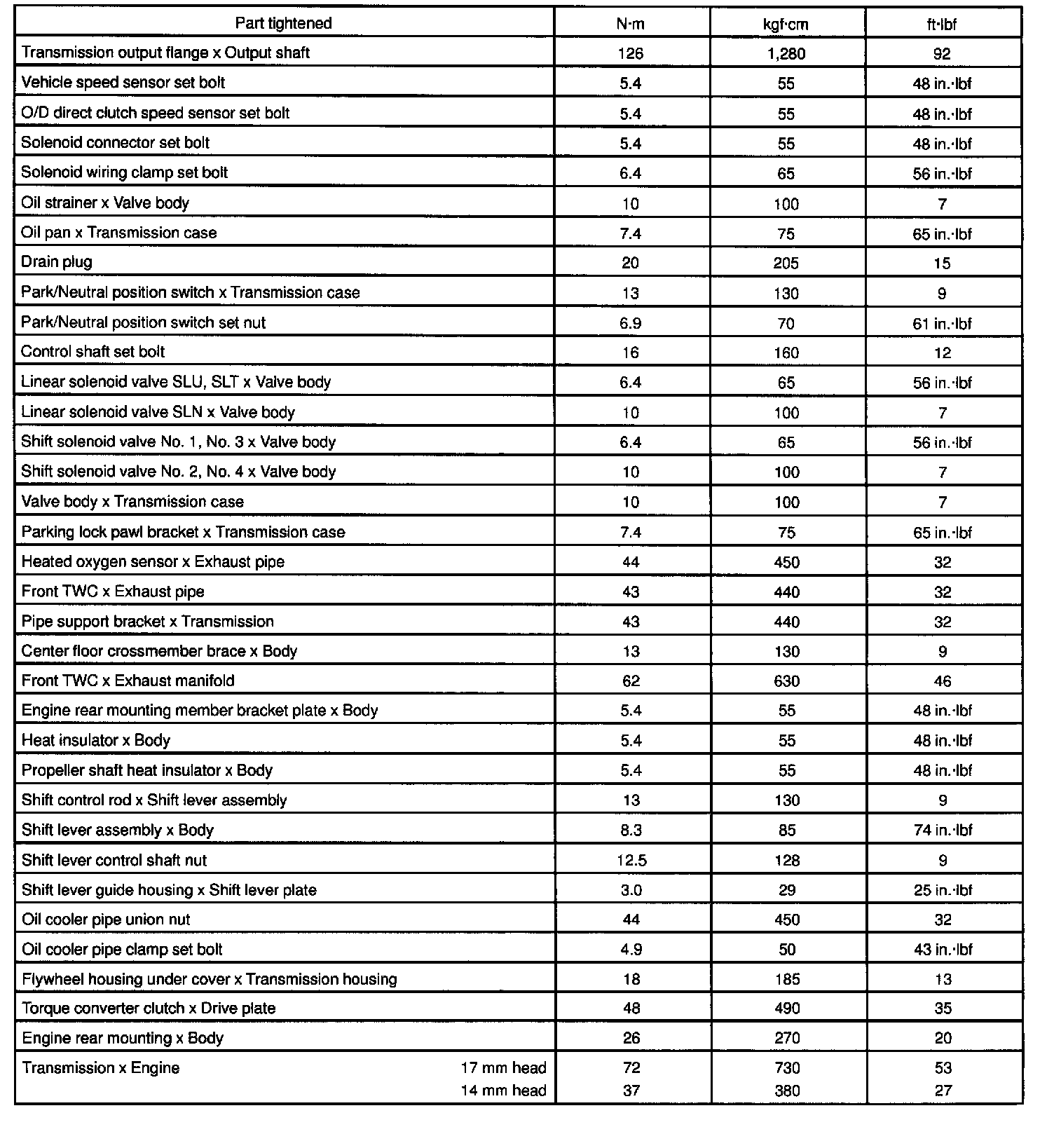

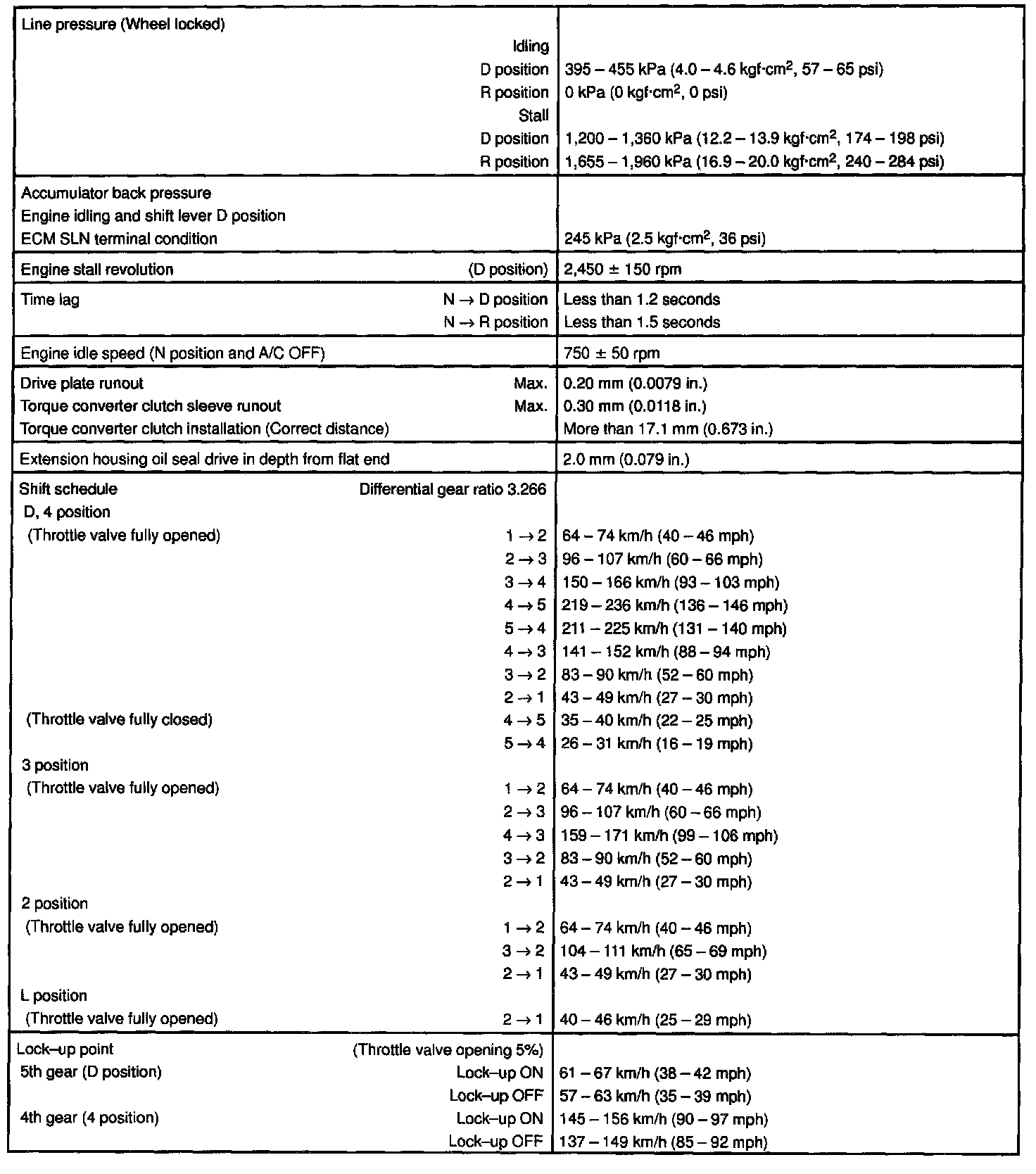

TECHNICAL DATA

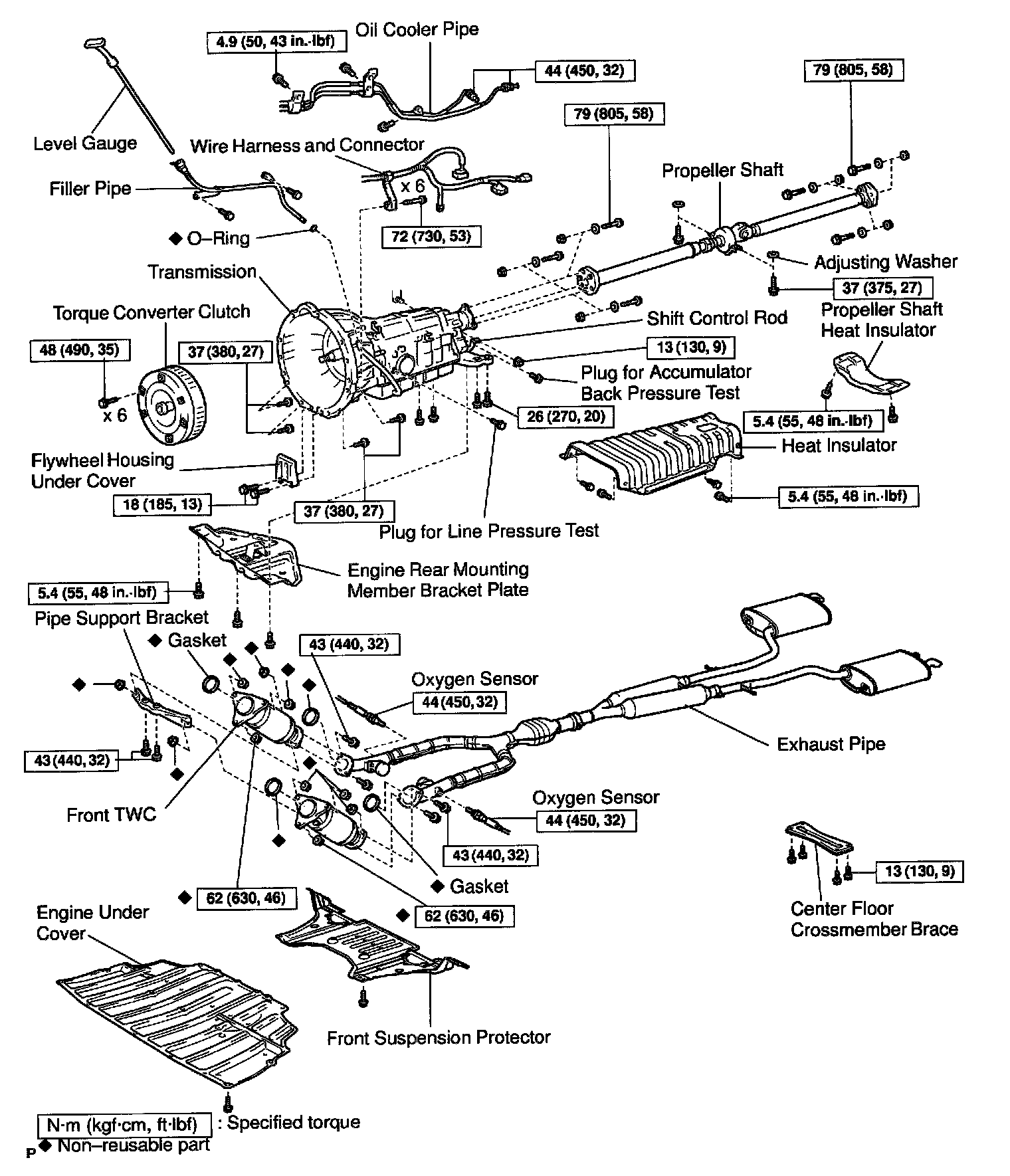

AUTOMATIC TRANSMISSION UNIT

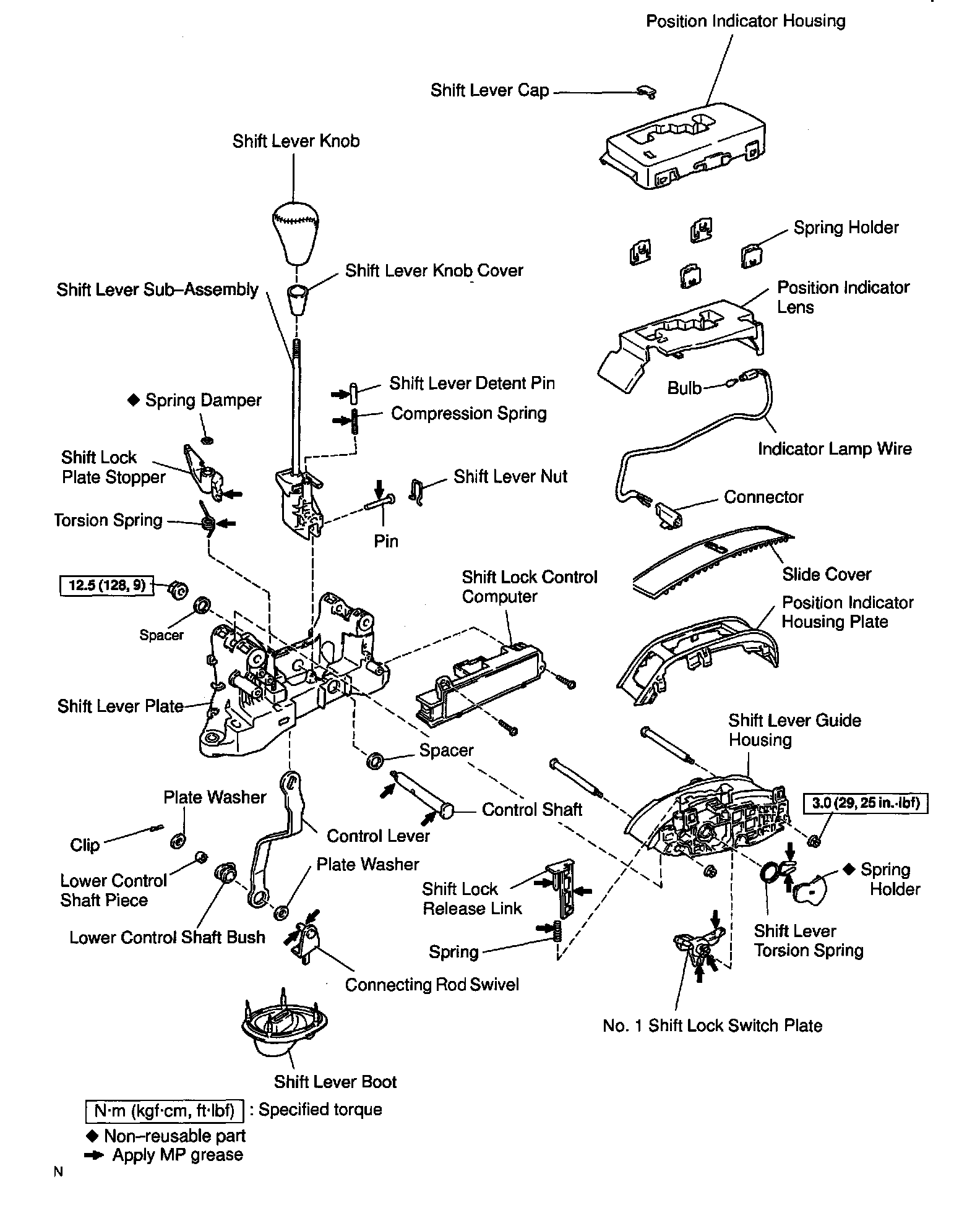

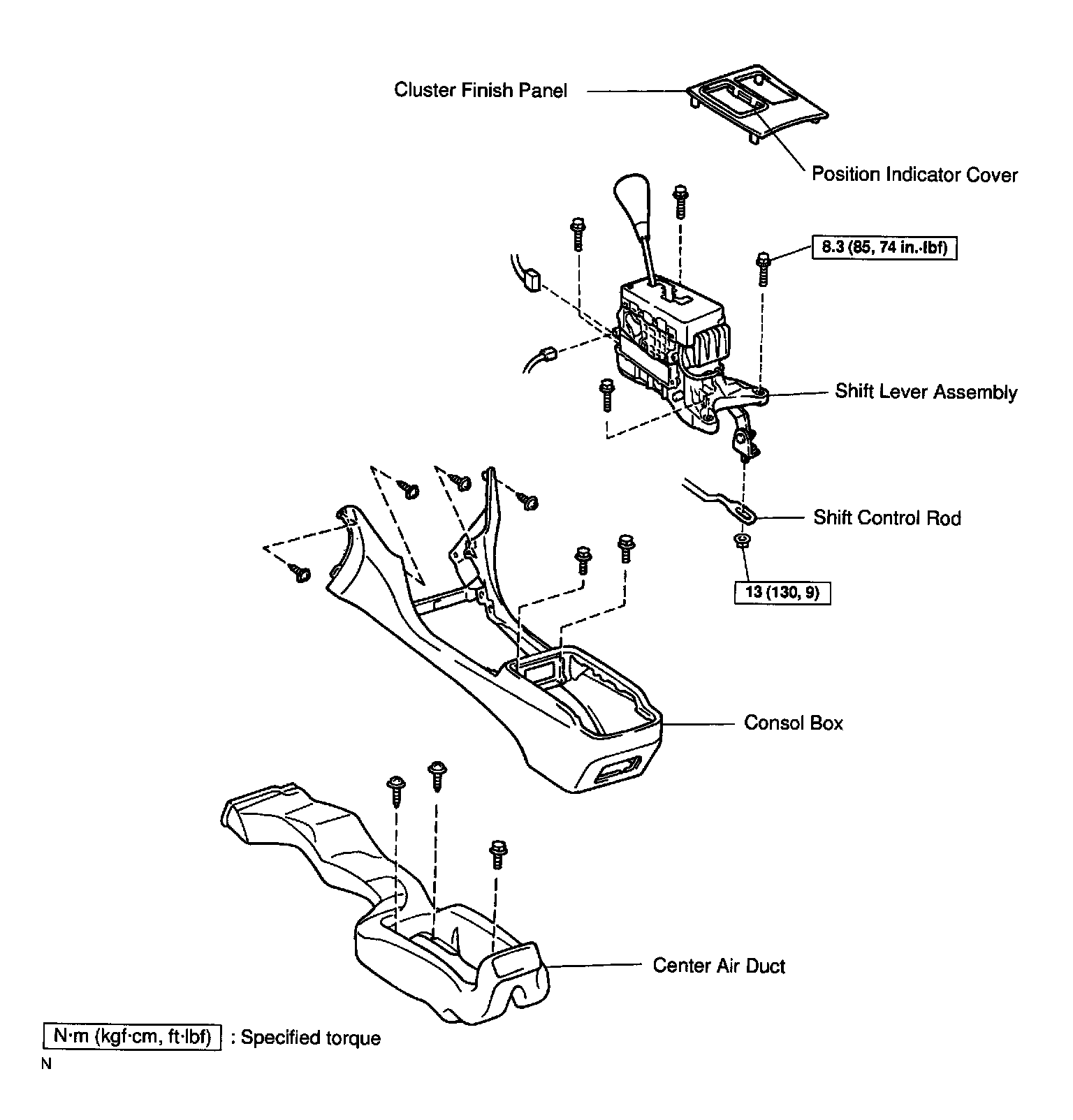

FLOOR SHIFT ASSEMBLY
