Parking Light Circuit

CIRCUIT DESCRIPTION

Front Light ECU receives turn signal switch information from the combination switch and lights the parking light.

Wiring Diagram:

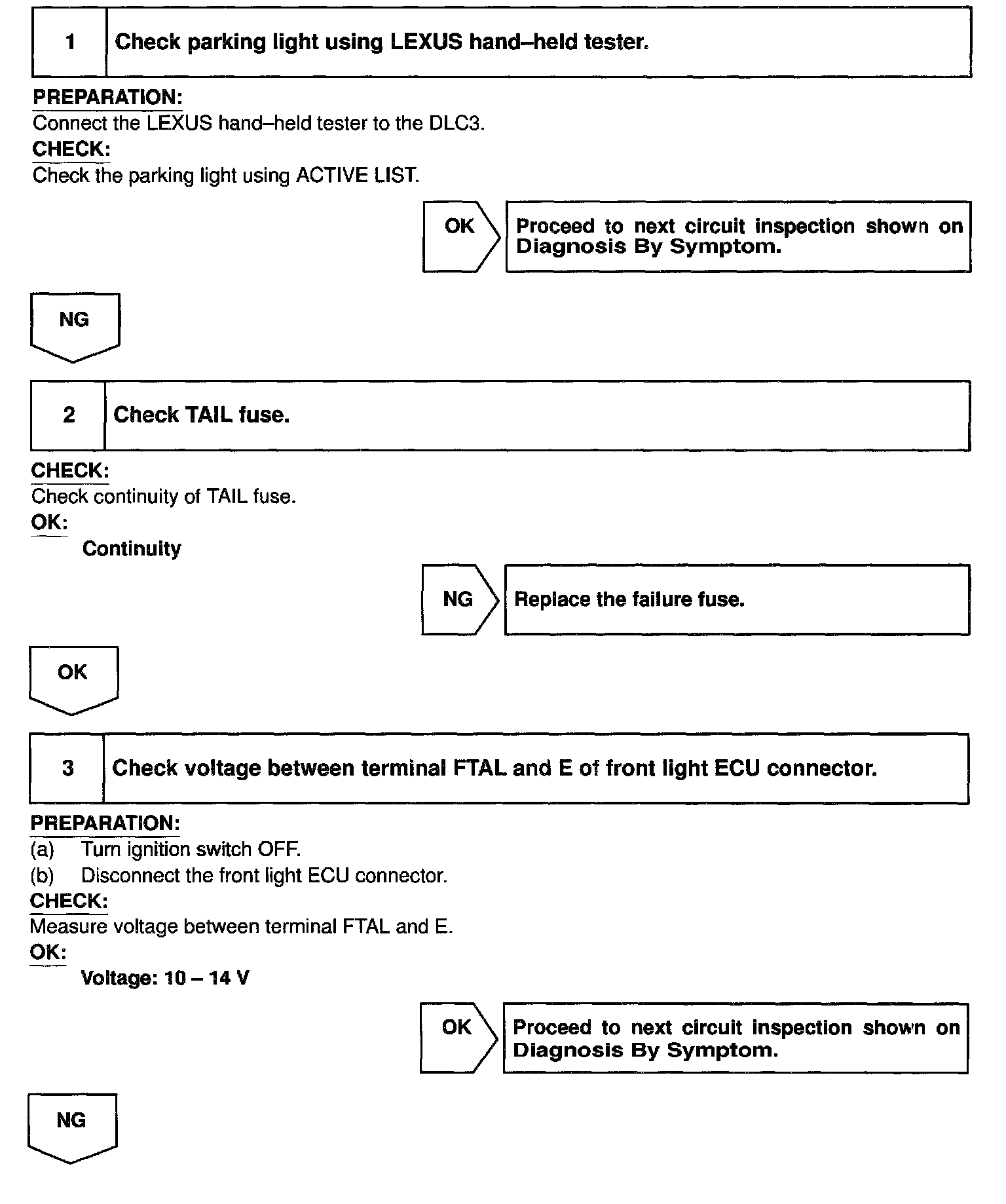

Steps 1 - 3:

Steps 4 - 5:

INSPECTION PROCEDURE
