Fuel Lid Opener Motor Circuit

CIRCUIT DESCRIPTION

This circuit opens the fuel lid when the ECU sends signals to the fuel lid opener switch.

Wiring Diagram:

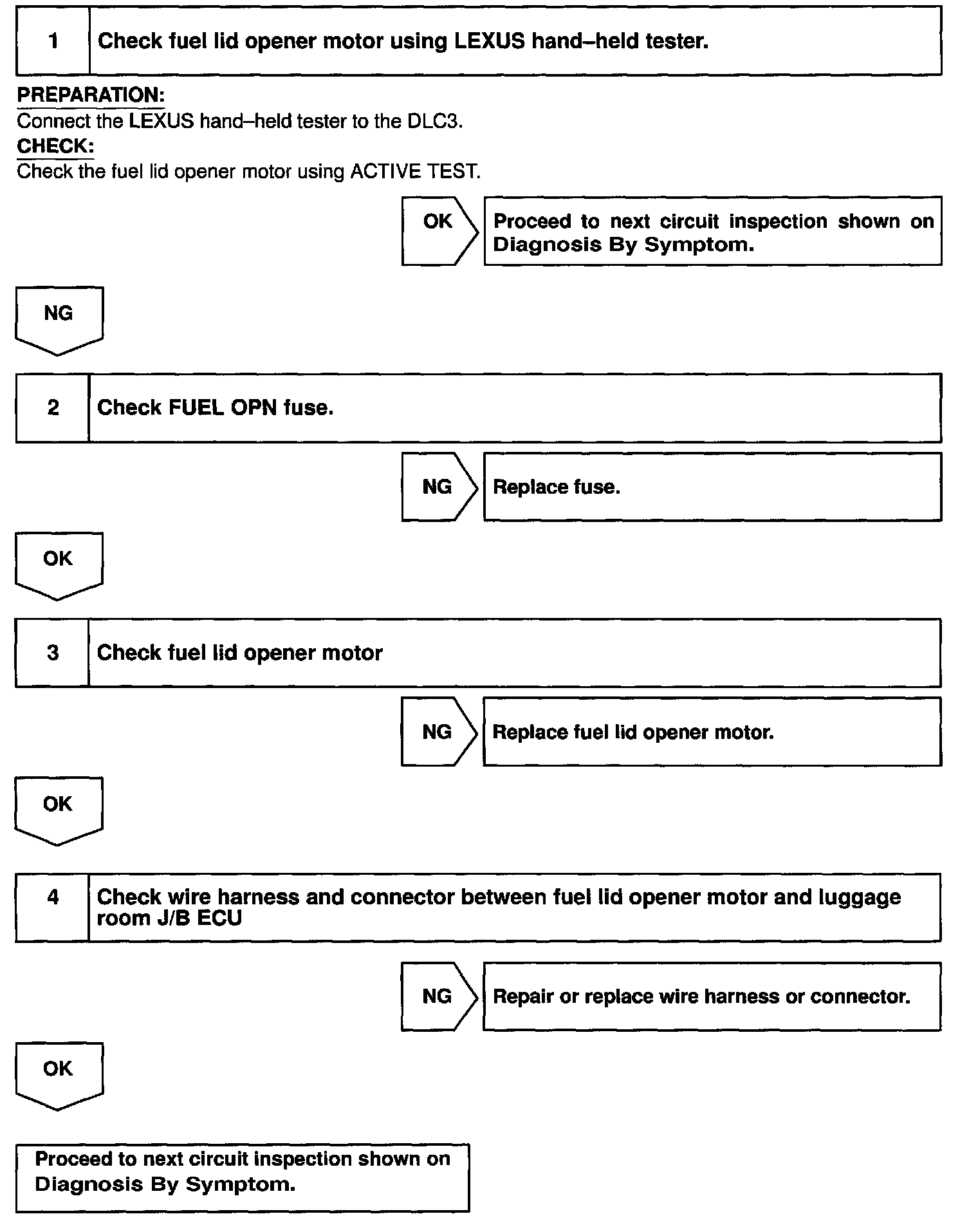

Steps 1 - 4:

INSPECTION PROCEDURE
