Cylinder Head Assembly

CYLINDER HEAD

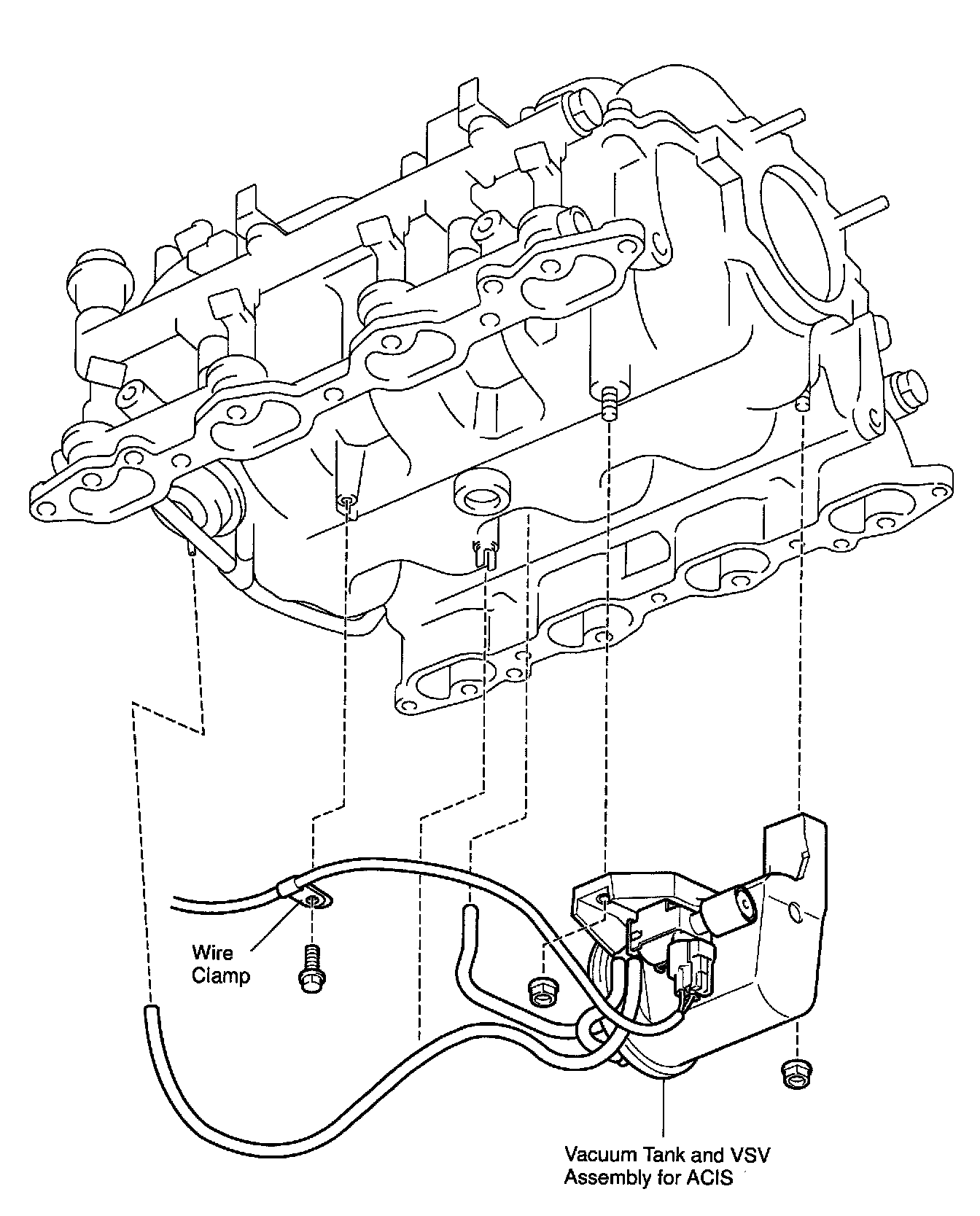

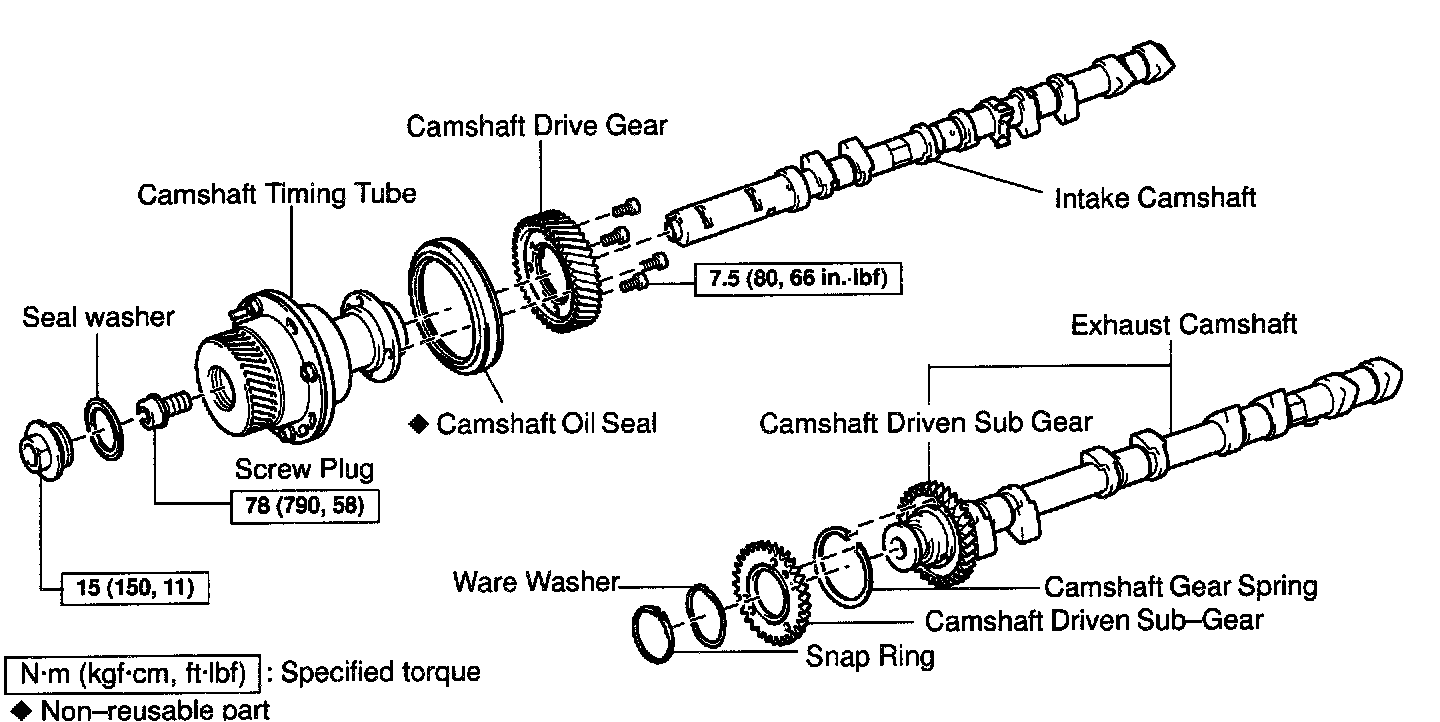

Part 1 of 9

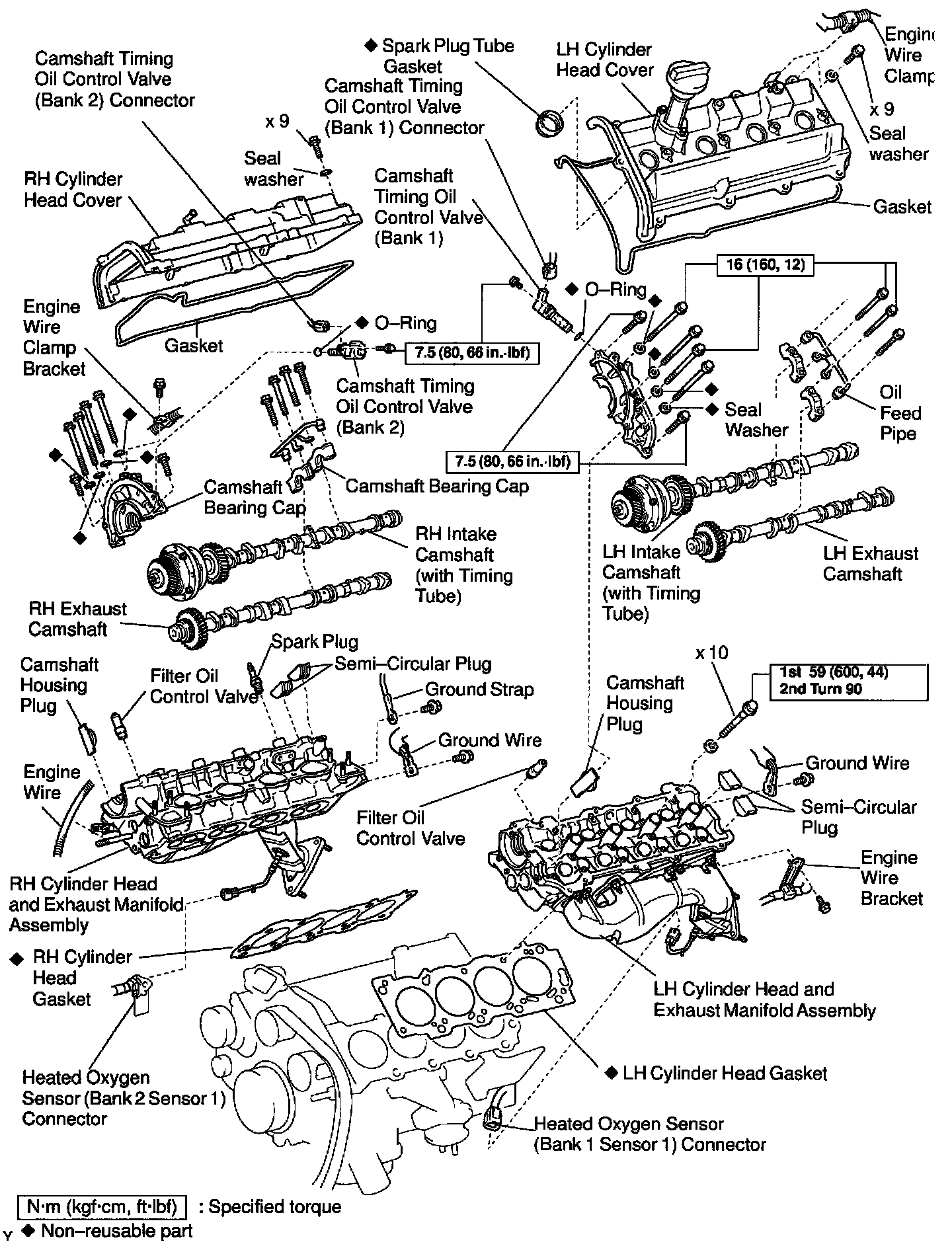

Part 2 of 9

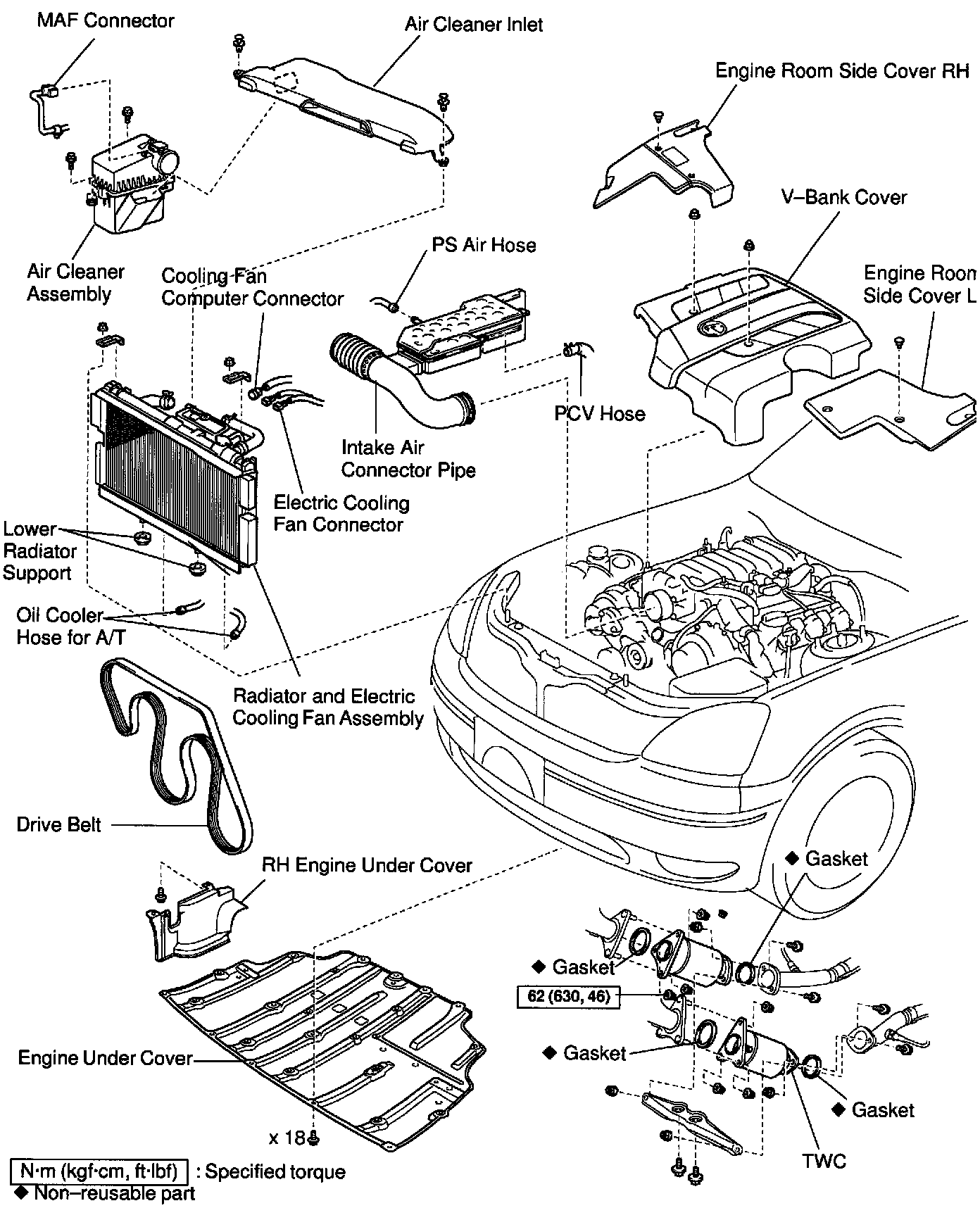

Part 3 of 9

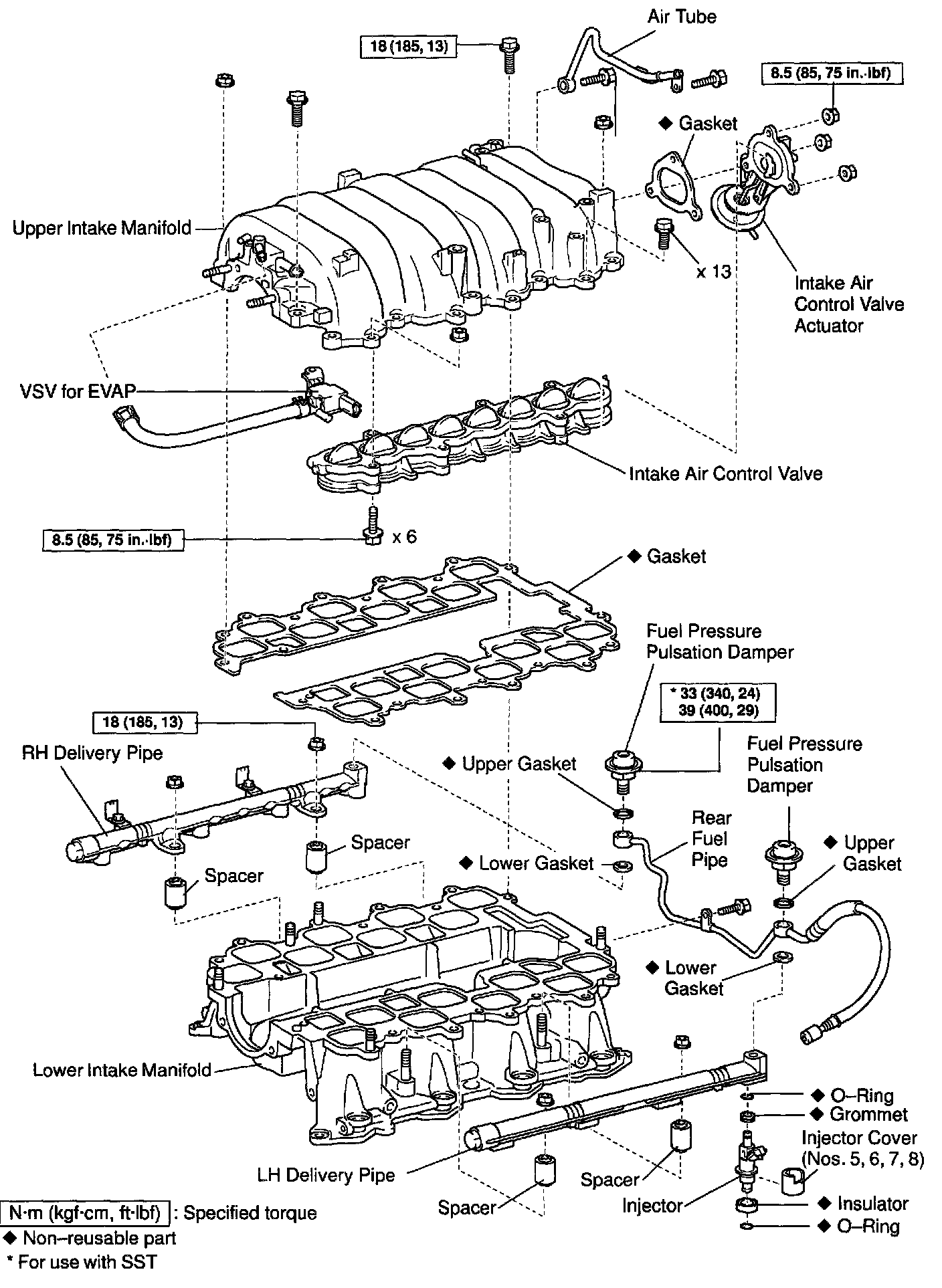

Part 4 of 9

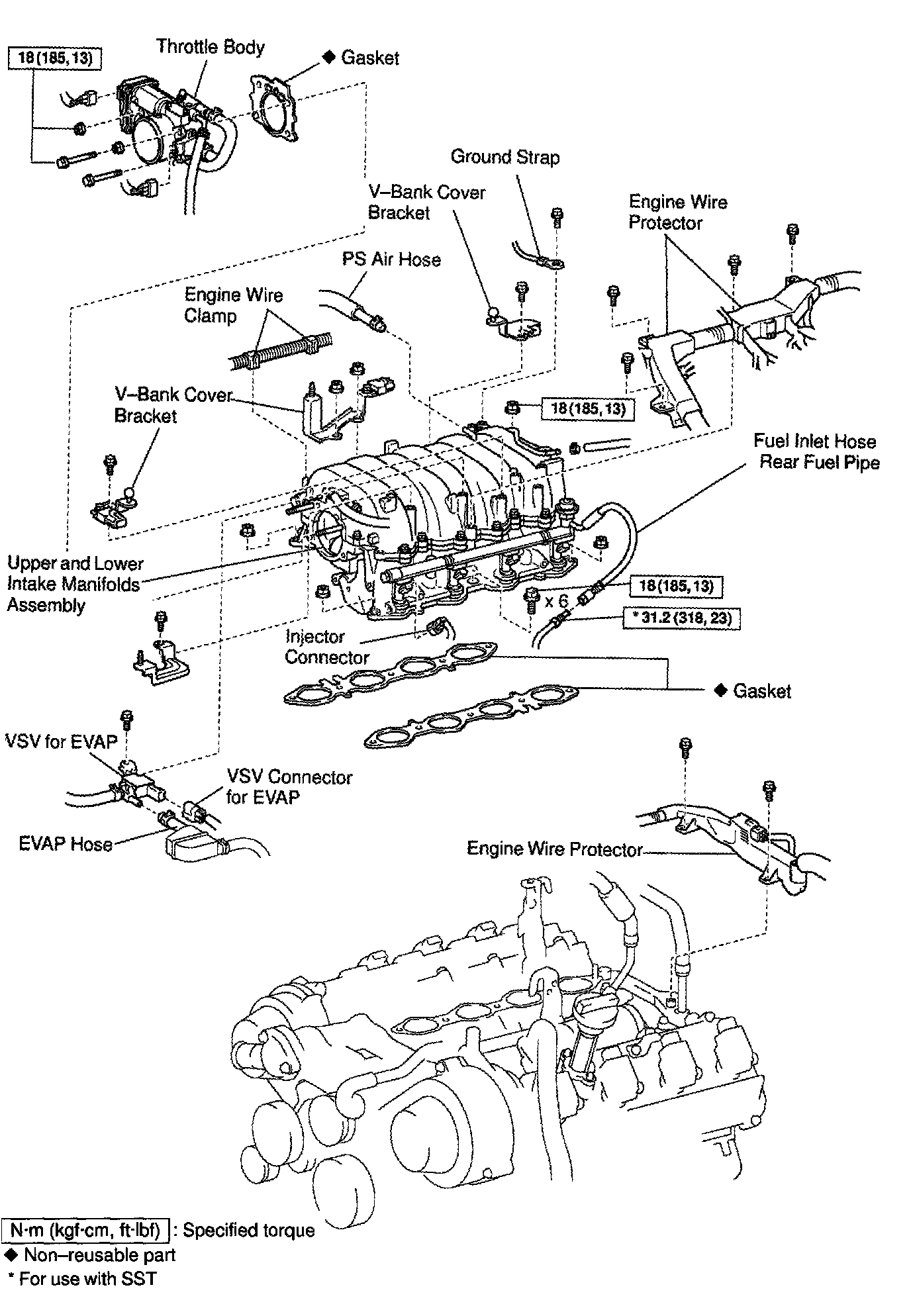

Part 5 of 9

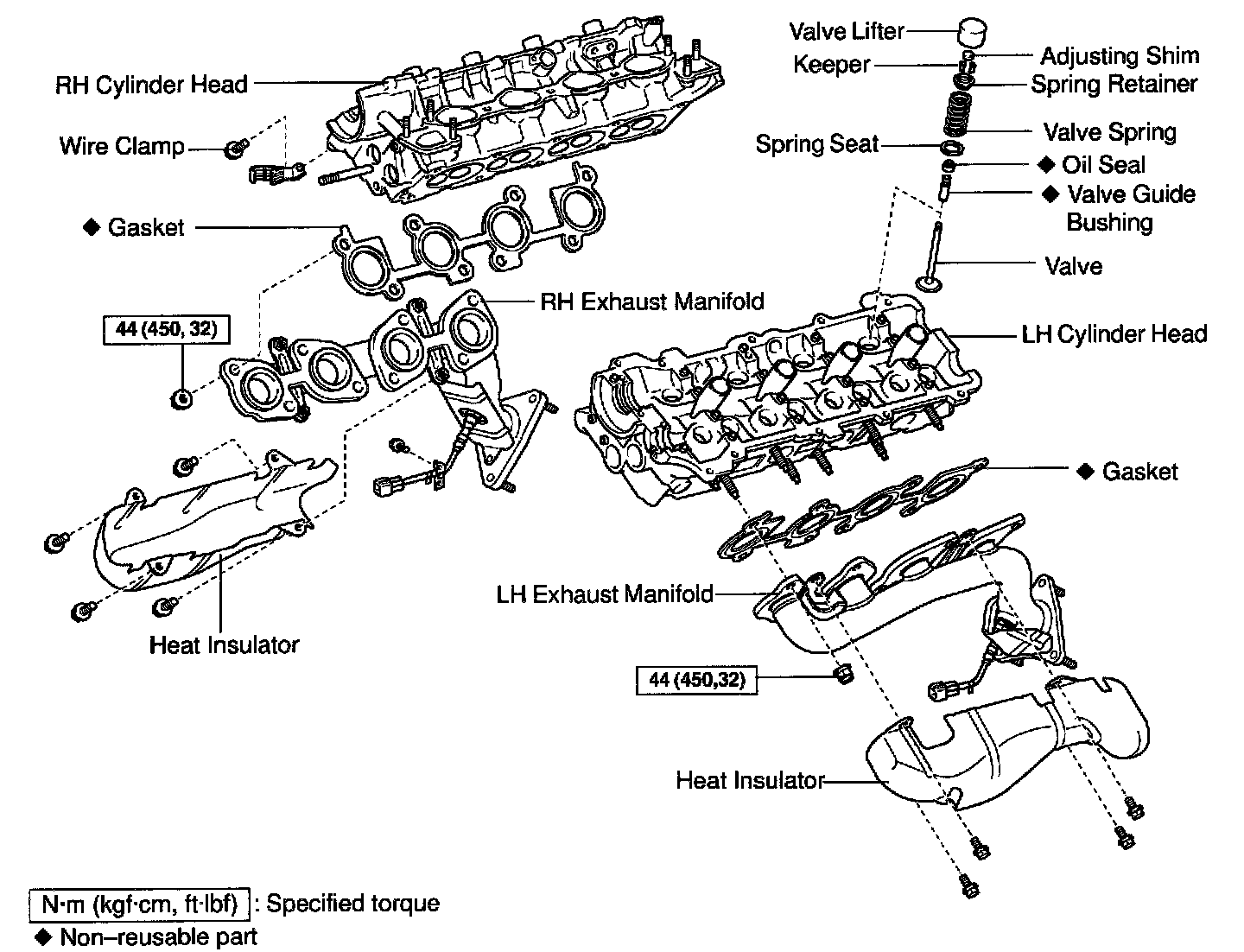

Part 6 of 9

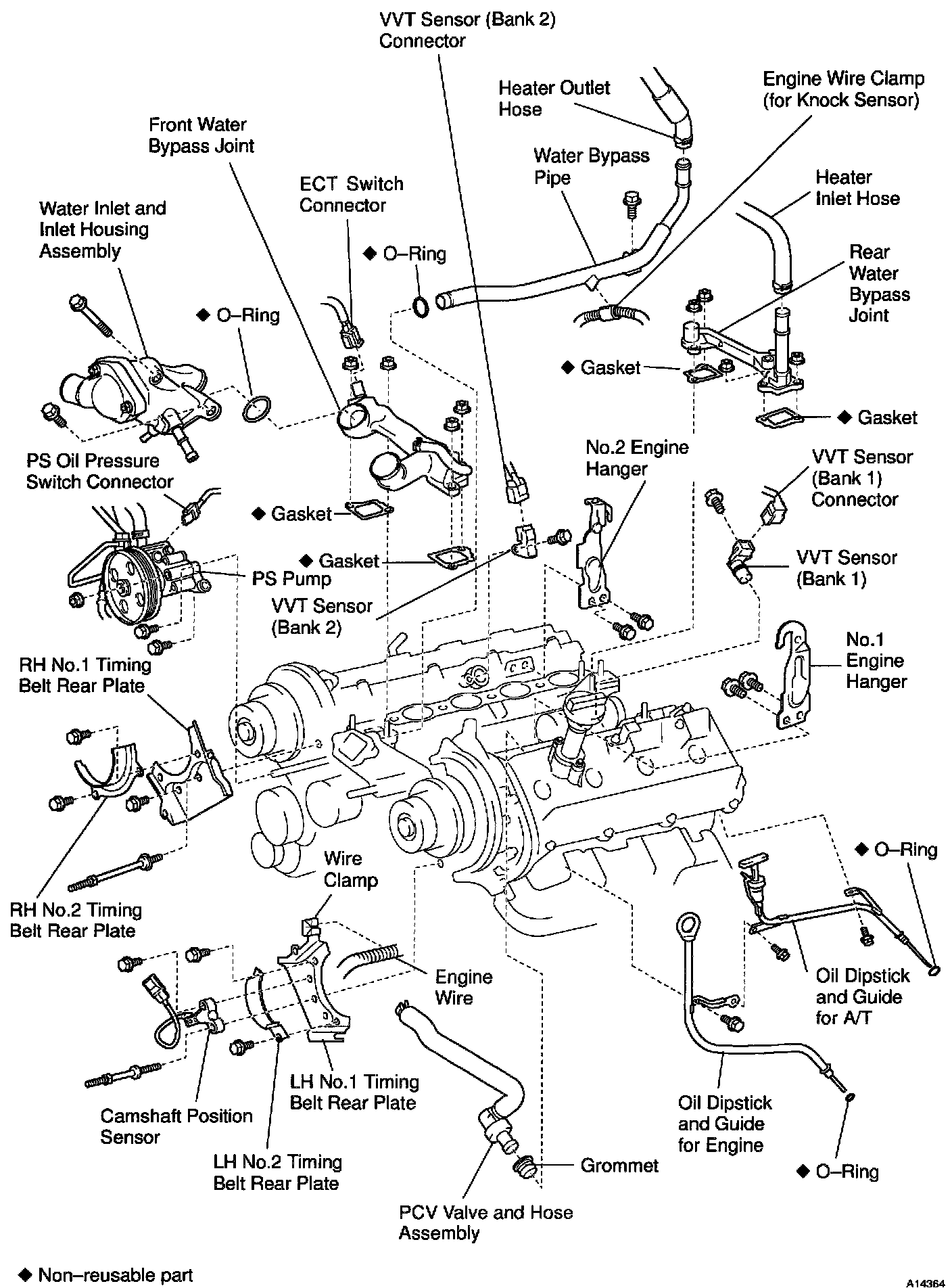

Part 7 of 9

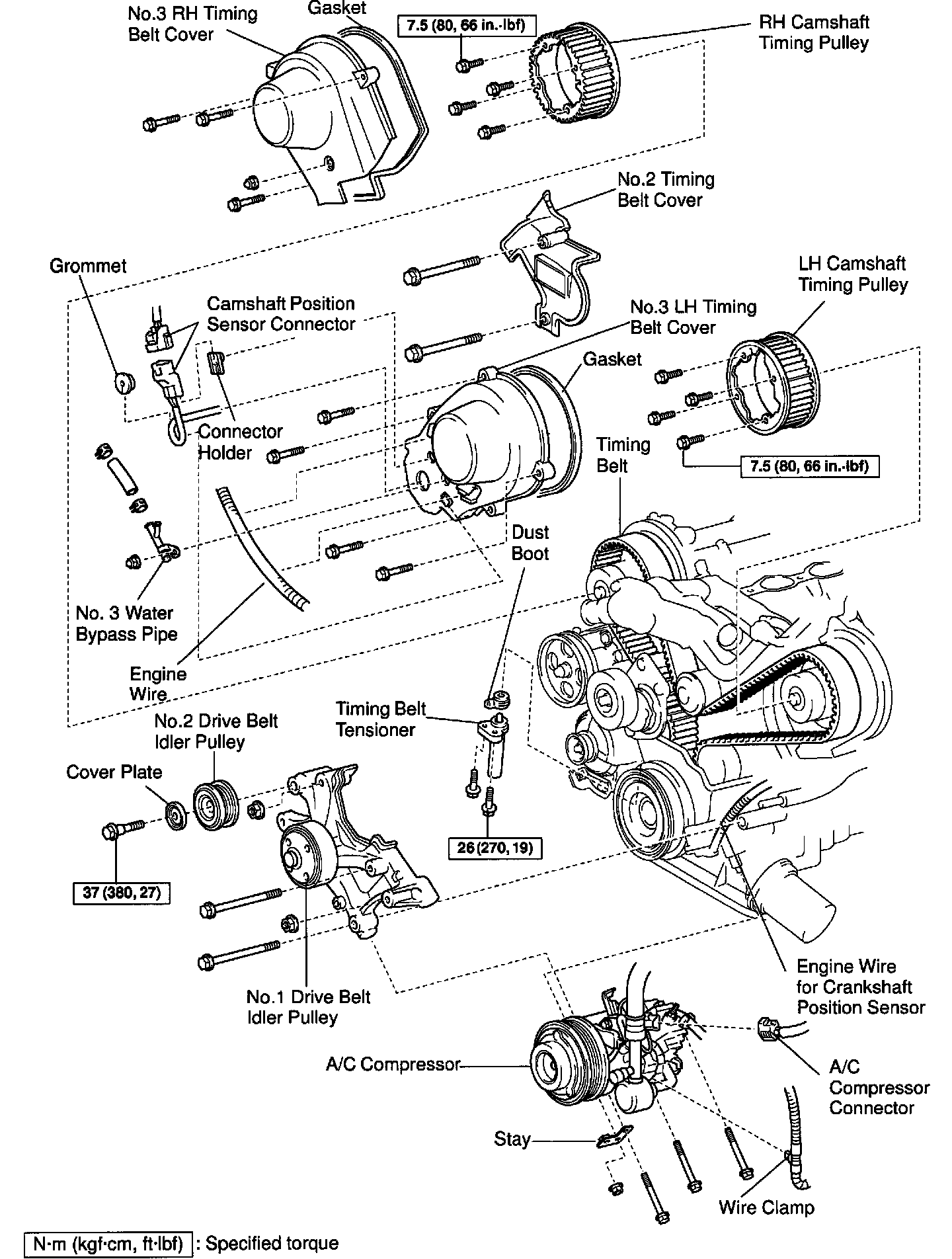

Part 8 of 9





Part 9 of 9
