Lexus
>>
2001
>>
GS 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Engine Compartment
Engine Compartment

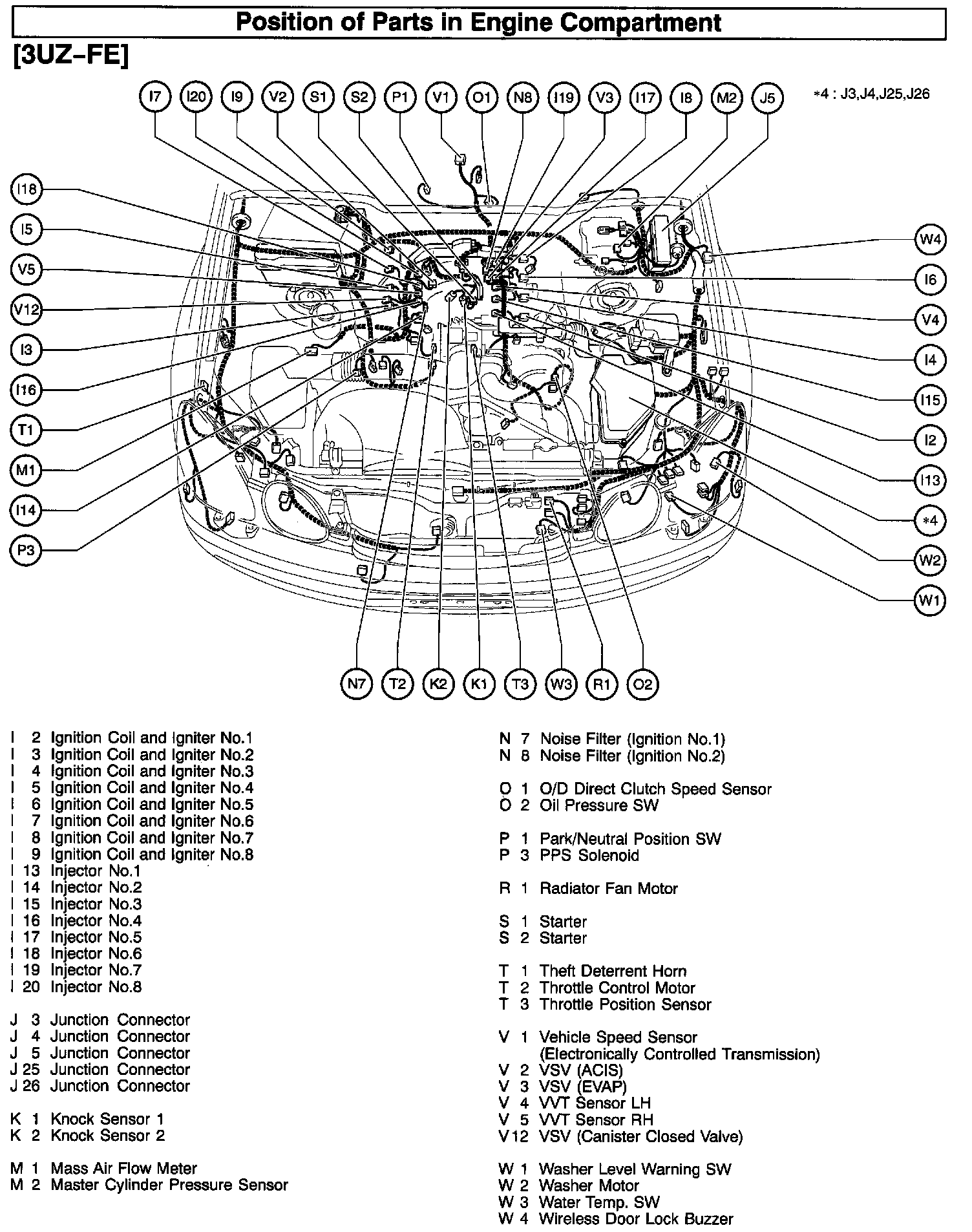

Position Of Parts In Engine Compartment (Part 1):

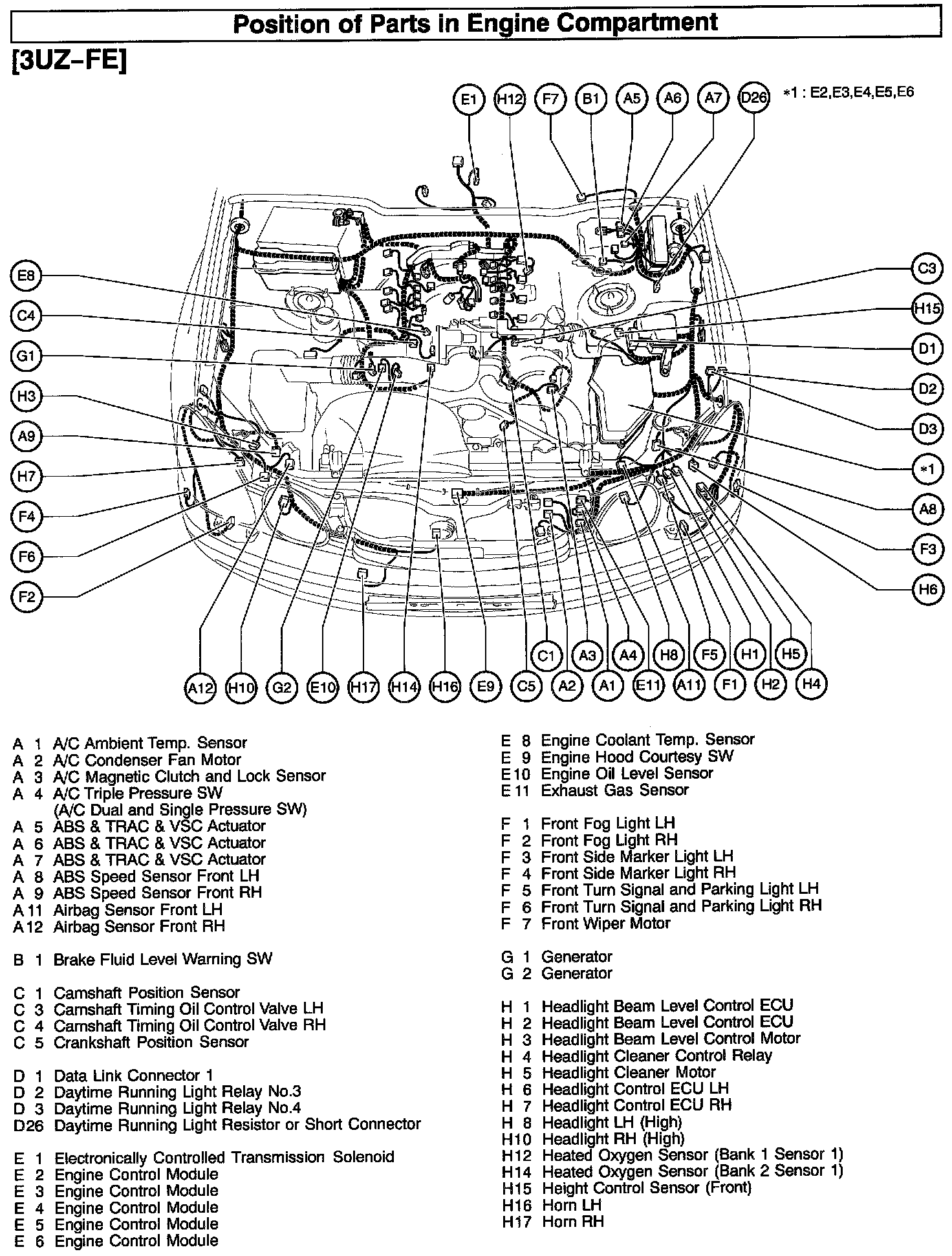

Position Of Parts In Engine Compartment (Part 2):

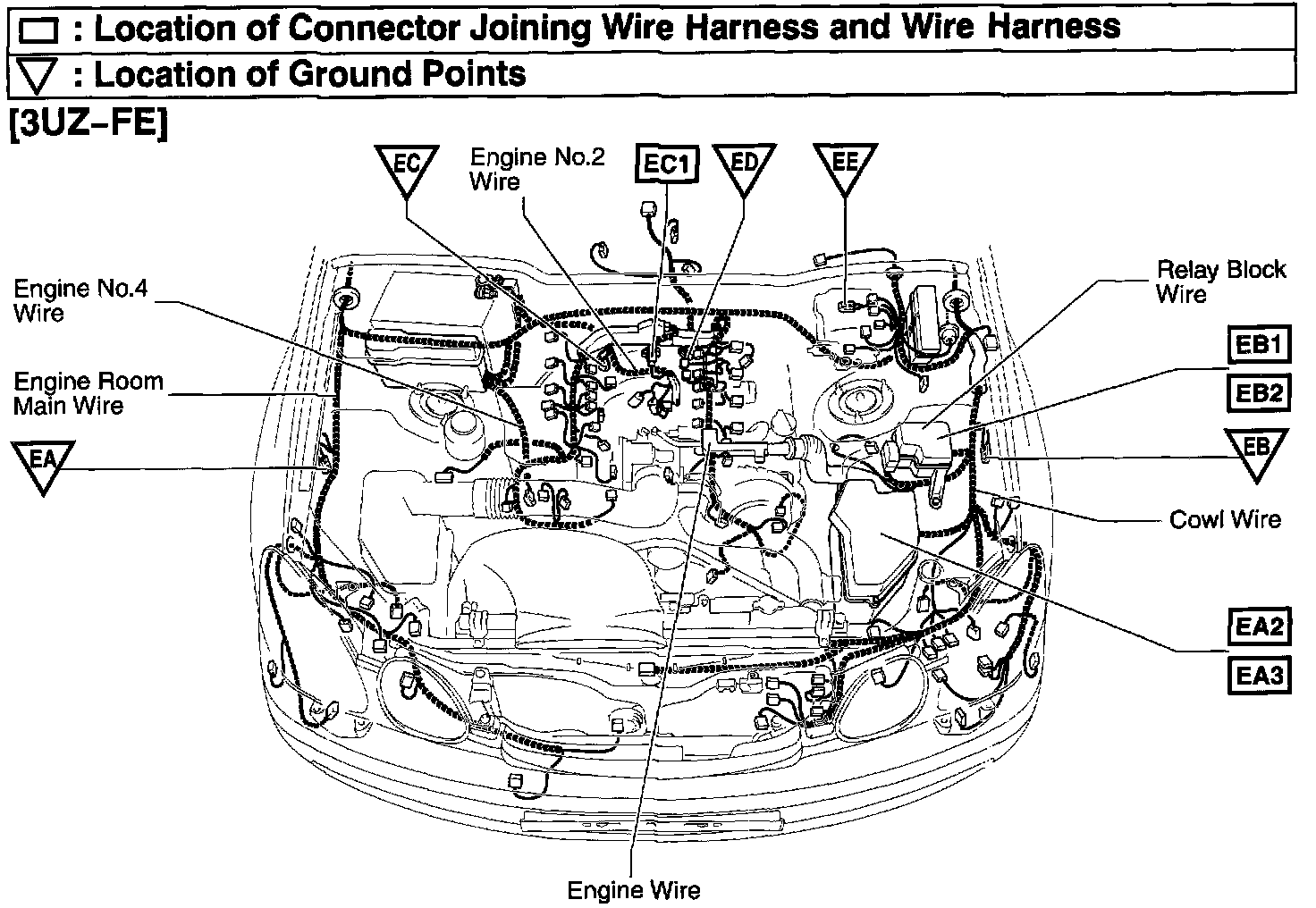

Engine Compartment:
