Overdrive Brake: Reassembly

  1. To reassemble, reverse disassembly procedure. Coat seal rings with ATF prior to installation. DO NOT over expand seal rings during piston installation. Ensure seal rings move smoothly after installation.
  2. Install NEW "O" rings on OD brake piston. Use care not to damage "O" rings during piston installation. Install snap ring in support and ensure end of snap ring is not aligned with cut-out portion of support.
  3. Ensure tabs on all races are aligned with areas on support. Coat races and thrust bearings with petroleum jelly prior to installation. Place support on direct clutch assembly, and apply air pressure to piston supply port. Ensure piston operates smoothly in support. See Fig 1.

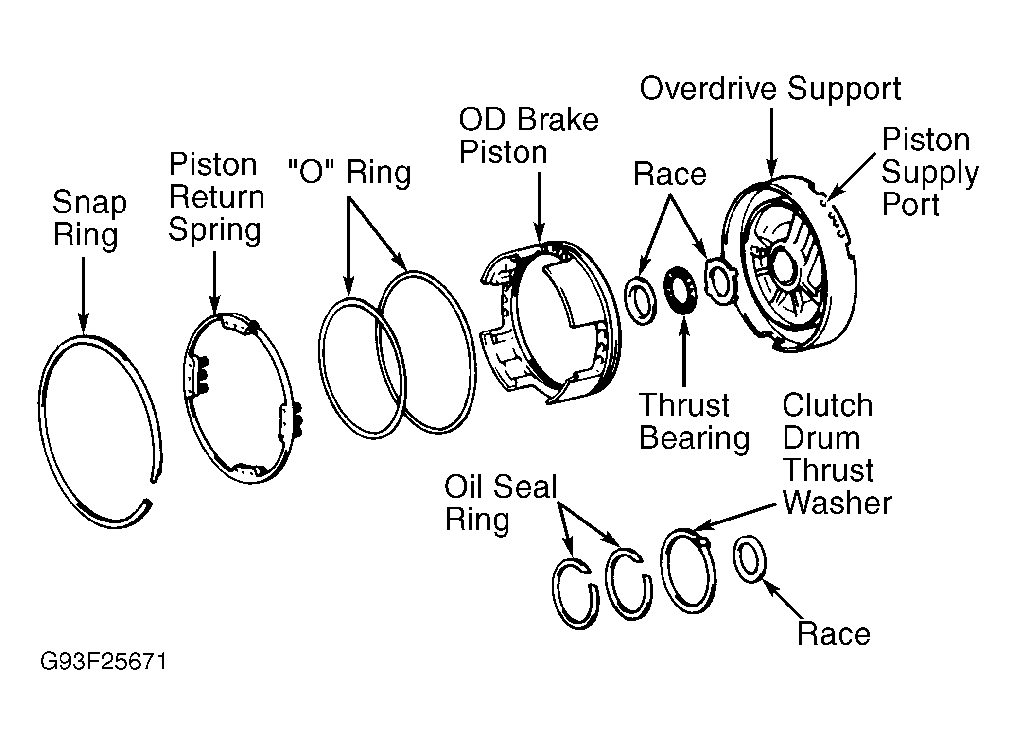

Fig 1: Exploded View Of Overdrive Support & Brake
G93F25671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
