Home >> Lexus >> 2000 >> RX 300 FWD V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

Data Link Connector: Locations

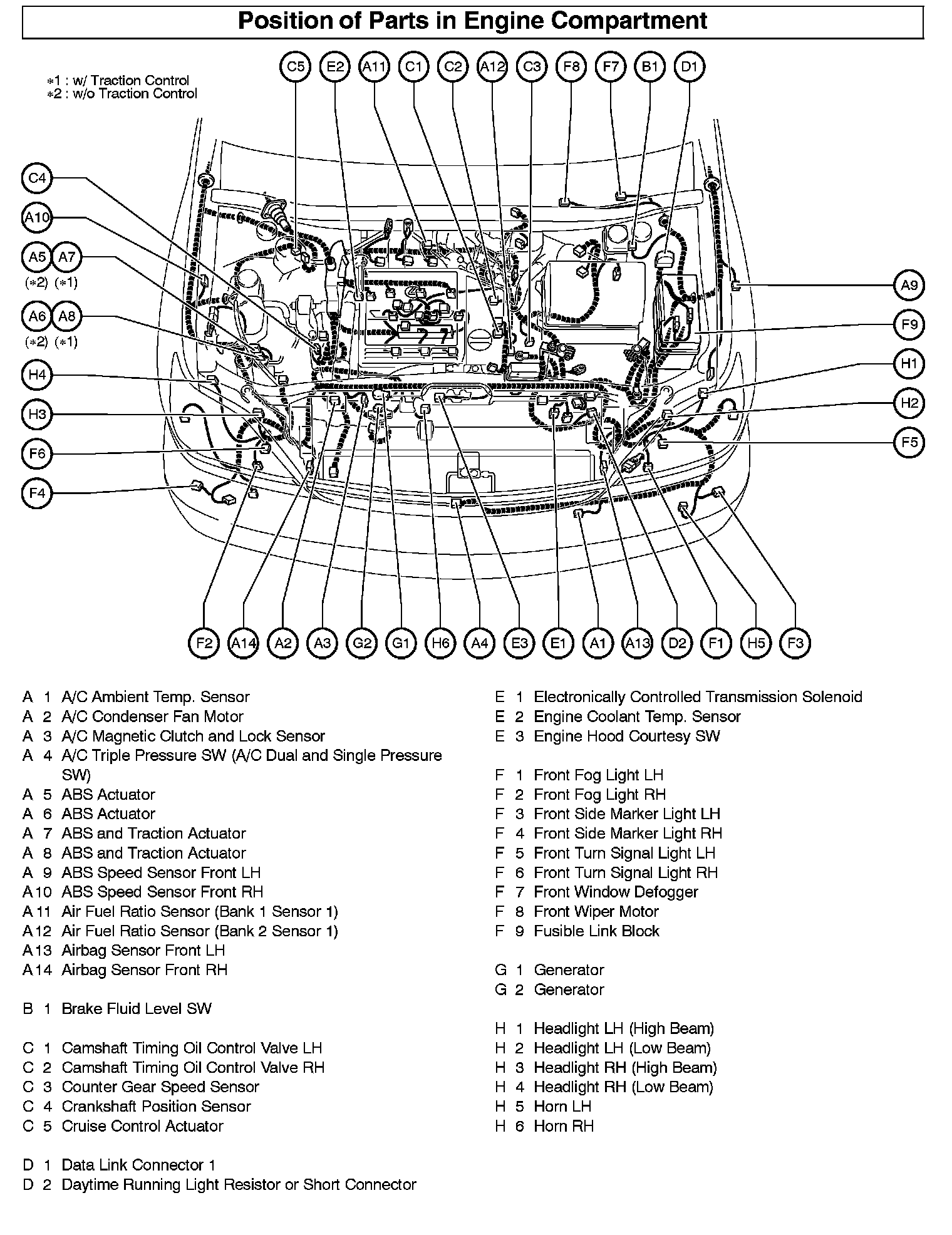

Position Of Parts In Engine Compartment (With And Without Traction Control):

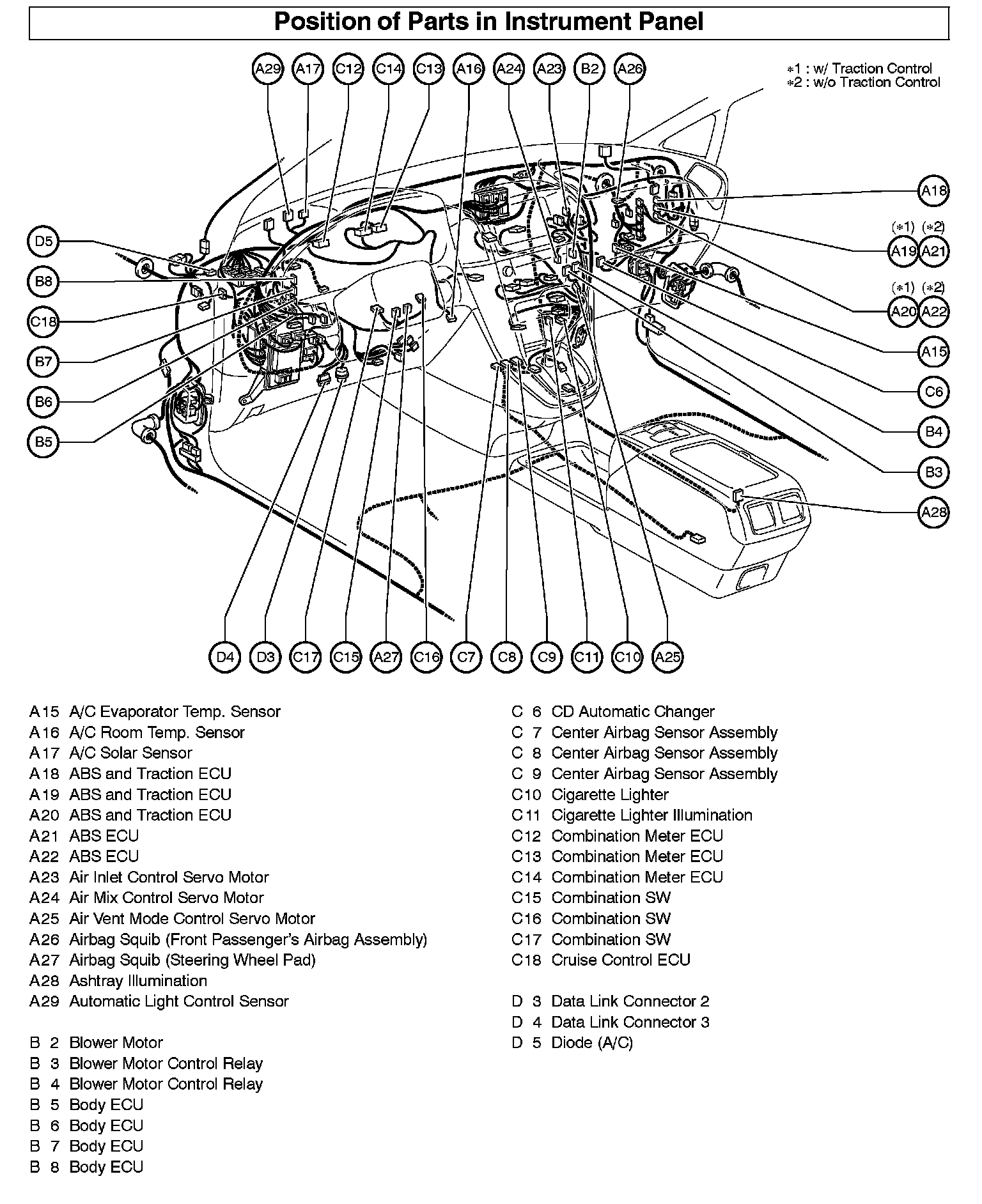

Position Of Parts In instrument Panel (With And Without Traction Control):
