Camshaft Position Sensor: Service and Repair

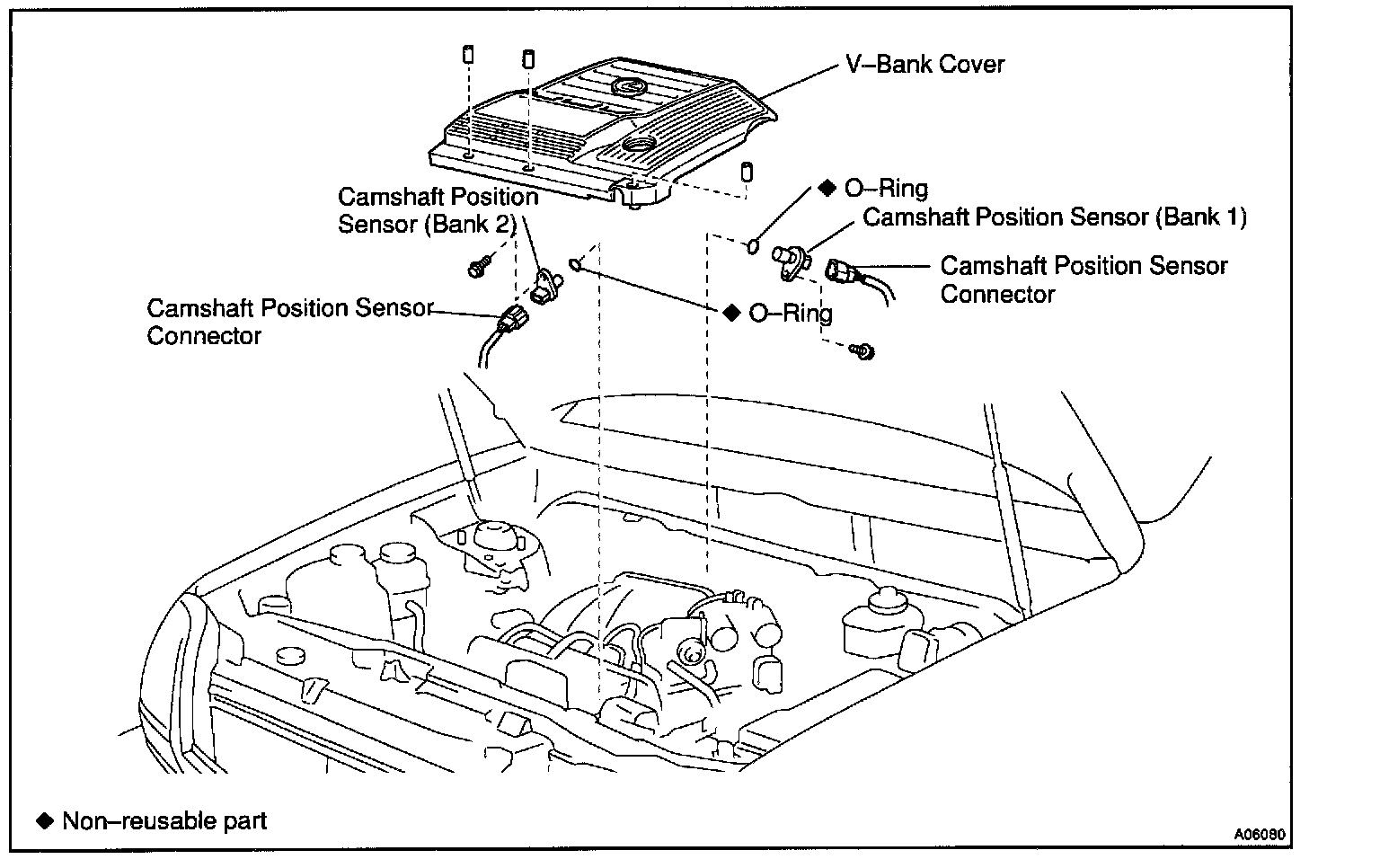

COMPONENTS

REMOVAL




a. Disconnect the camshaft position sensor connector.
b. Remove the bolt and camshaft position sensor.
Torque: 8 Nm (80 kg.cm, 69 in.lb)

INSTALLATION
Installation is in the reverse order of removal.
