Home >> Lexus >> 2000 >> RX 300 FWD V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram

System Diagram

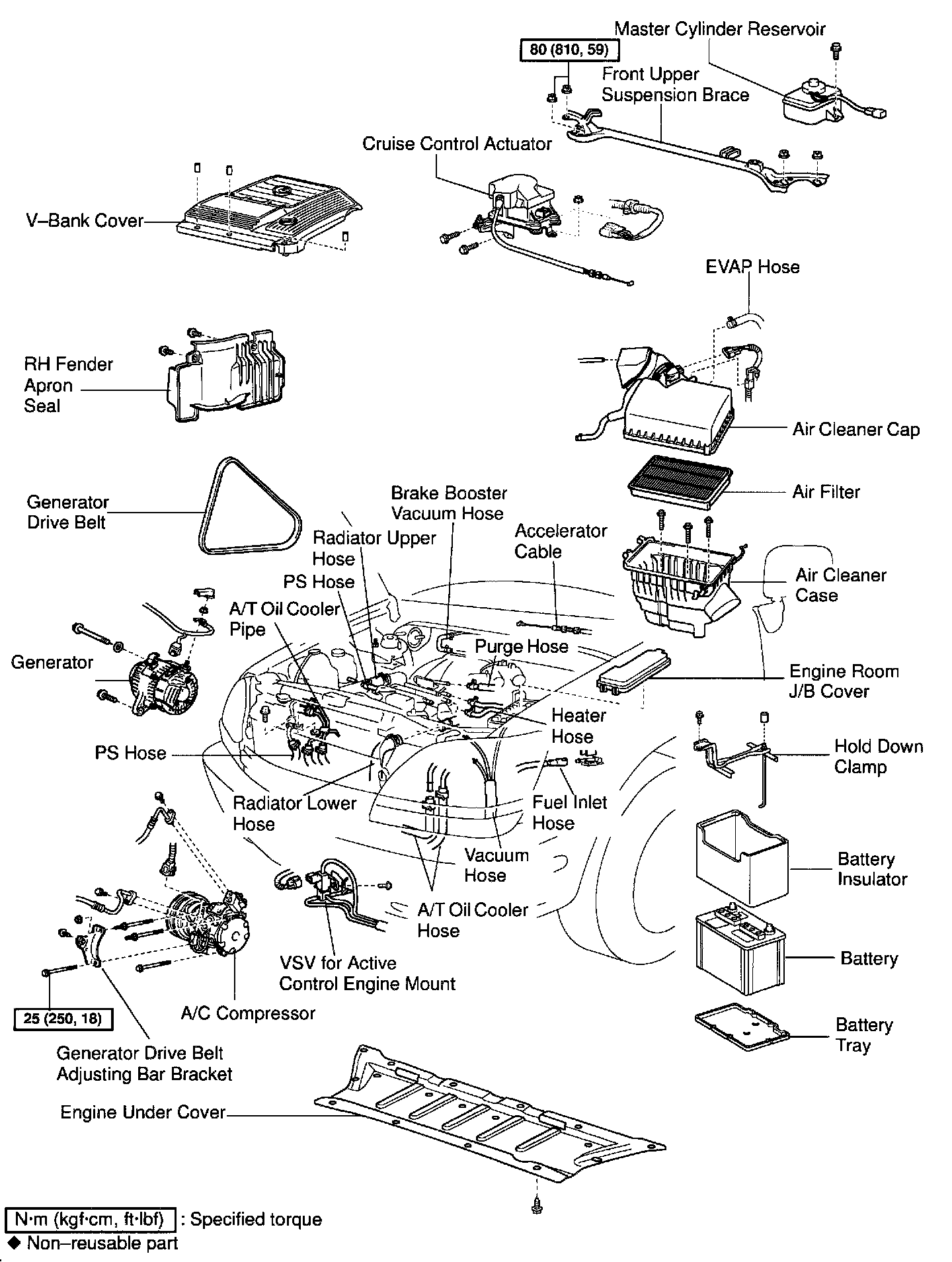

UNDERHOOD VIEW

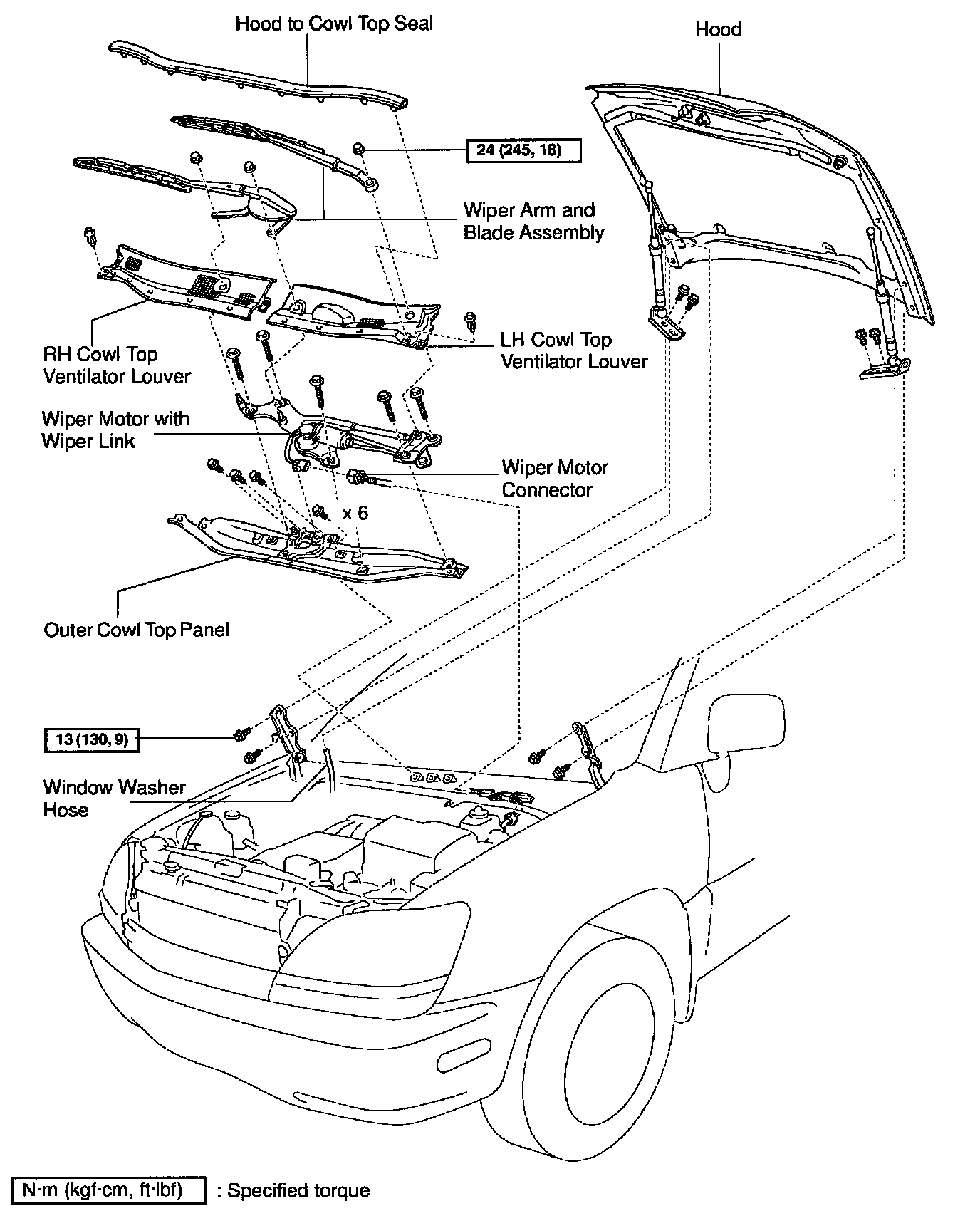

Part 1 of 3

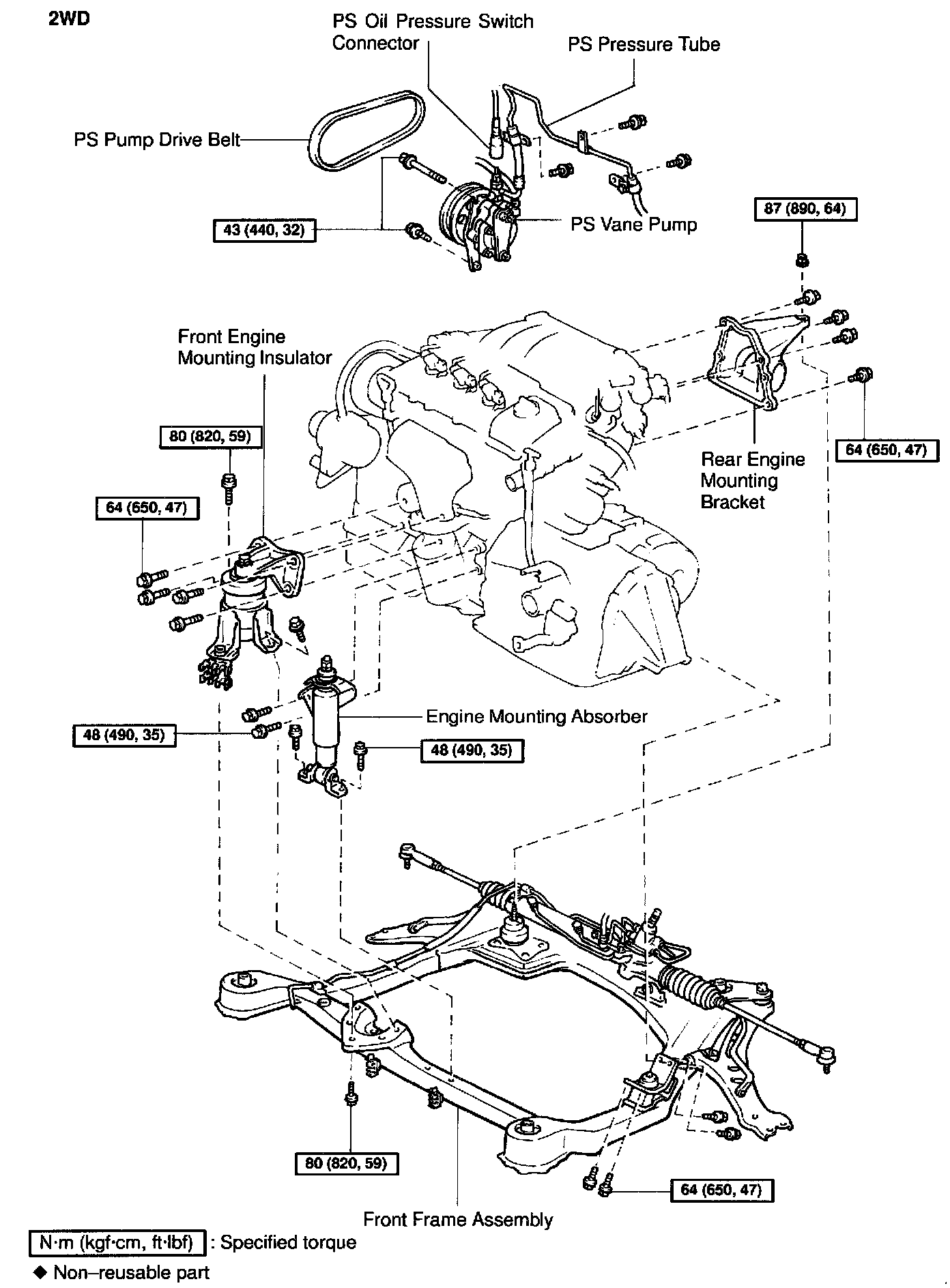

Part 2 of 3





Part 3 of 3

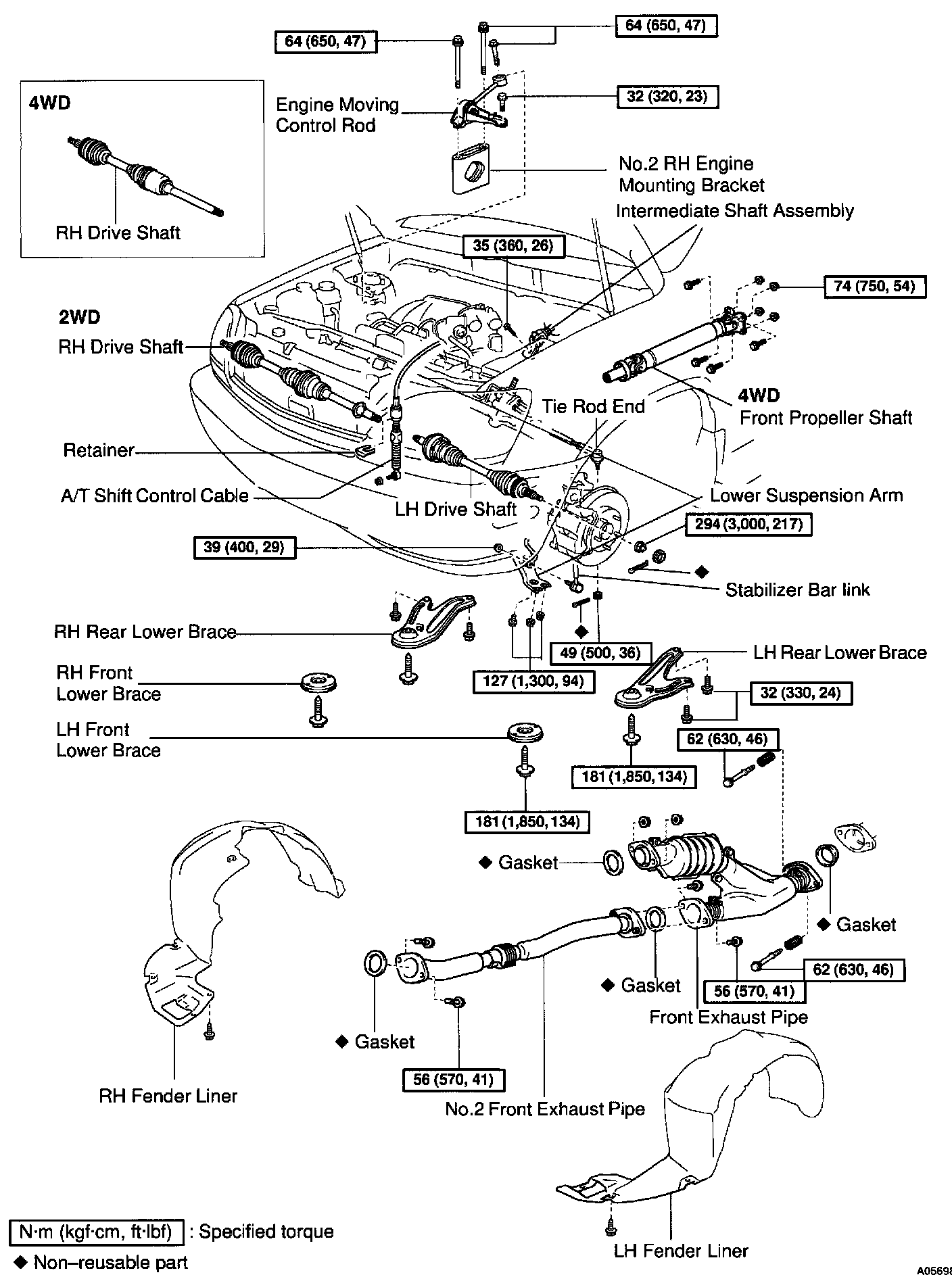

ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS
