Home >> Lexus >> 2000 >> LX 470 >> Repair and Diagnosis >> Drivelines & Axles >> Front Axle Shafts >> Identification

Front Axle Shafts: Identification

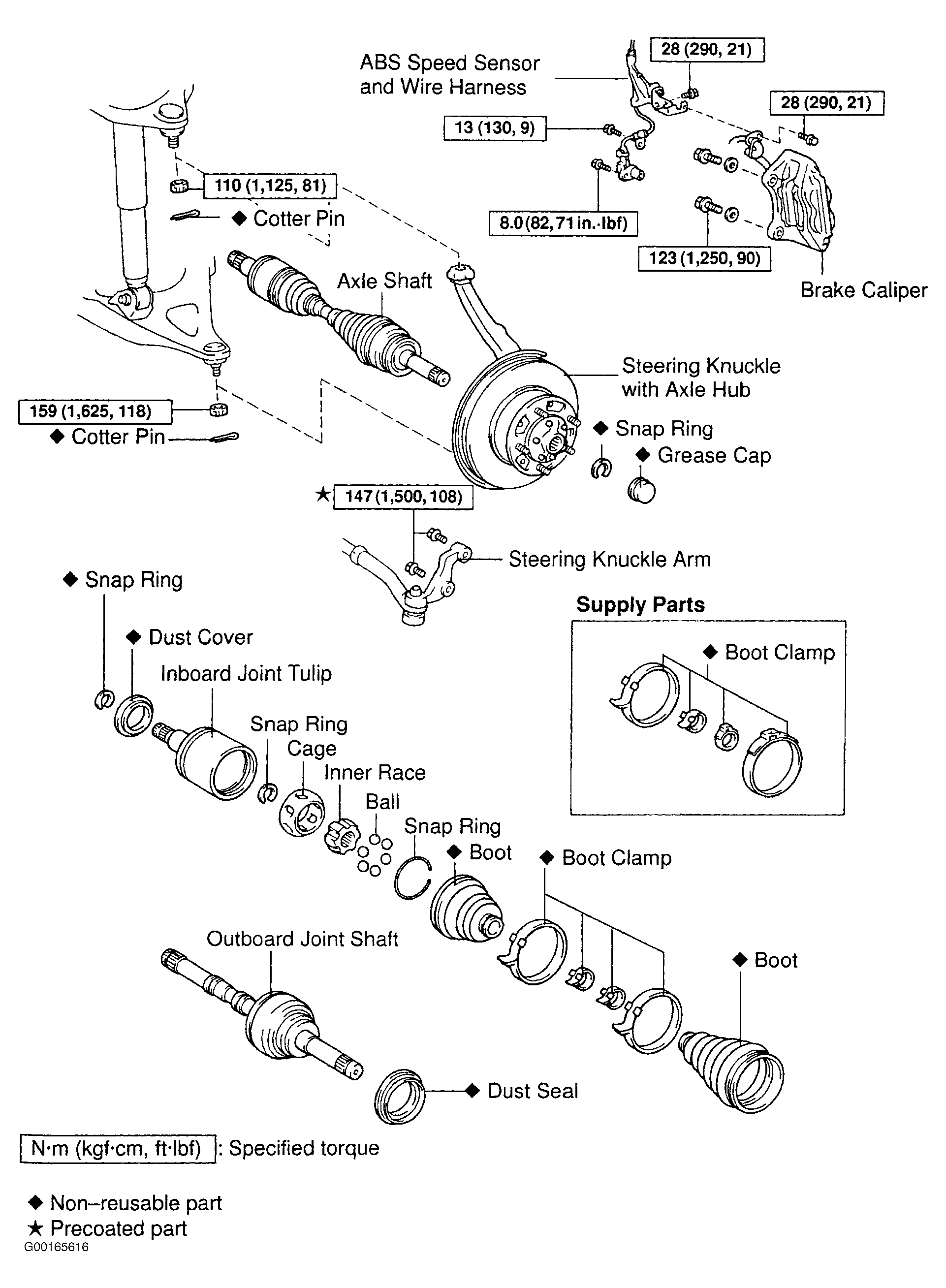

Fig 1: Exploded View Of Front Axle Shaft Assembly

G00165616

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
