Home >> Lexus >> 2000 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Locations >> Component Locations >> Power Window Control System

Power Window Control System




PARTS LOCATION

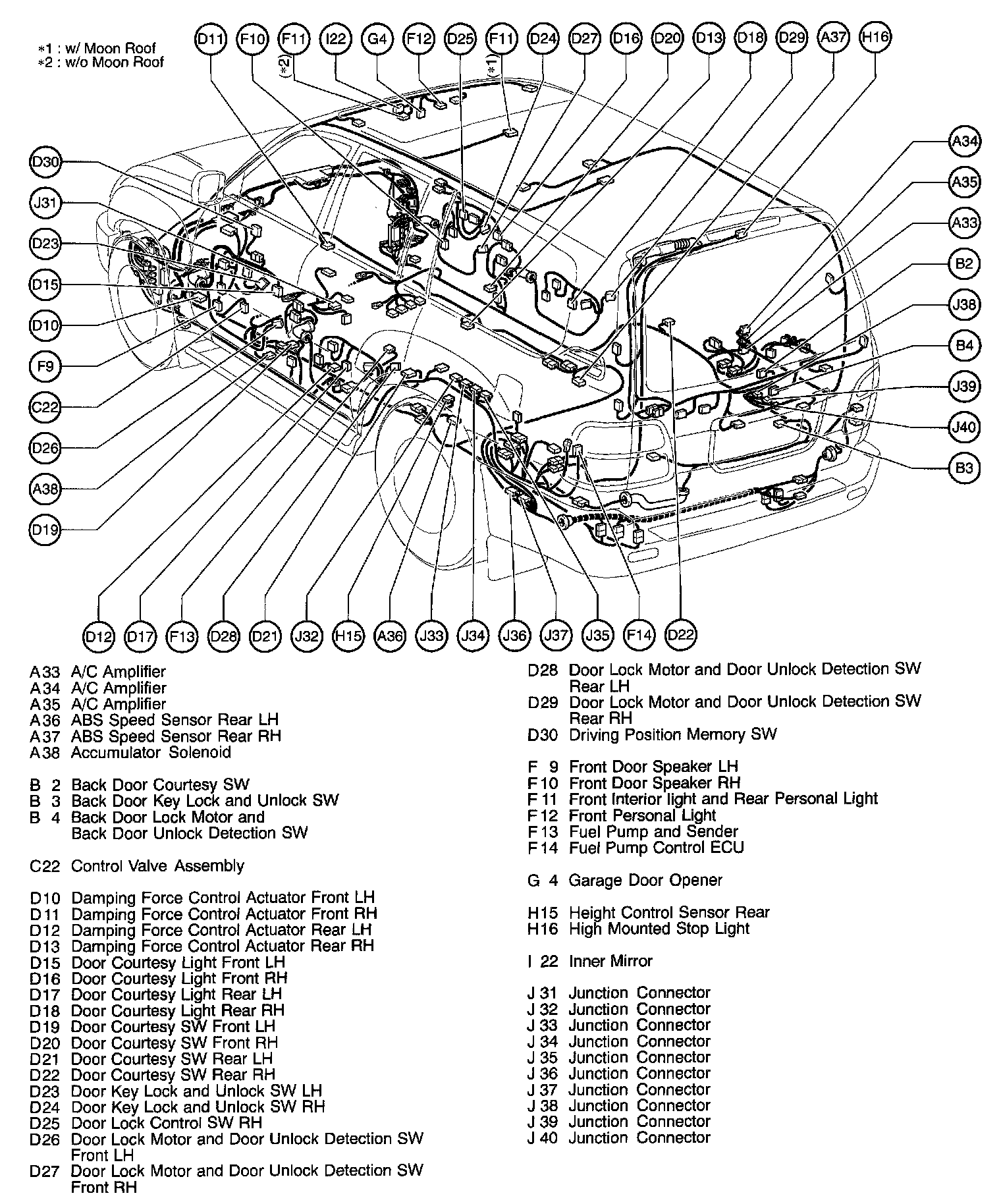

FIG 40

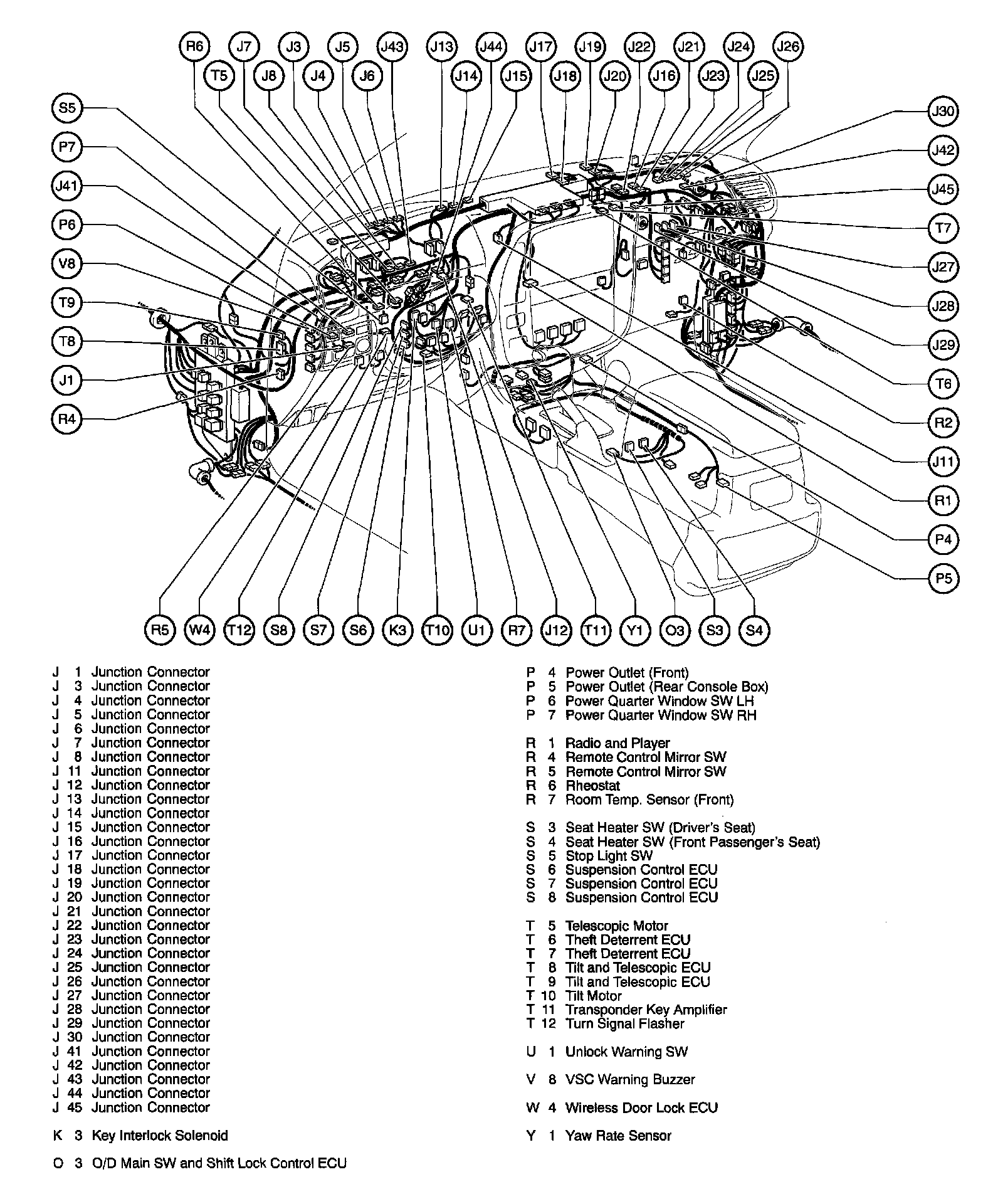

FIG 41

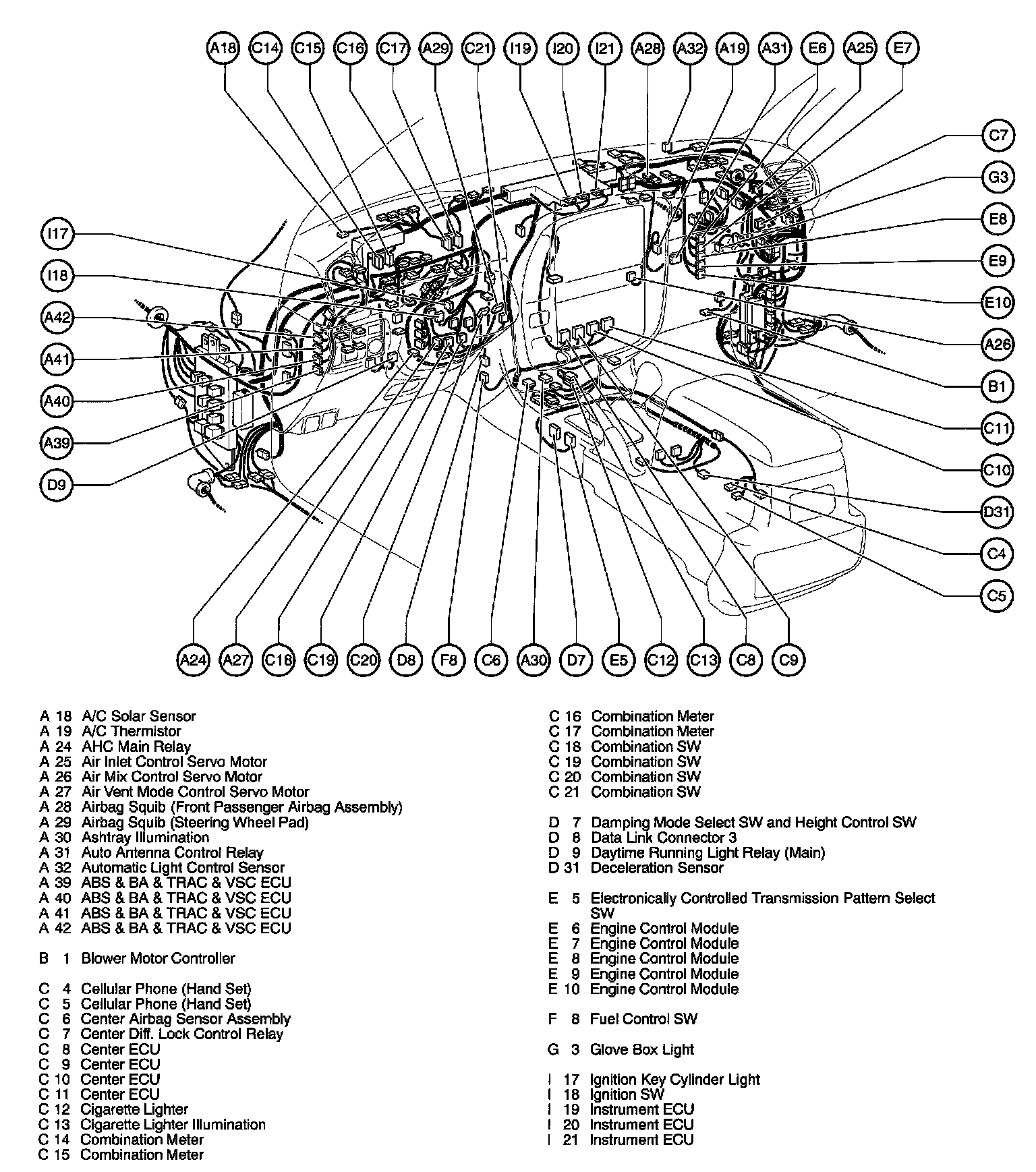

FIG 42

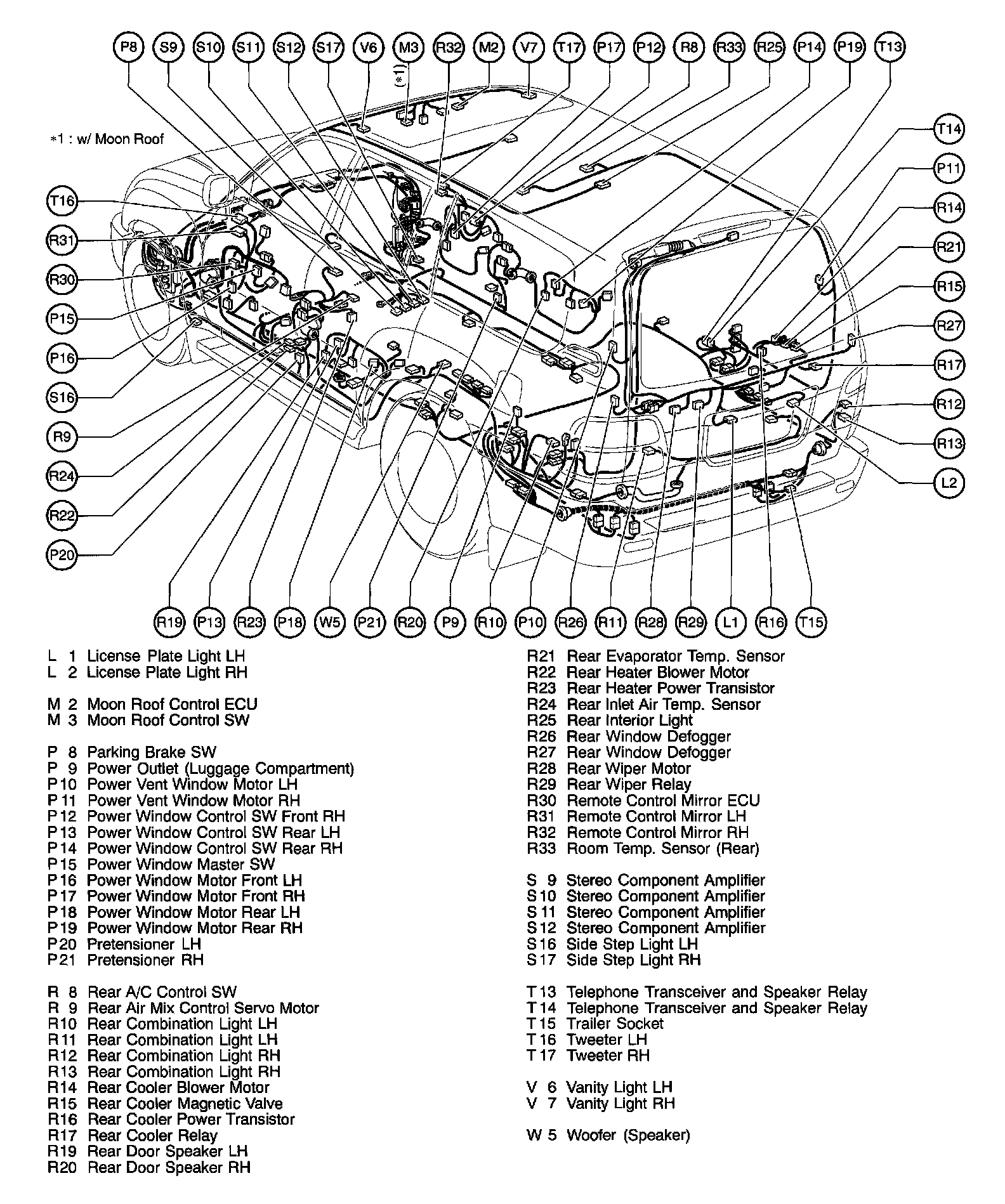

FIG 43
