Service Data

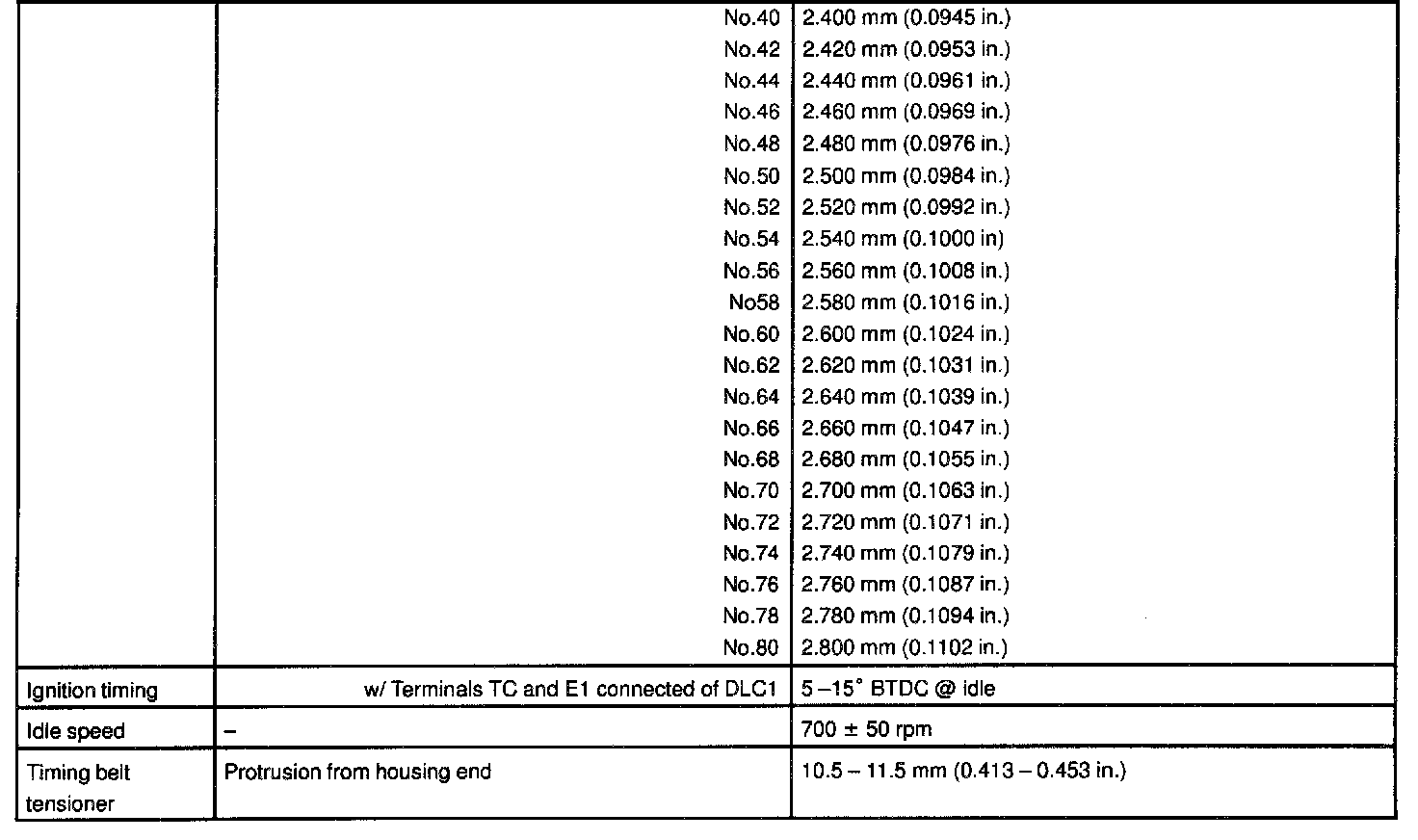

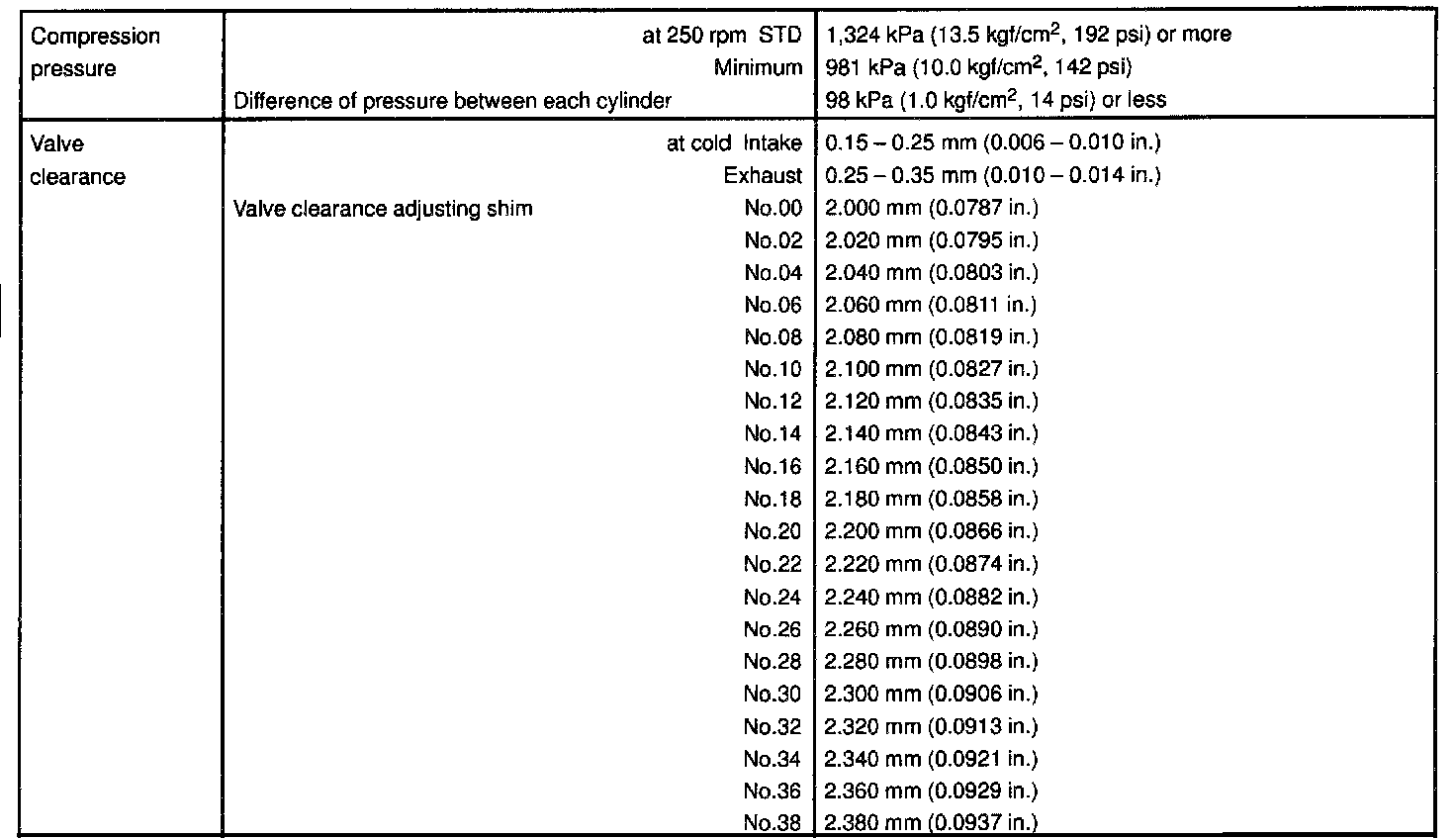

4.7L Engine Mechanical Data:

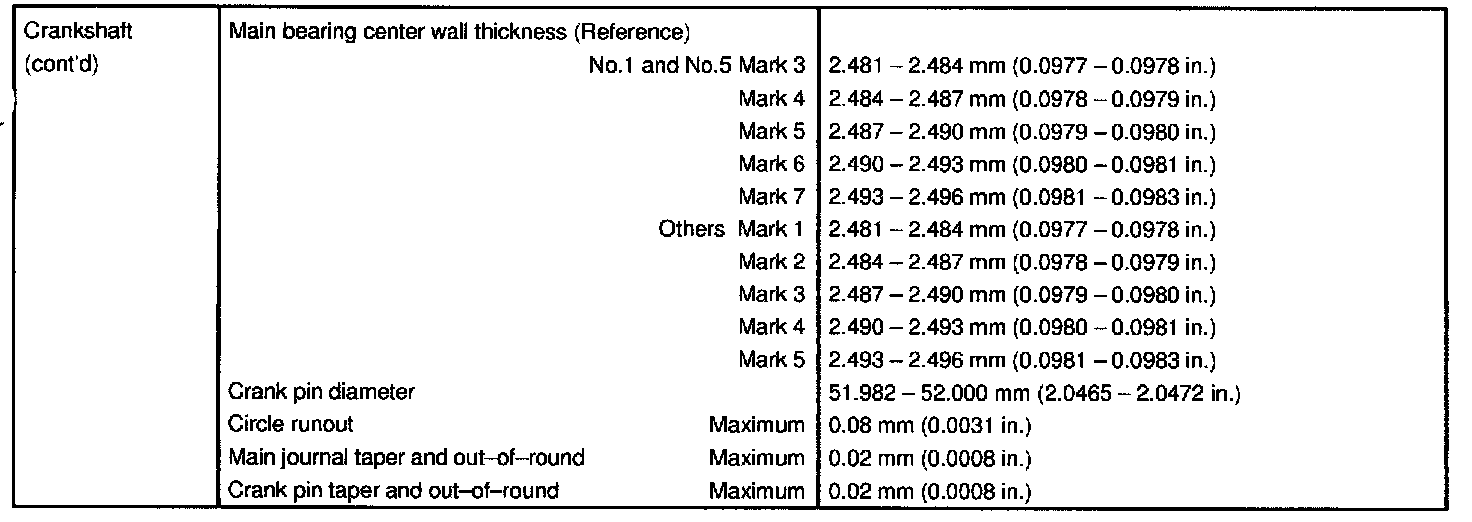

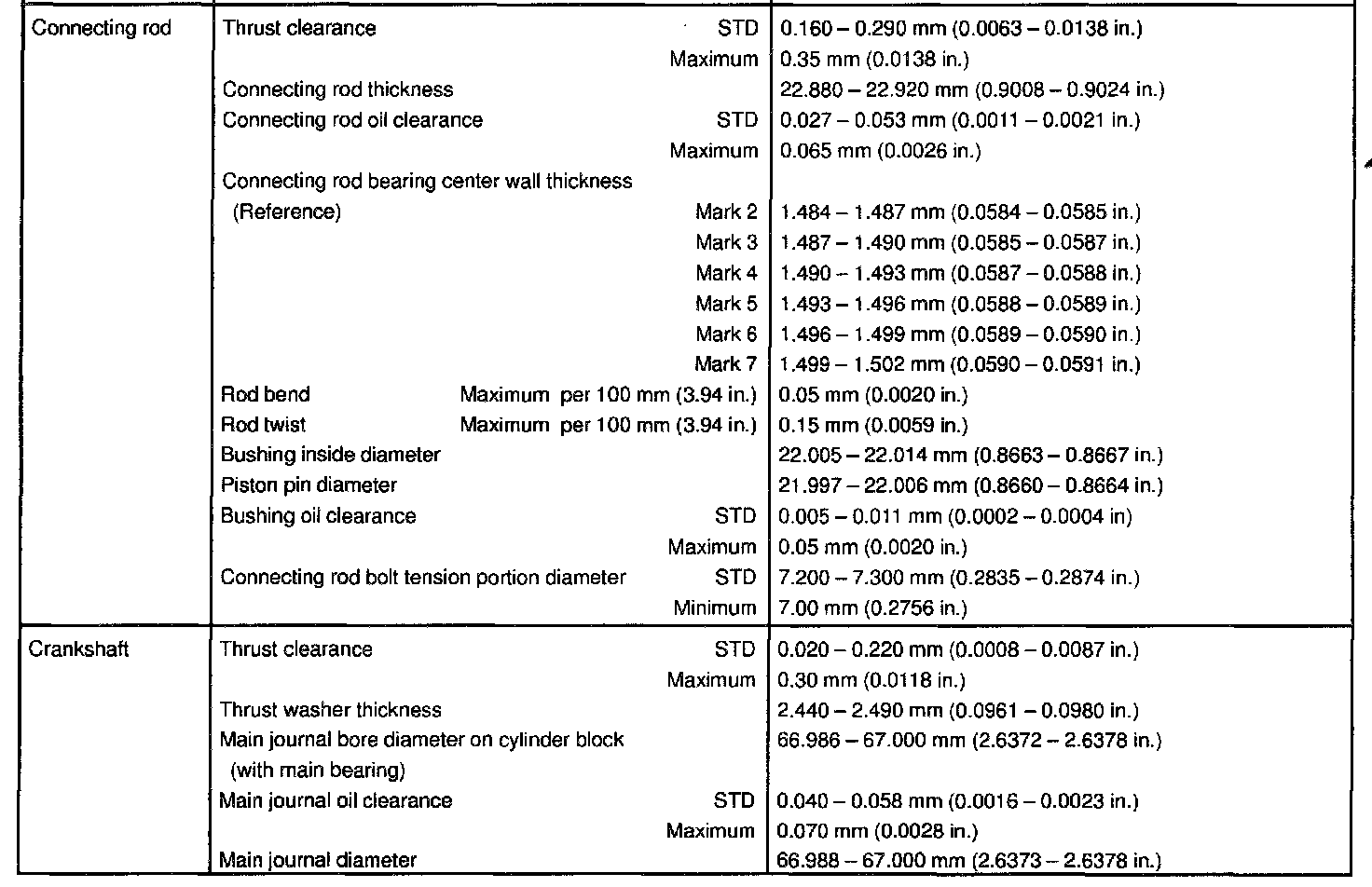

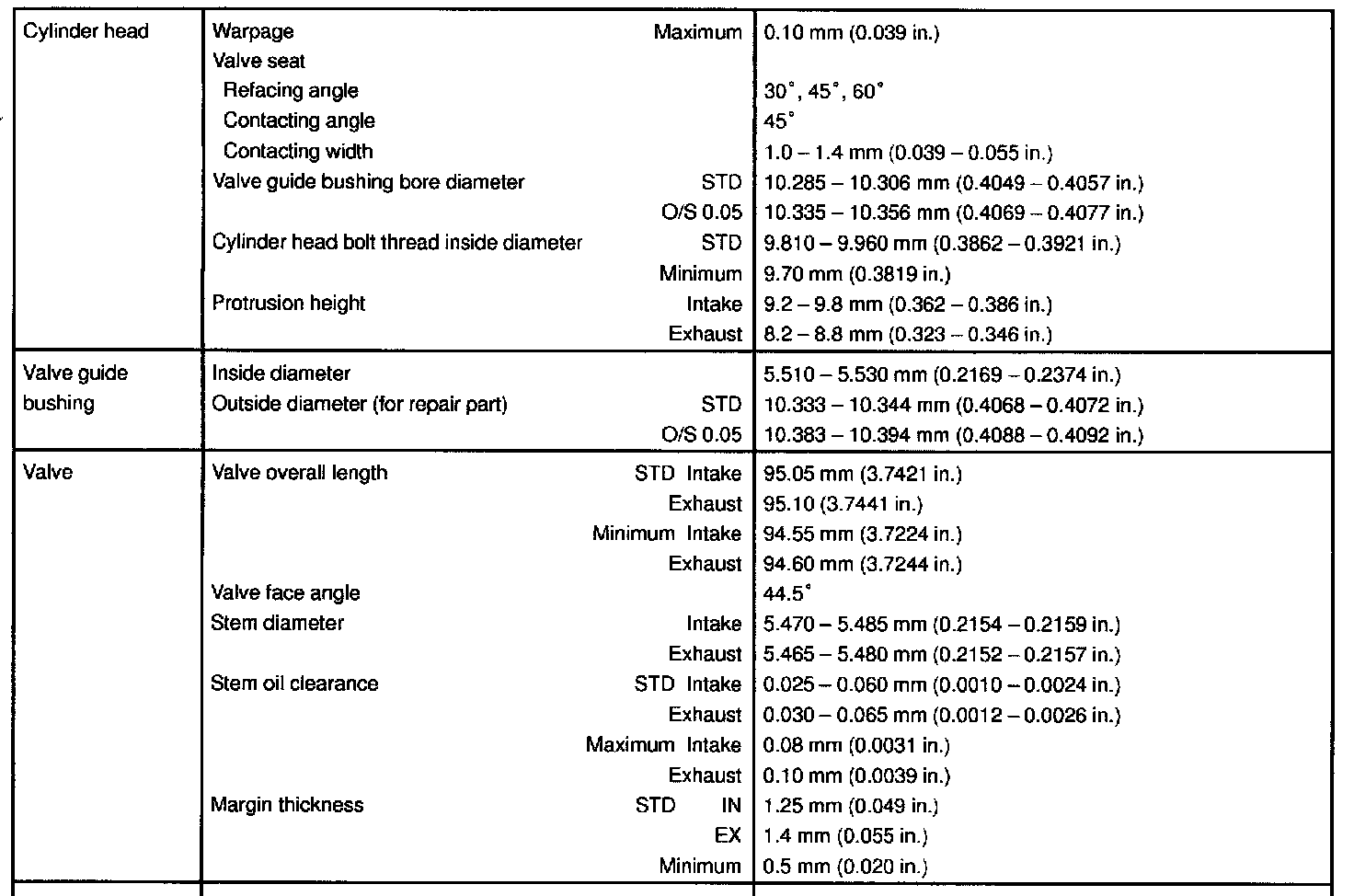

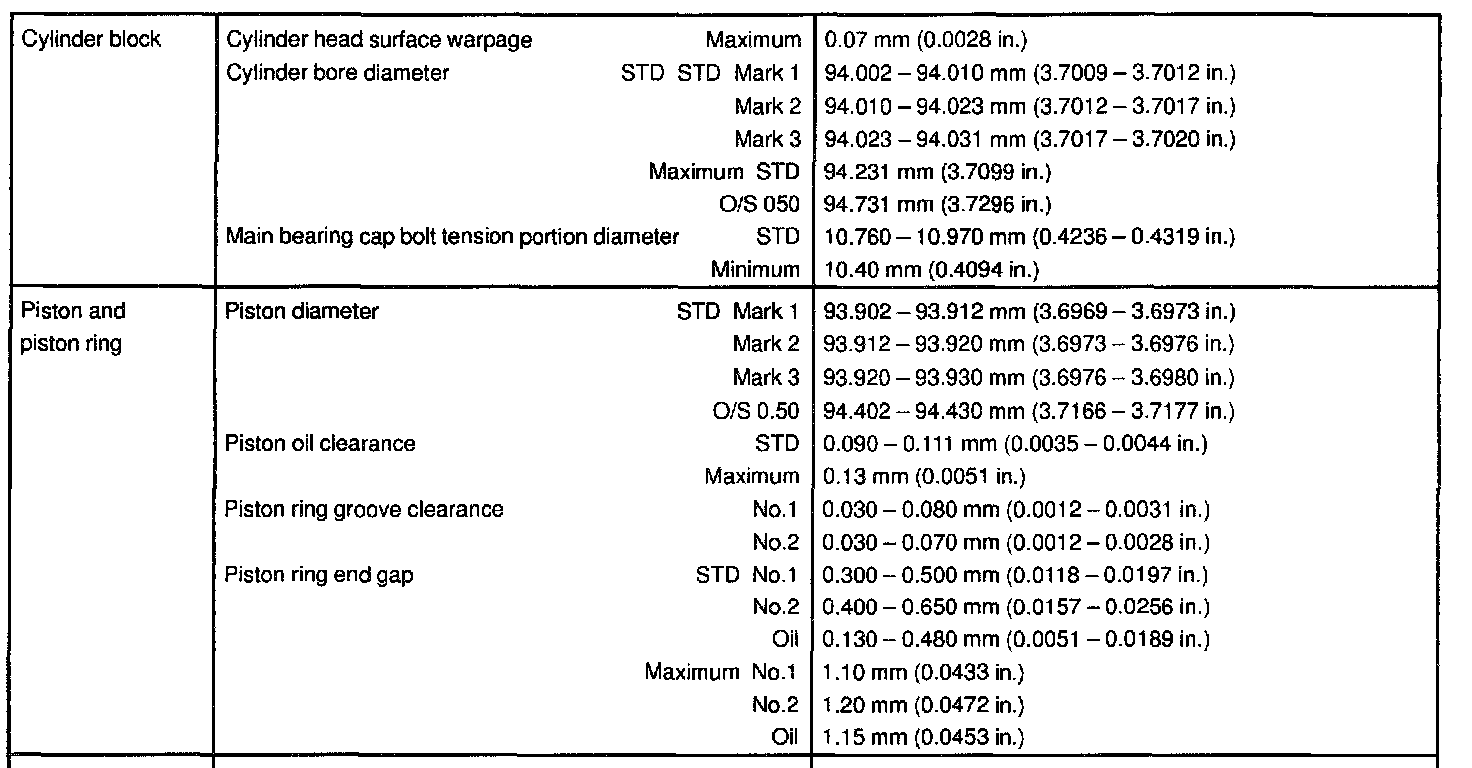

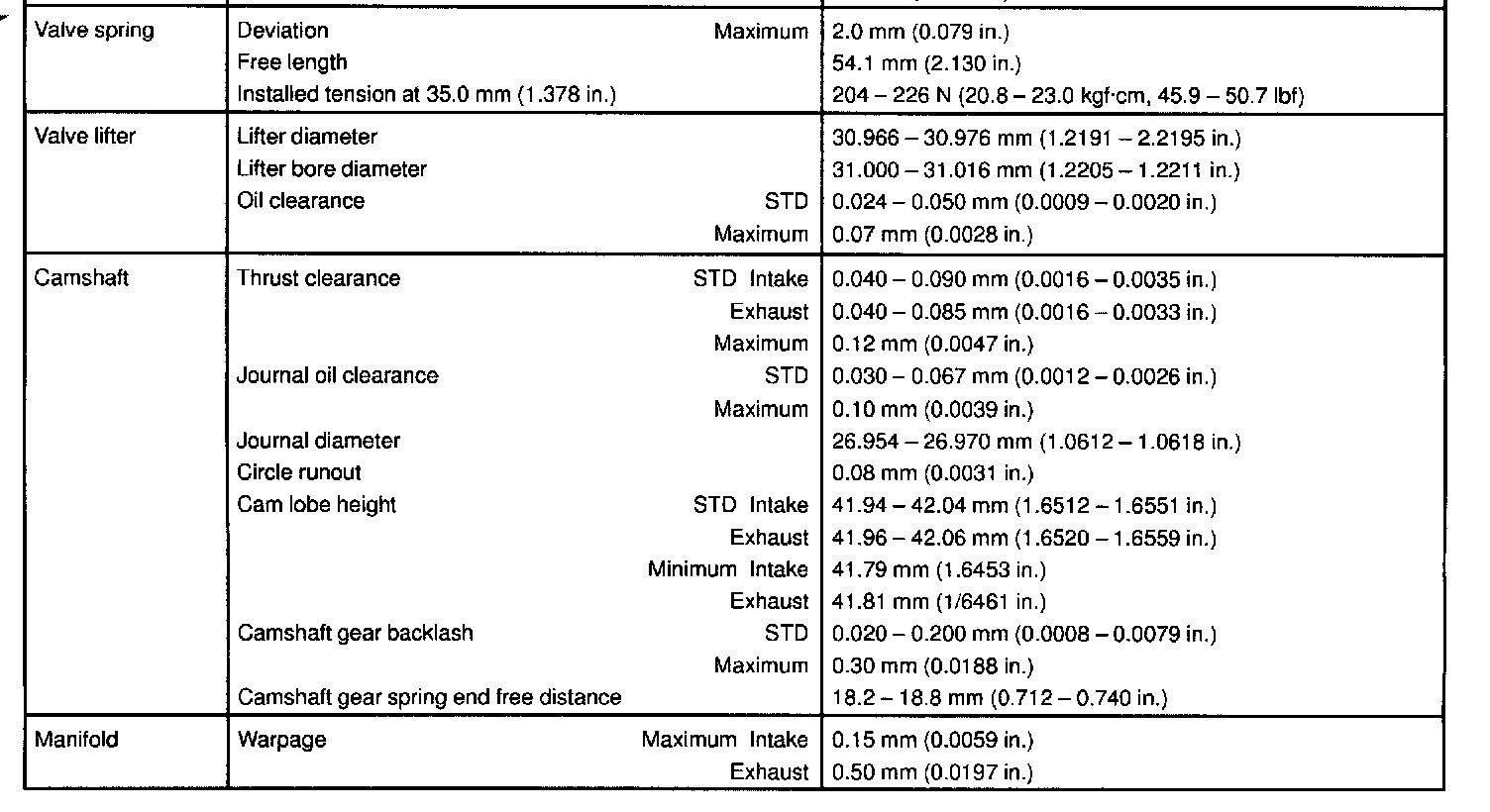

4.7L Engine Mechanical Cont.:

4.7L Engine Mechanical Cont.:

4.7L Engine Mechanical Cont.:

4.7L Engine Mechanical Cont.:

4.7L Engine Mechanical Cont.:

4.7L Engine Mechanical Cont.:

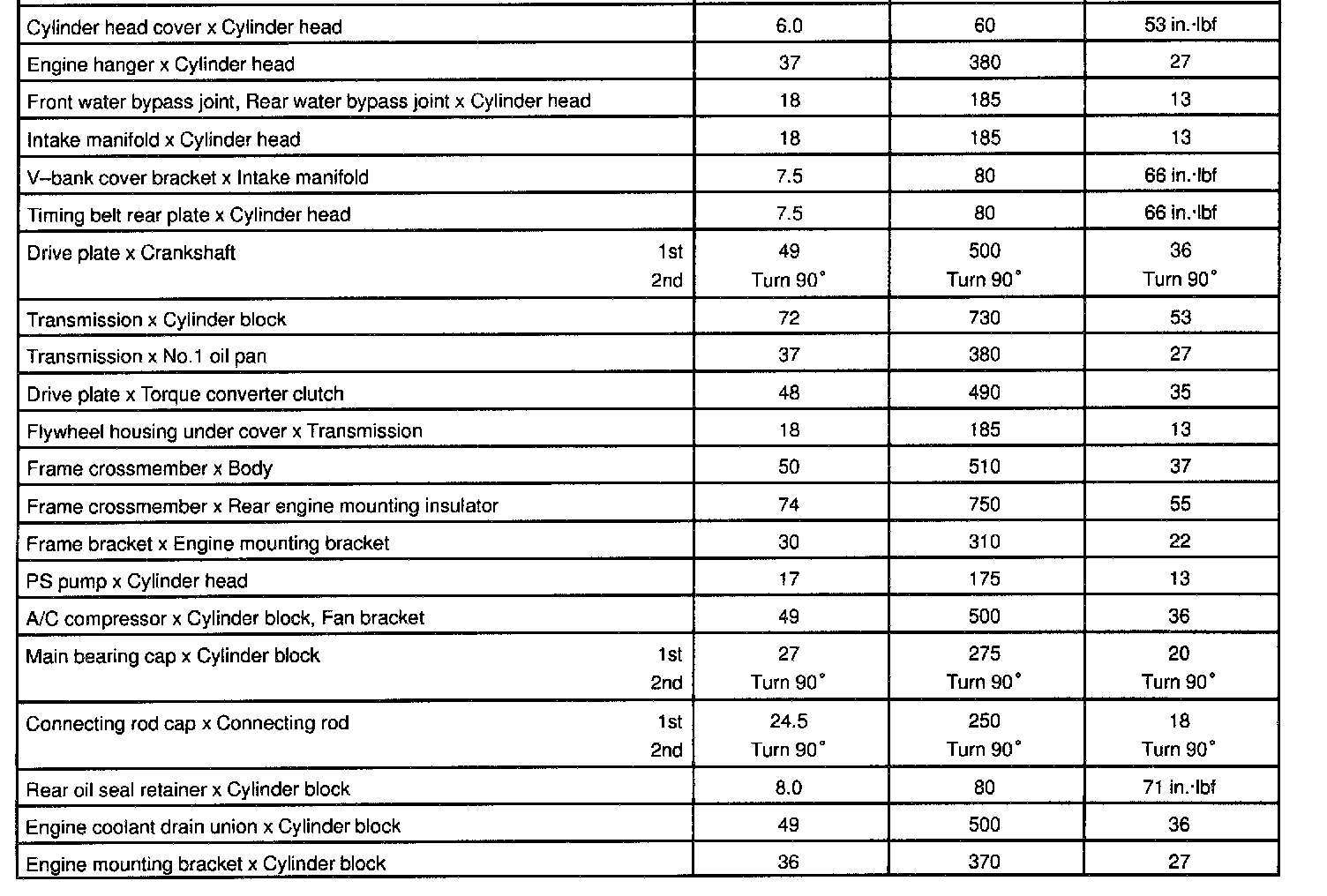

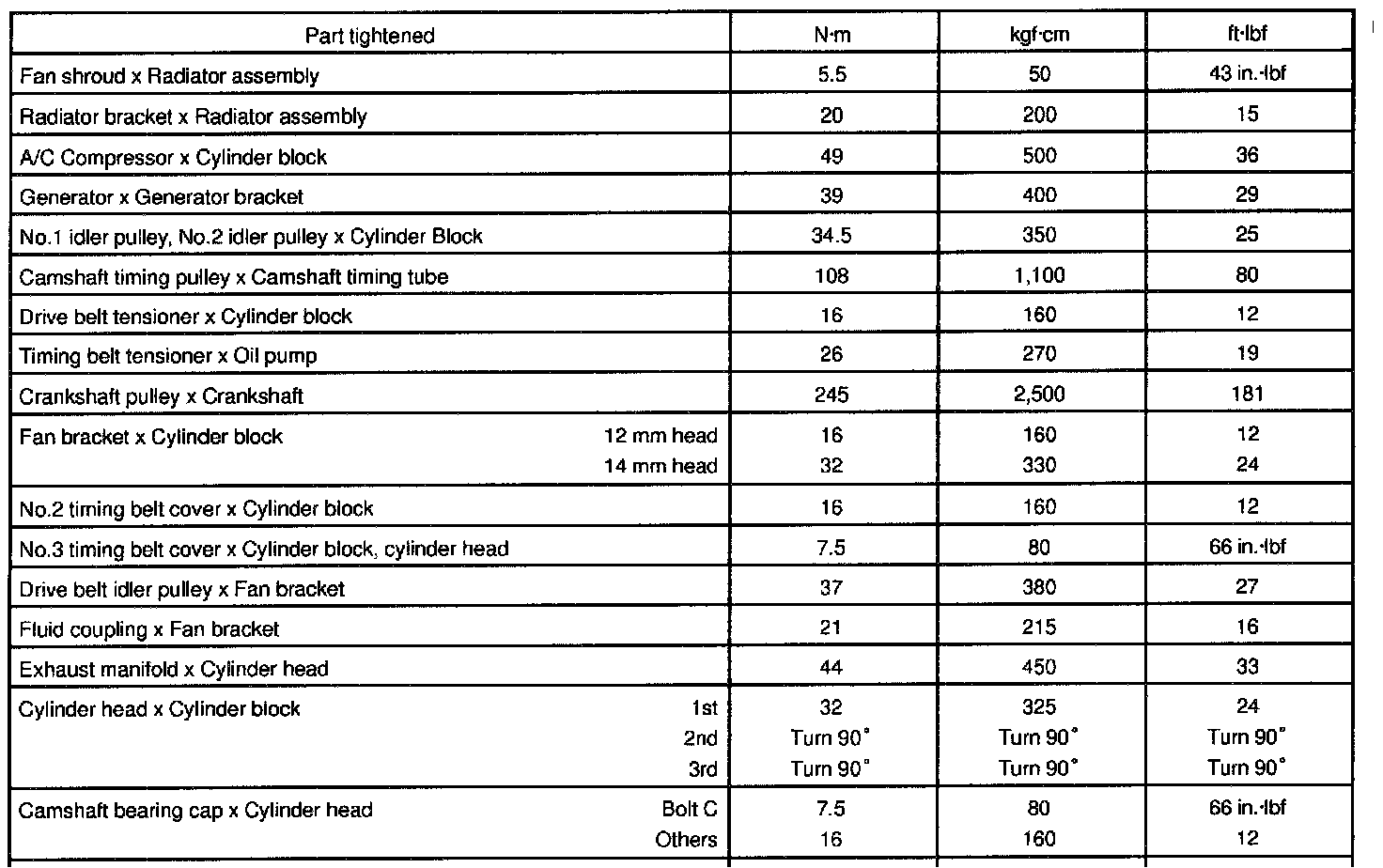

4.7L Engine Mechanical Torque:

4.7L Engine Torque Cont.:

4.7L Engine Torque Cont.:

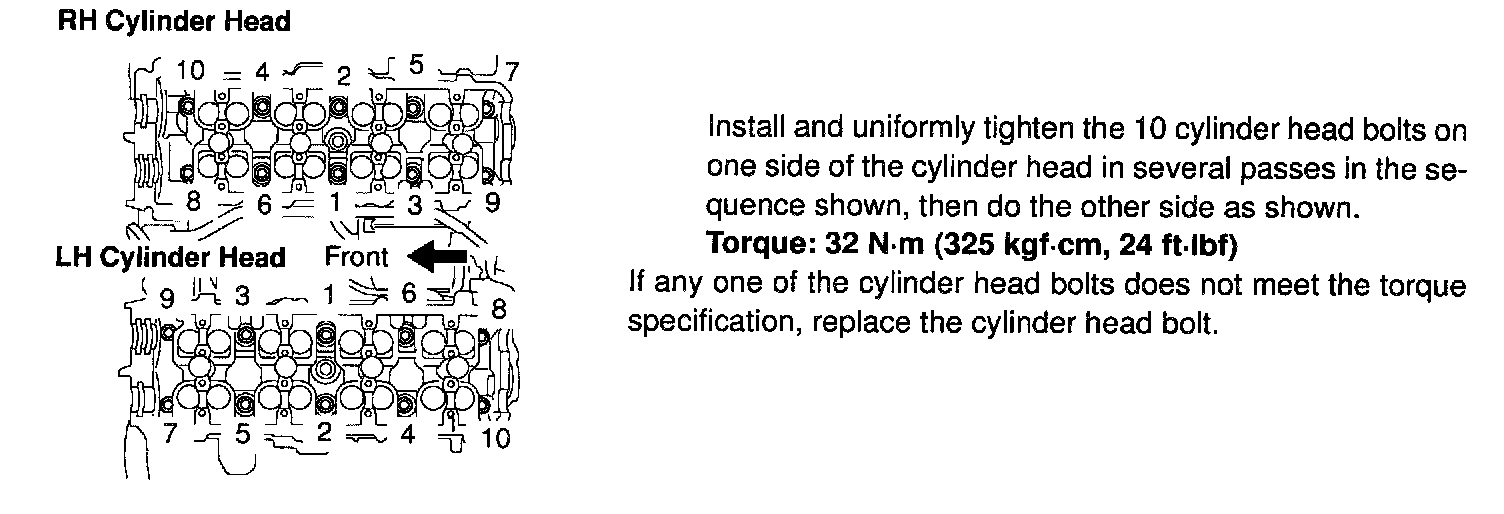

4.7L Cylinder Head Torque & Sequence:

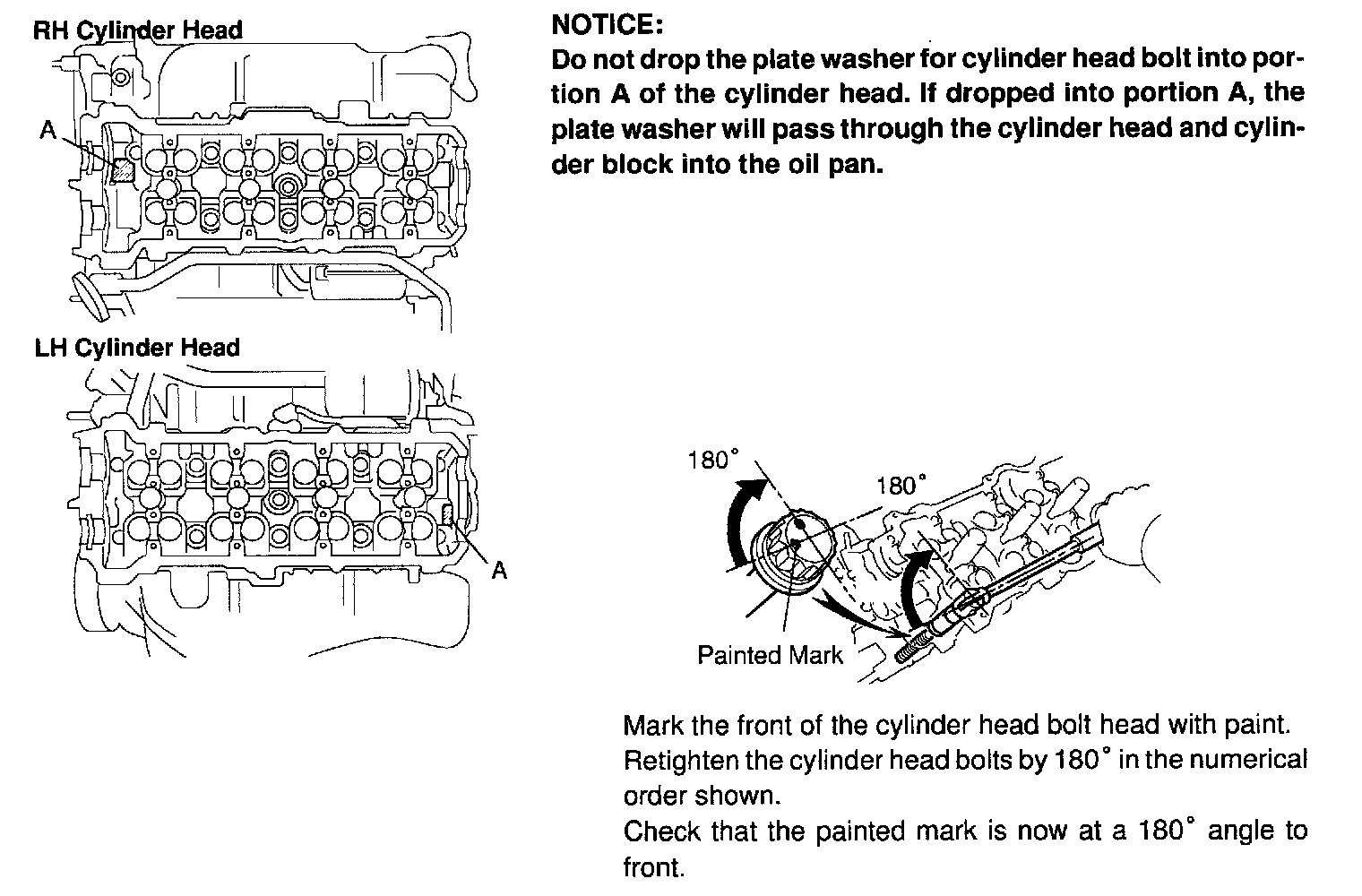

4.7L Cylinder Head Torque & Sequence Cont.:
