Engine Control Module: Locations

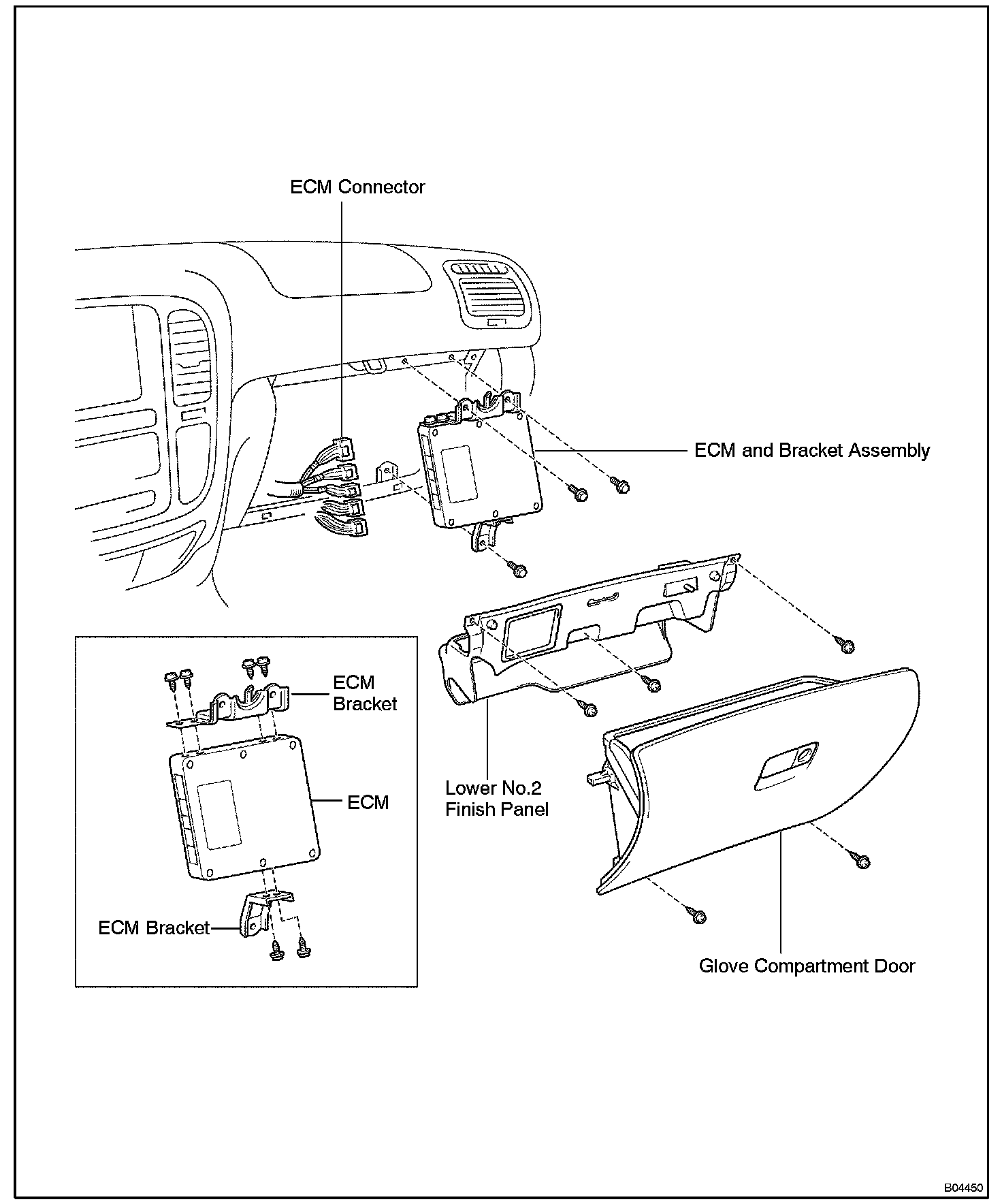

Engine Control Module (ECM):

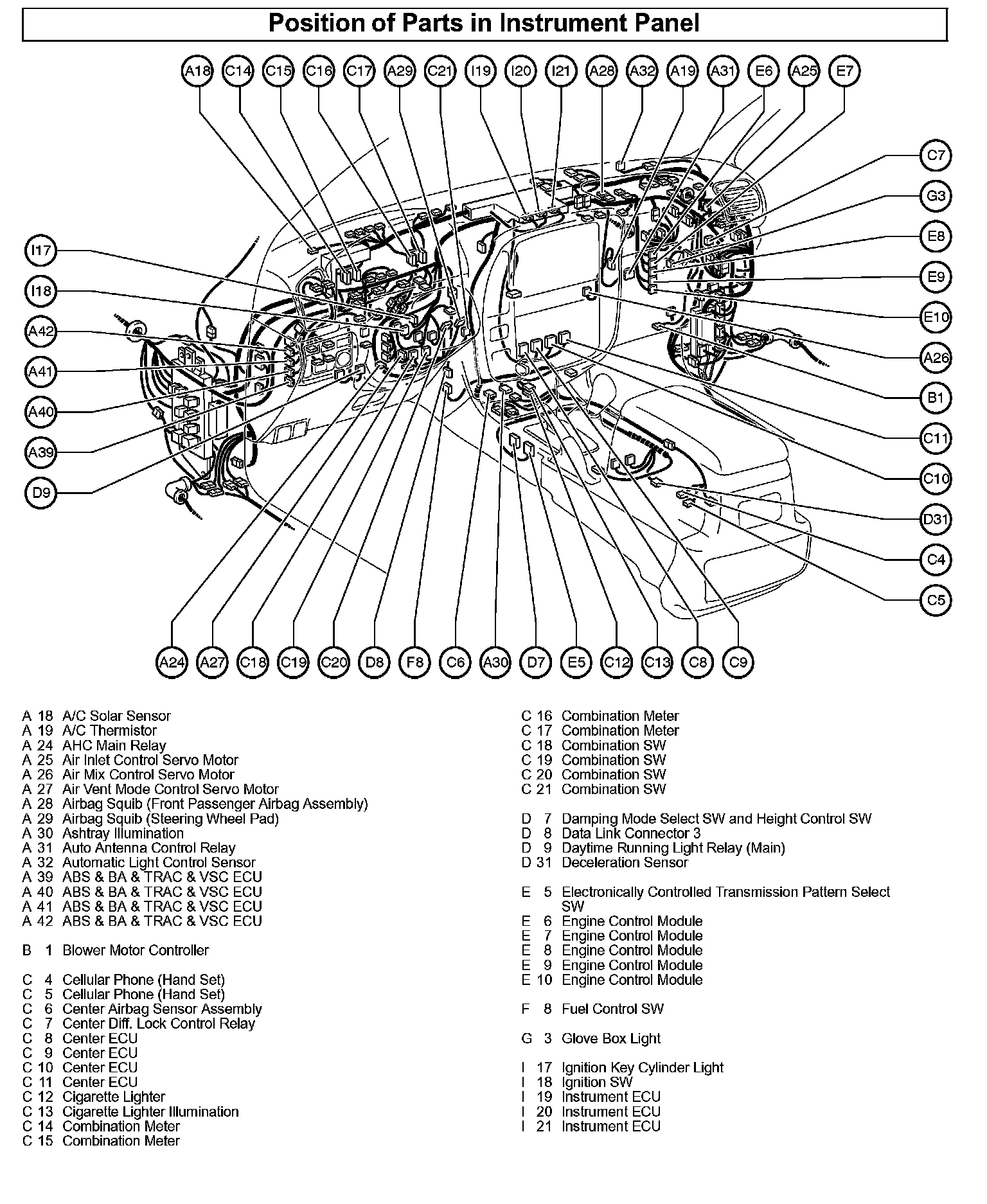

ECM: Position Of Parts In Instrument Panel:
