Symptom Related Diagnostic Procedures

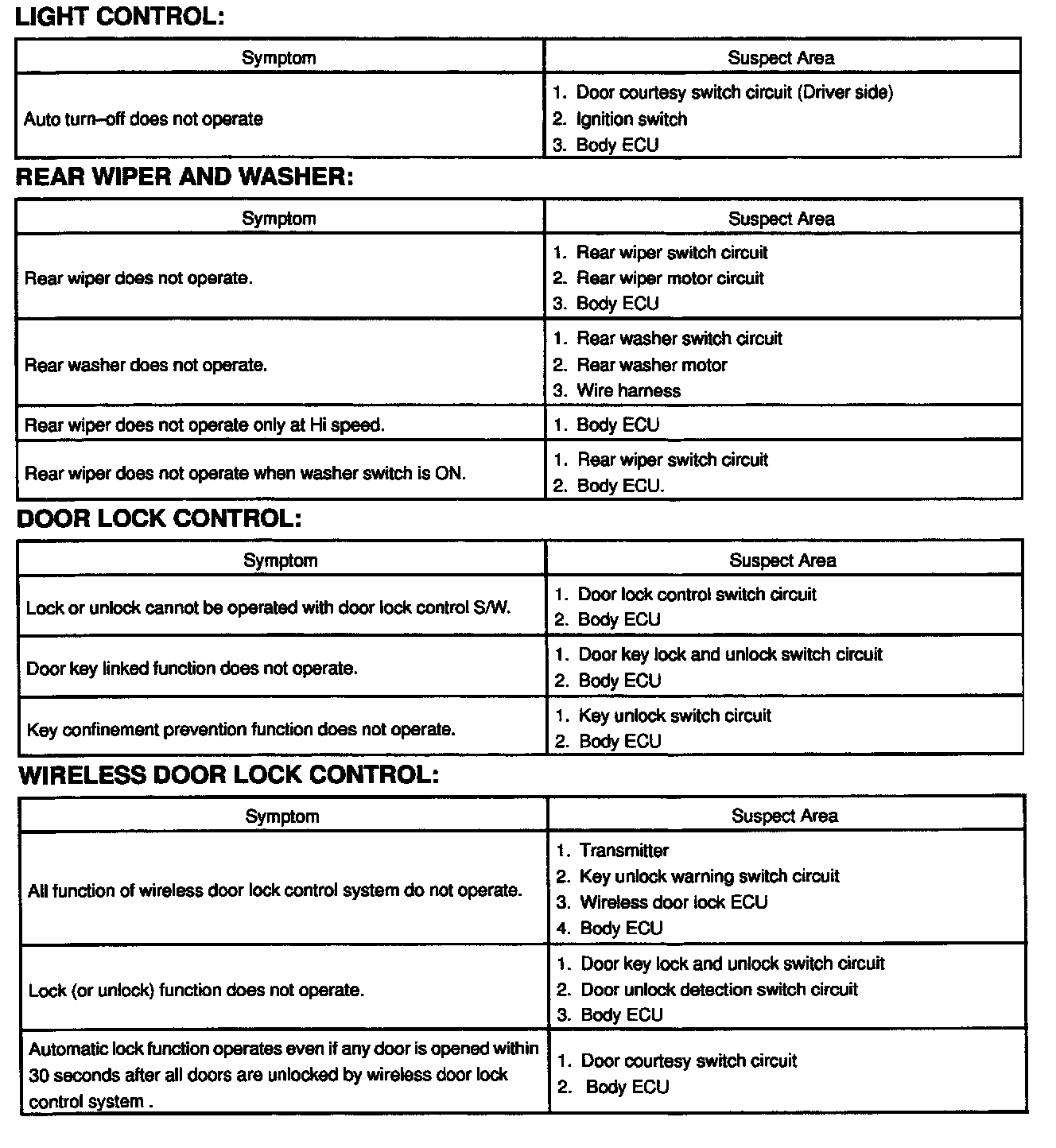

Body Control System (1 Of 2):



Body Control System (2 Of 2):
