Illumination Circuit

CIRCUIT DESCRIPTION
Receiving the courtesy signal from the Body ECU will make the interior light, ignition light, and courtesy light come on.

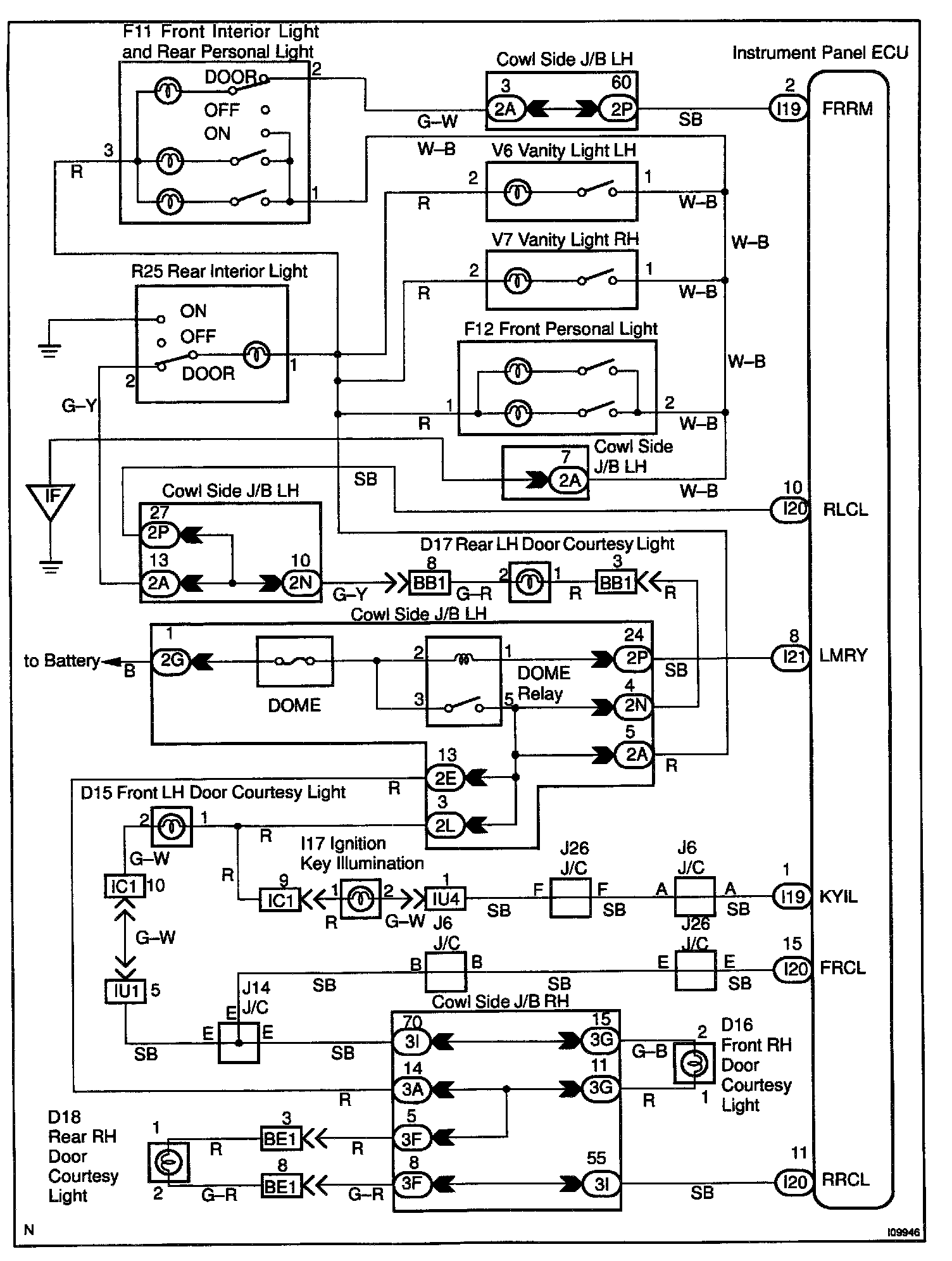

Wiring Diagram:

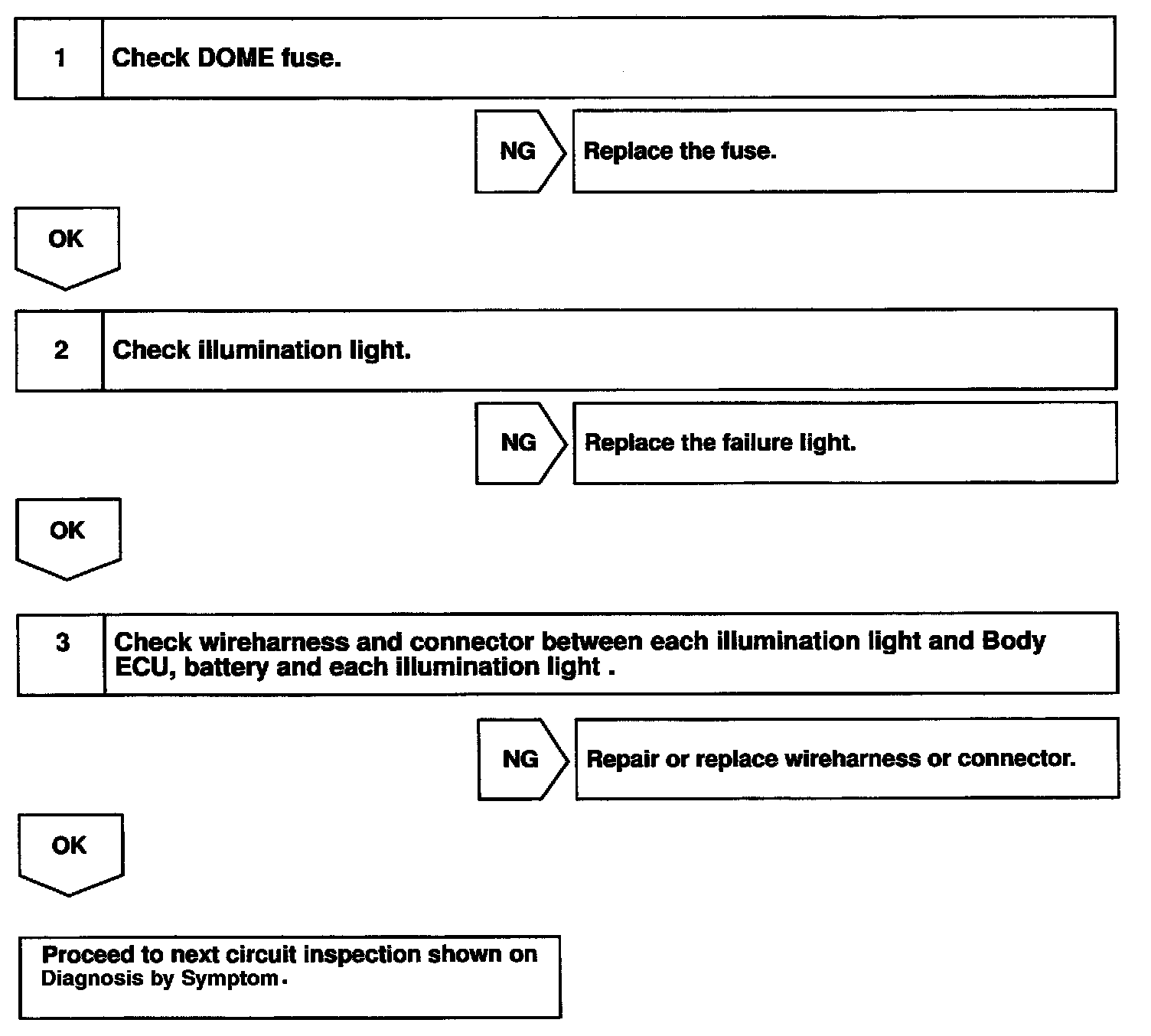

Steps 1 - 3:




INSPECTION PROCEDURE
