Door Key Lock and Unlock Switch Circuit

CIRCUIT DESCRIPTION
The door key lock and unlock switch is built in the door key cylinder. When the key is turned to the lock side, terminal 3 of the switch is grounded and when the key is turned to the unlock side, terminal 2 of the switch is grounded.

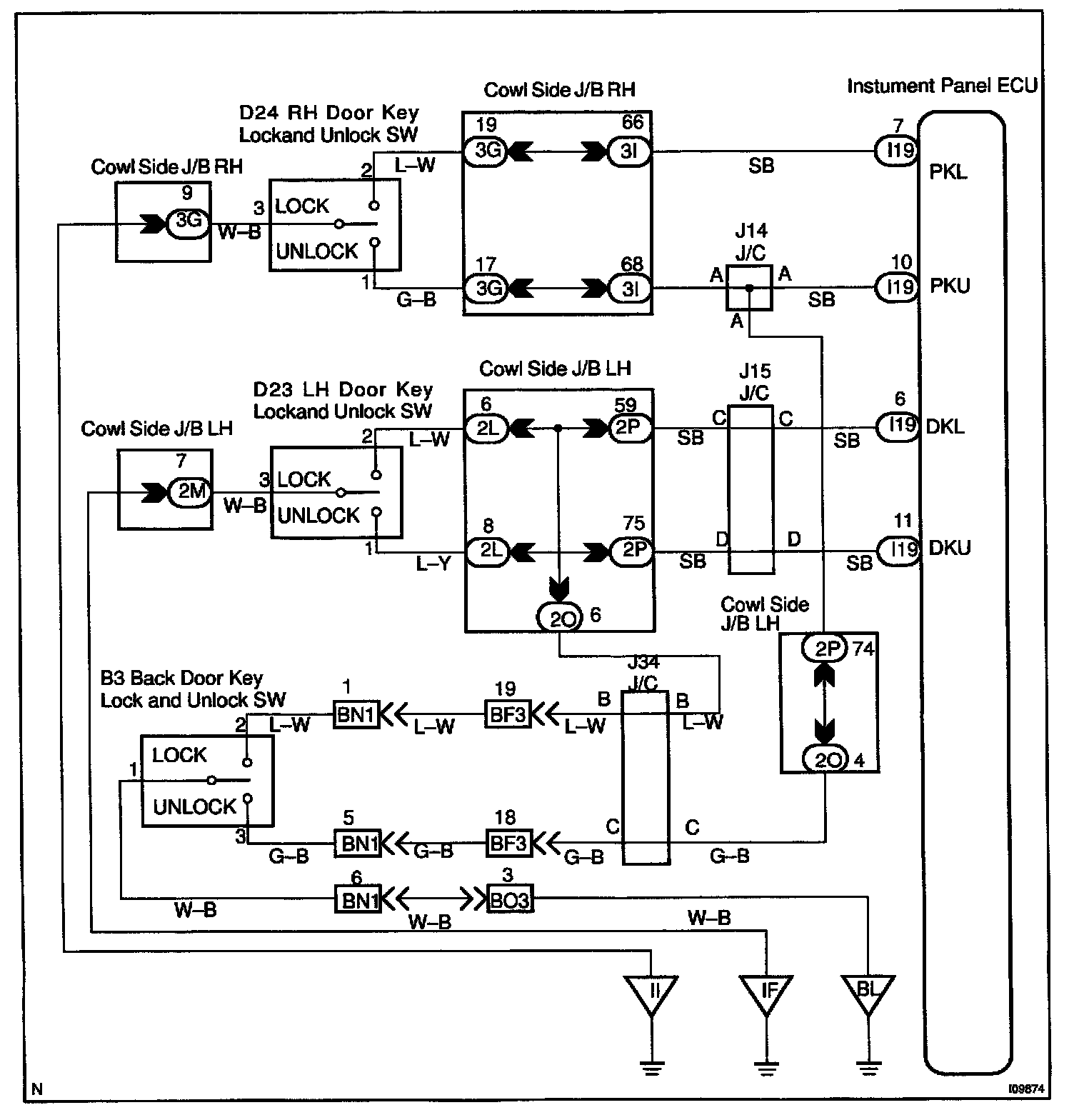

Wiring Diagram:






Steps 1 - 2:




INSPECTION PROCEDURE
