Diagnosis Circuit

CIRCUIT DESCRIPTION
This circuit sends a signal to the ECU that DTC output is required.

Wiring Diagram:

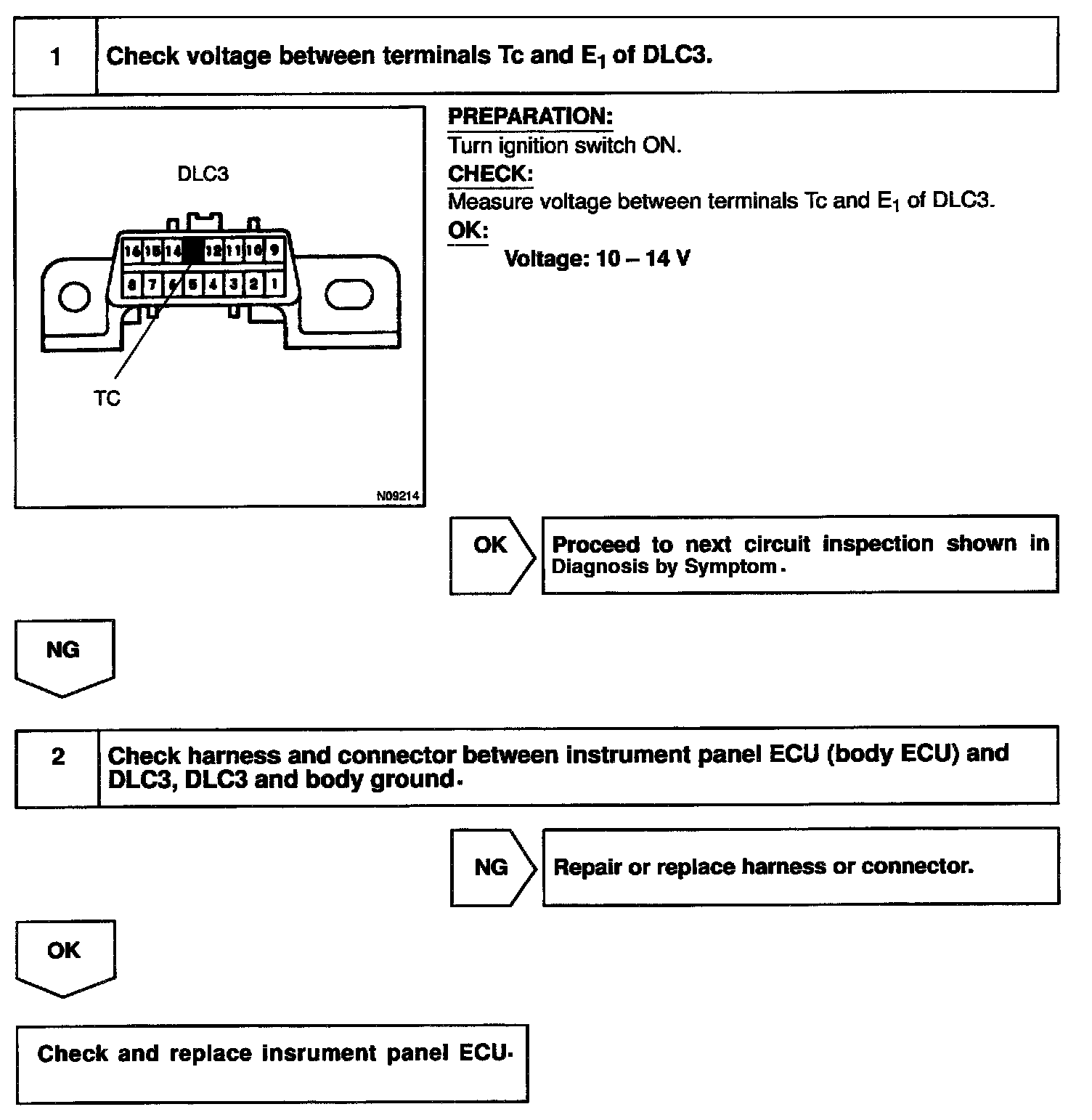

Steps 1 - 2:




INSPECTION PROCEDURE
