Home >> Lexus >> 2000 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Heater Core Case

Heater Core Case

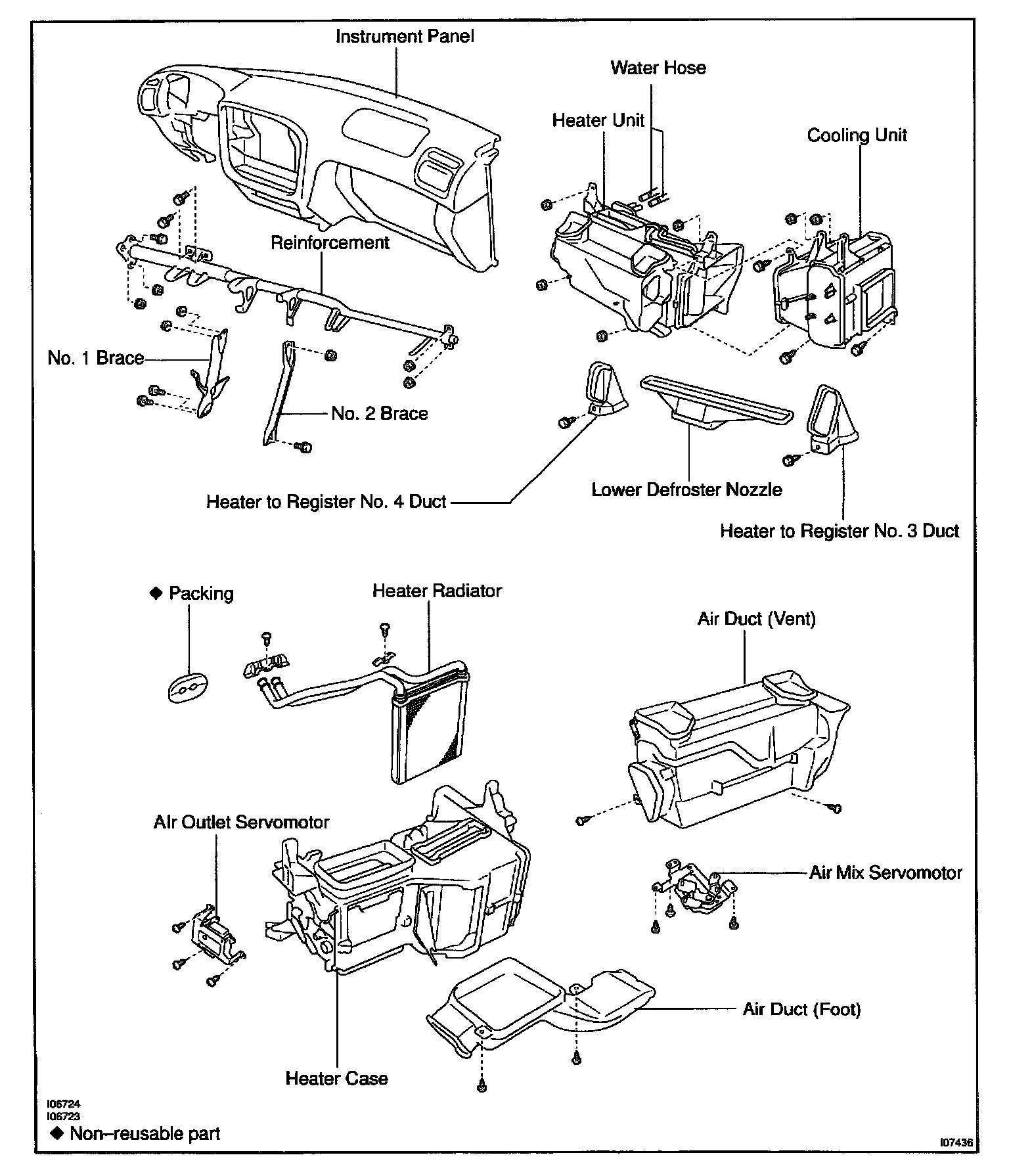

Part 1 Of 2:

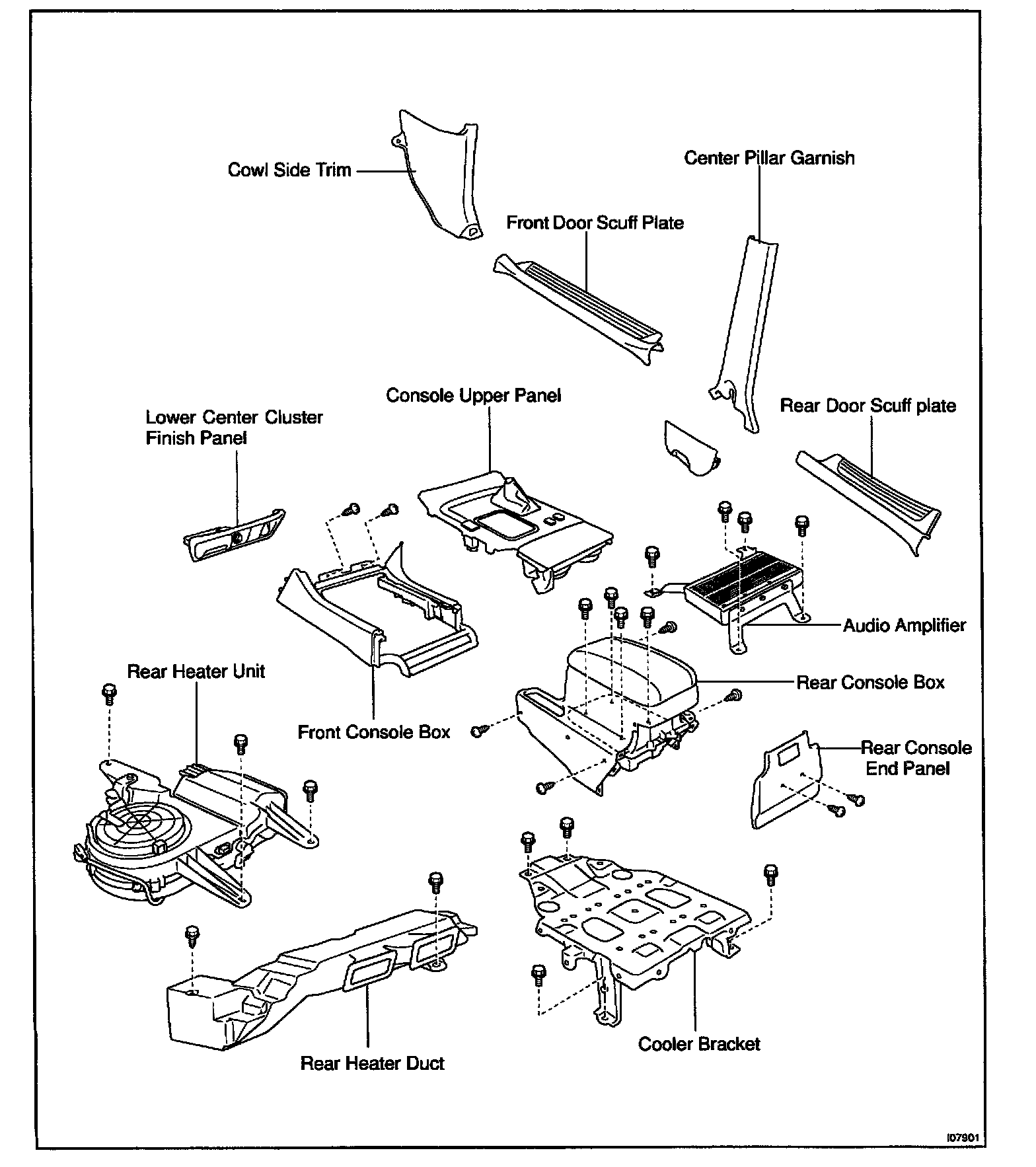

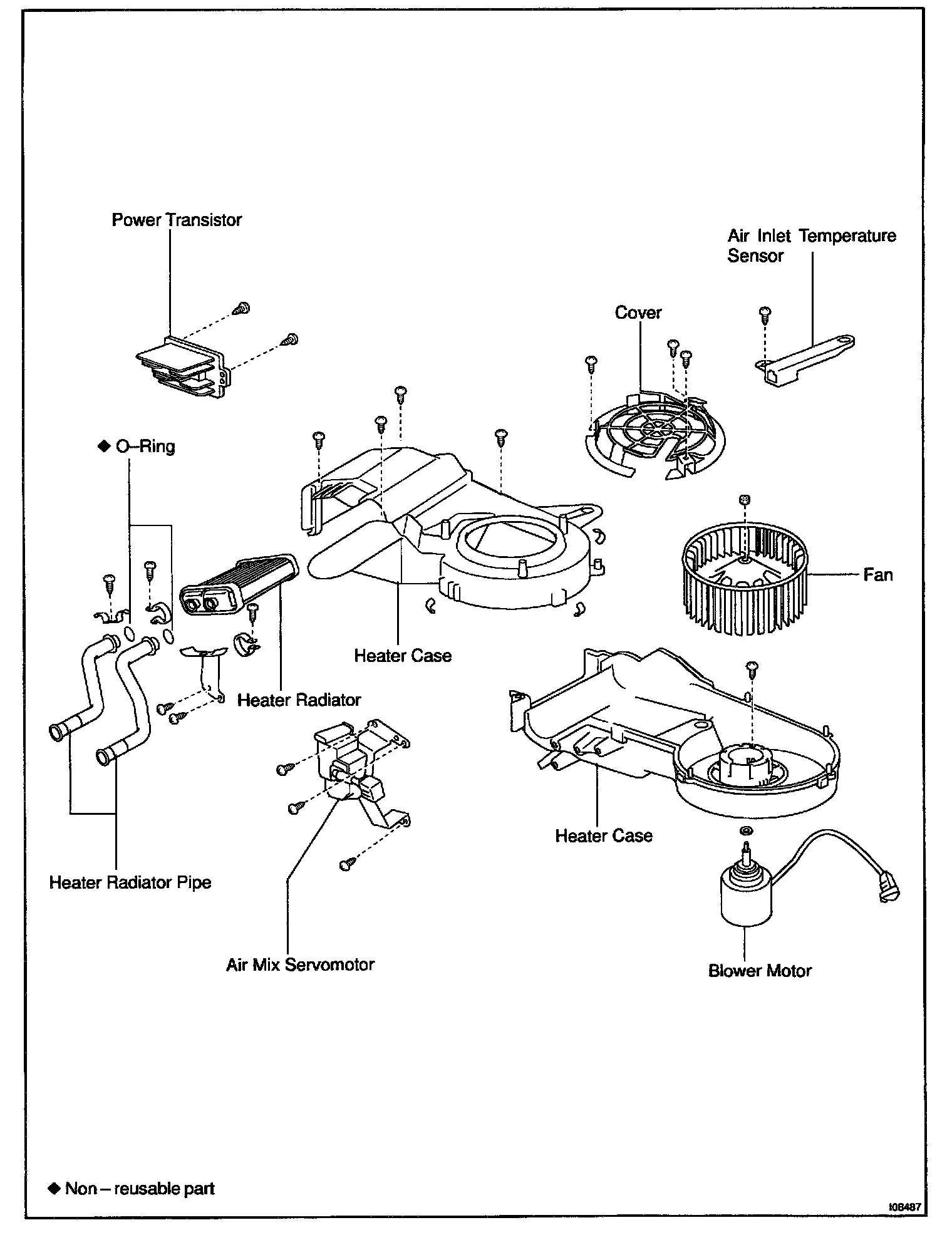

Part 2 Of 2:
