Parking Brake Switch Circuit
Parking Brake Switch Circuit
Wiring Diagram:

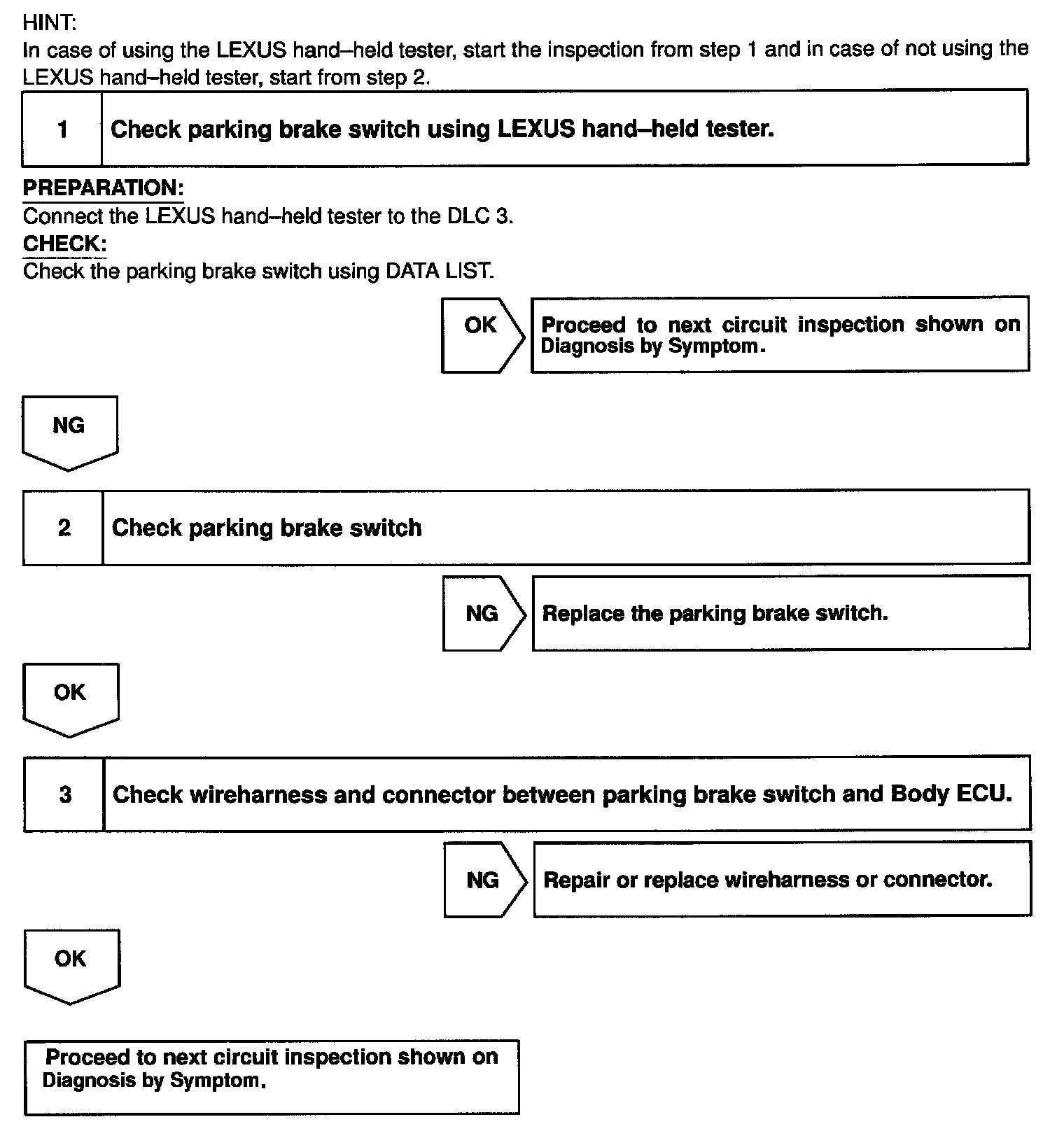

Steps 1 - 3:
INSPECTION PROCEDURE
