Home >> Lexus >> 2000 >> GS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Fuel Tank

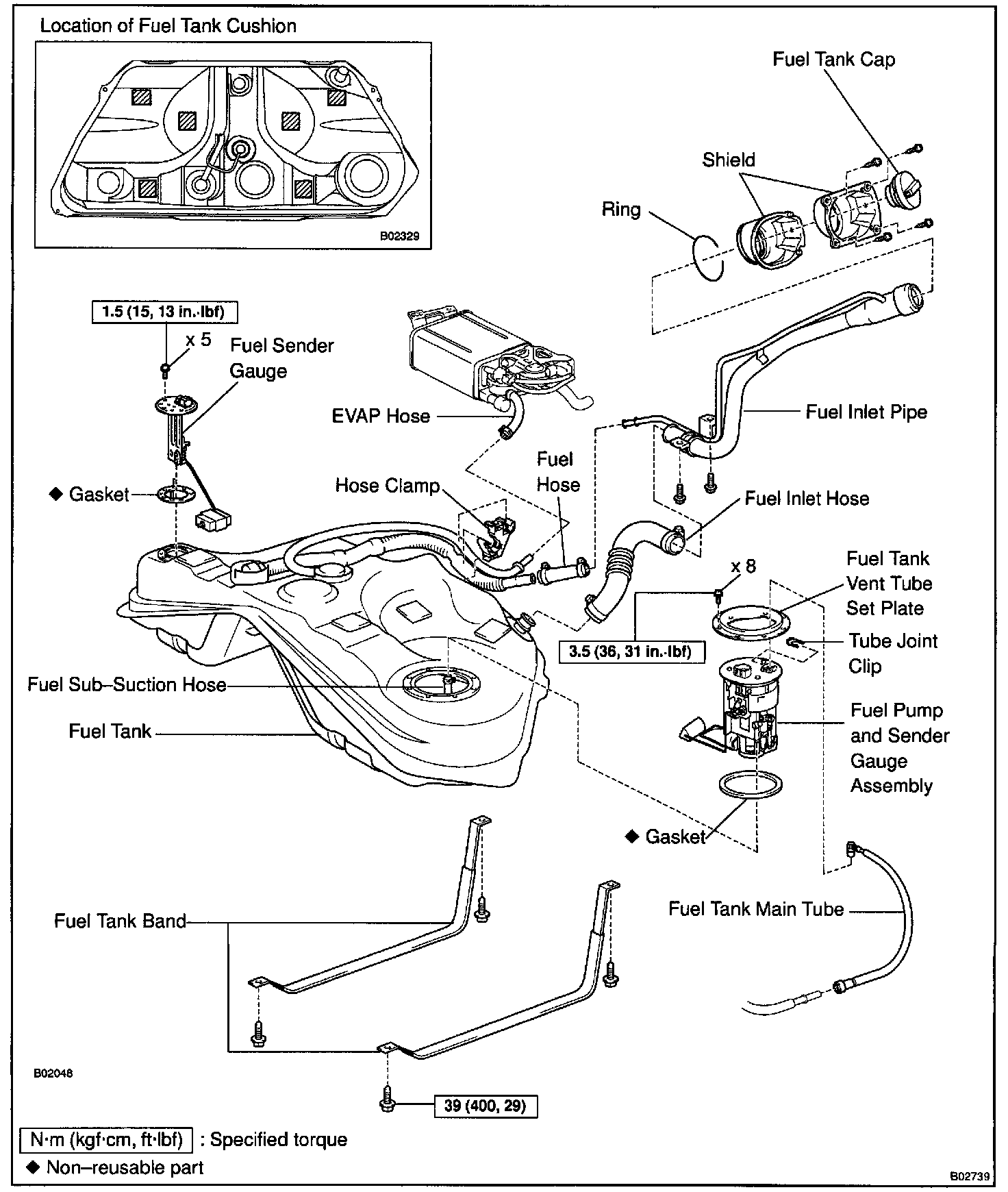

Fuel Tank






CAUTION:
- Always use new gaskets when replacing the fuel tank or component parts.
- Apply the proper torque to all parts tightened
