Mirror Switch Circuit

Mirror Switch Circuit / Body No.2 ECU

CIRCUIT DESCRIPTION
This circuit detects the conditions of the mirror selection switch and the mirror position switch.

Wiring Diagram:

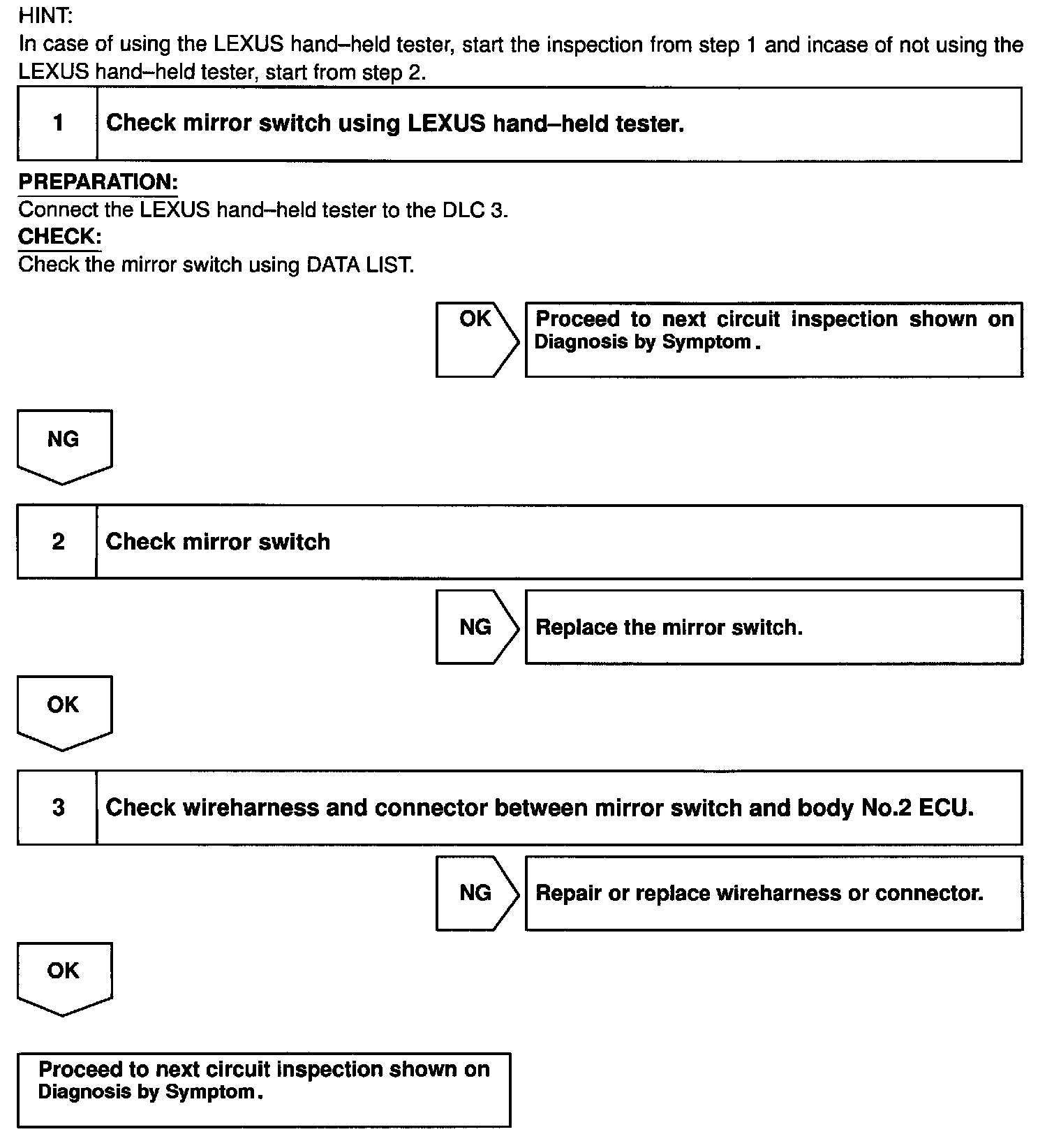

Steps 1 - 3:




INSPECTION PROCEDURE
