Ts Terminal Circuit

CIRCUIT DESCRIPTION
The sensor check circuit detects abnormalities in the speed sensor signal which cannot be detected with the DTC check. Connecting terminals Ts and E1 of the DLC1 in the engine compartment starts the check.




WIRING DIAGRAM

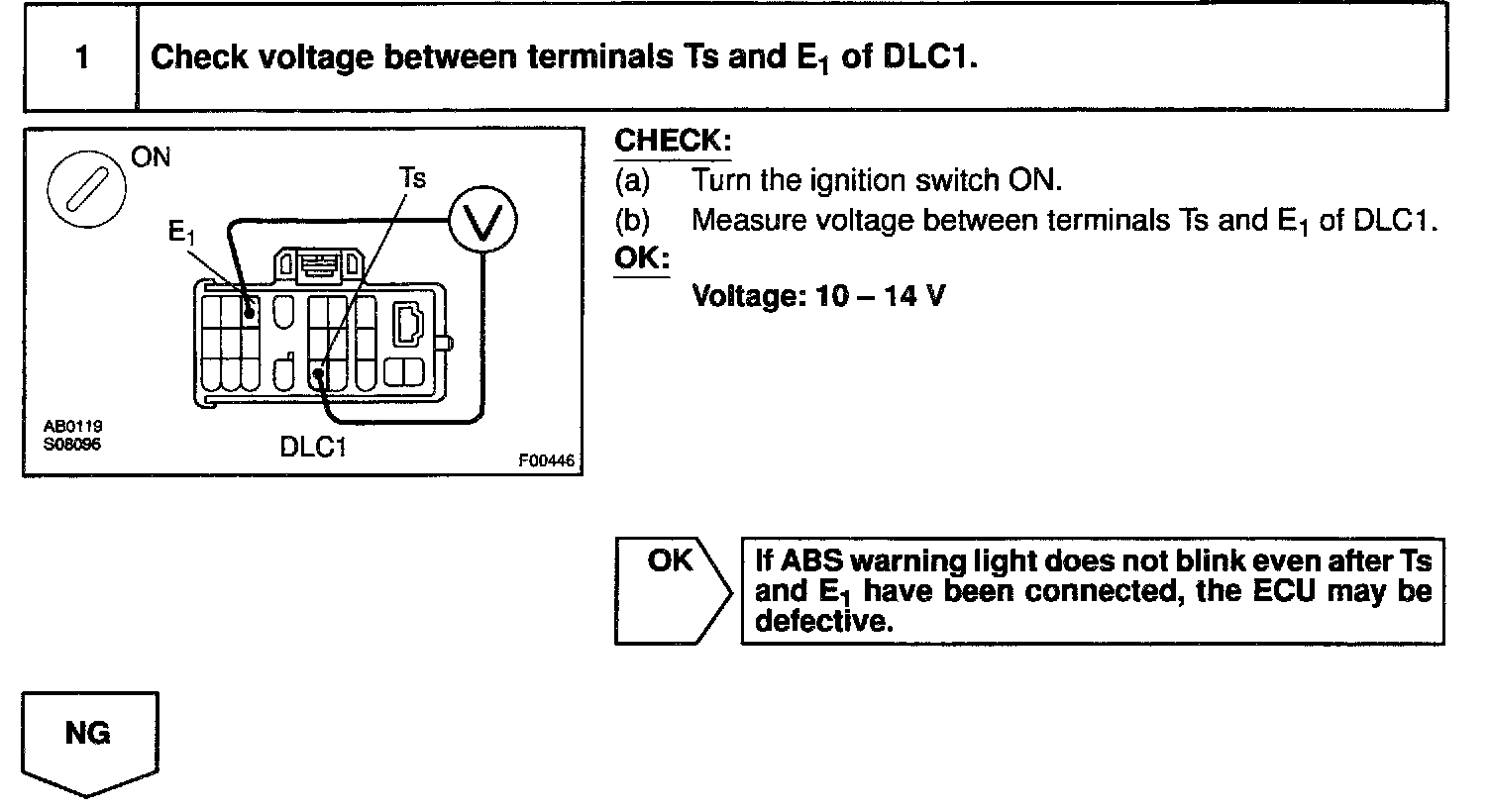

INSPECTION PROCEDURE
