Relay Box: Testing and Inspection

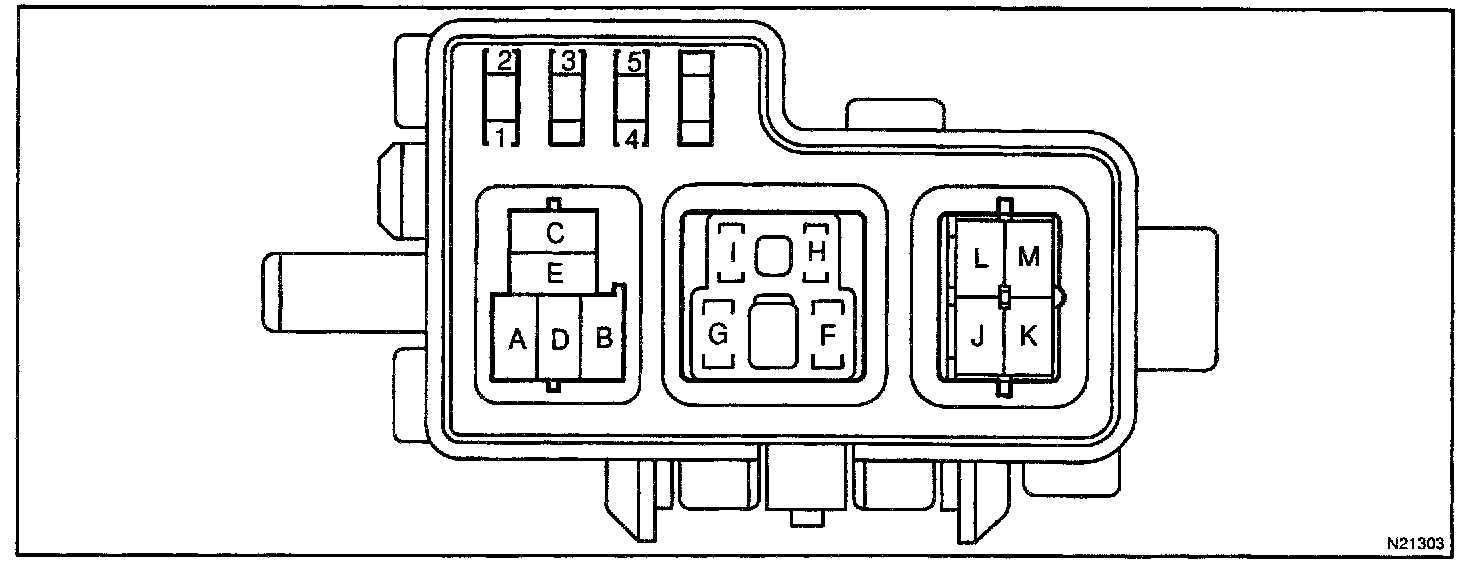

INSPECT ENGINE ROOM No.2 RELAY BLOCK CIRCUIT

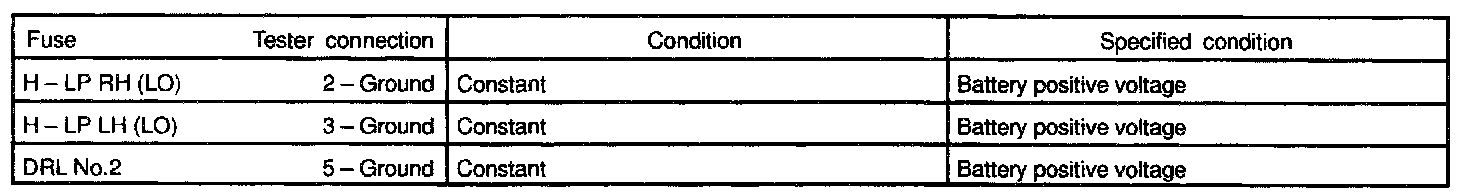

a. Remove the fuse from the relay block and inspect the connector on relay block side.
If the circuit is not as specified, inspect the circuits connected to other parts.

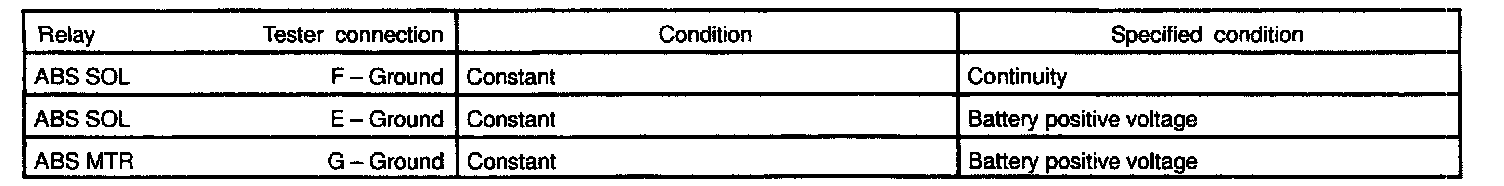

b. Remove the relay from the relay block and inspect the connector on relay block side.
If the circuit is not as specified, inspect the circuits connected to other parts.

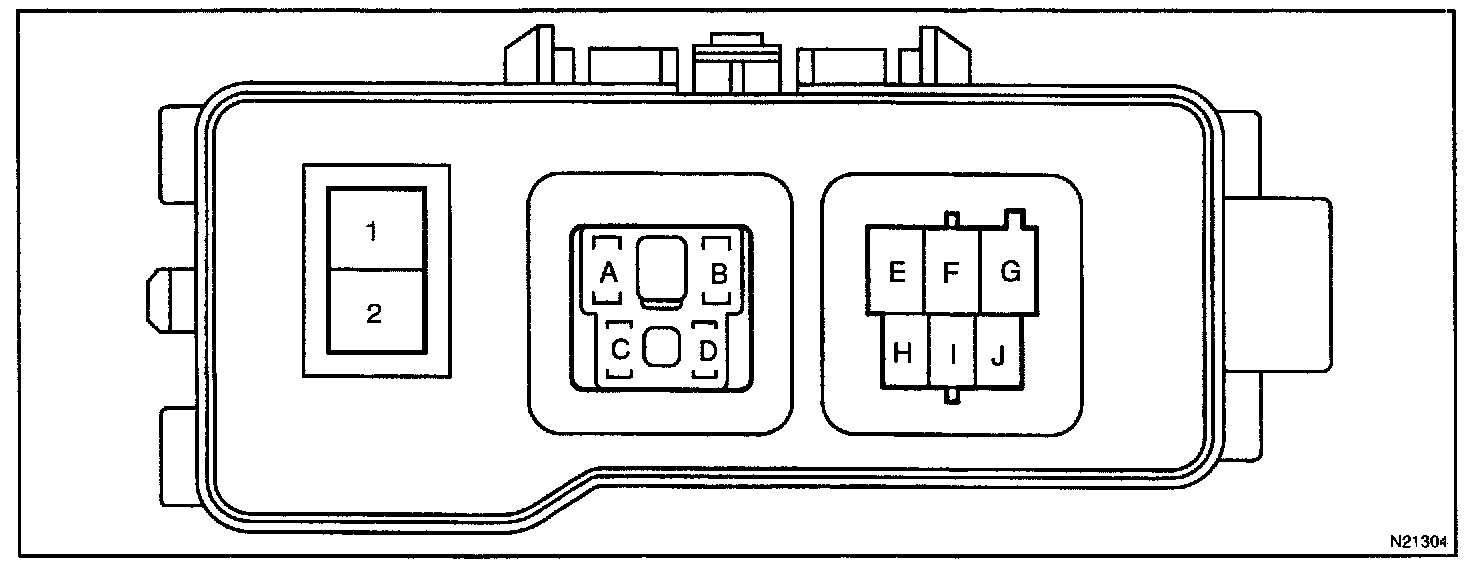

INSPECT ENGINE ROOM No.3 RELAY BLOCK CIRCUIT




a. Remove the fuse from the relay block and inspect the connector on relay block side.
If the circuit is not as specified, inspect the circuits connected to other parts.

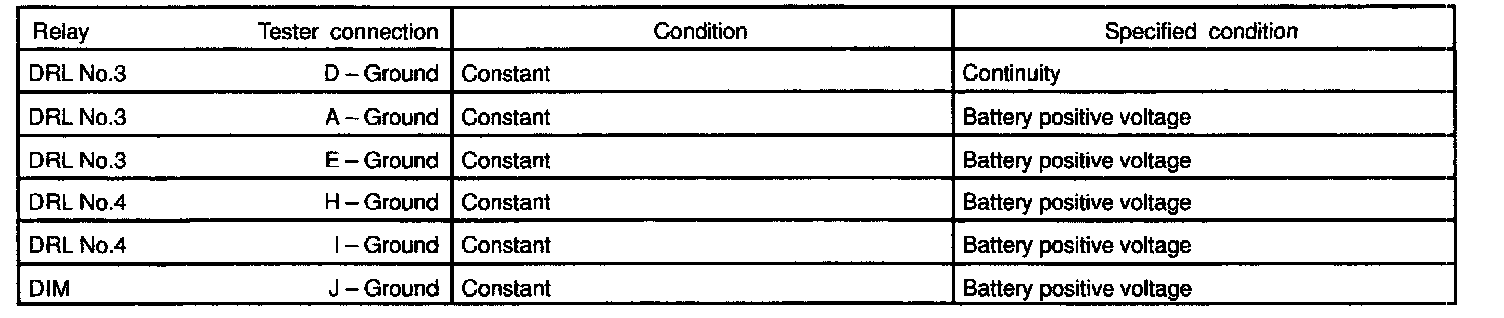

b. Remove the relay from the relay block and inspect the connector on relay block side.
If the circuit is not as specified, inspect the circuits connected to other parts.
