Home >> Lexus >> 2000 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Wiper and Washer Systems

Wiper and Washer Systems

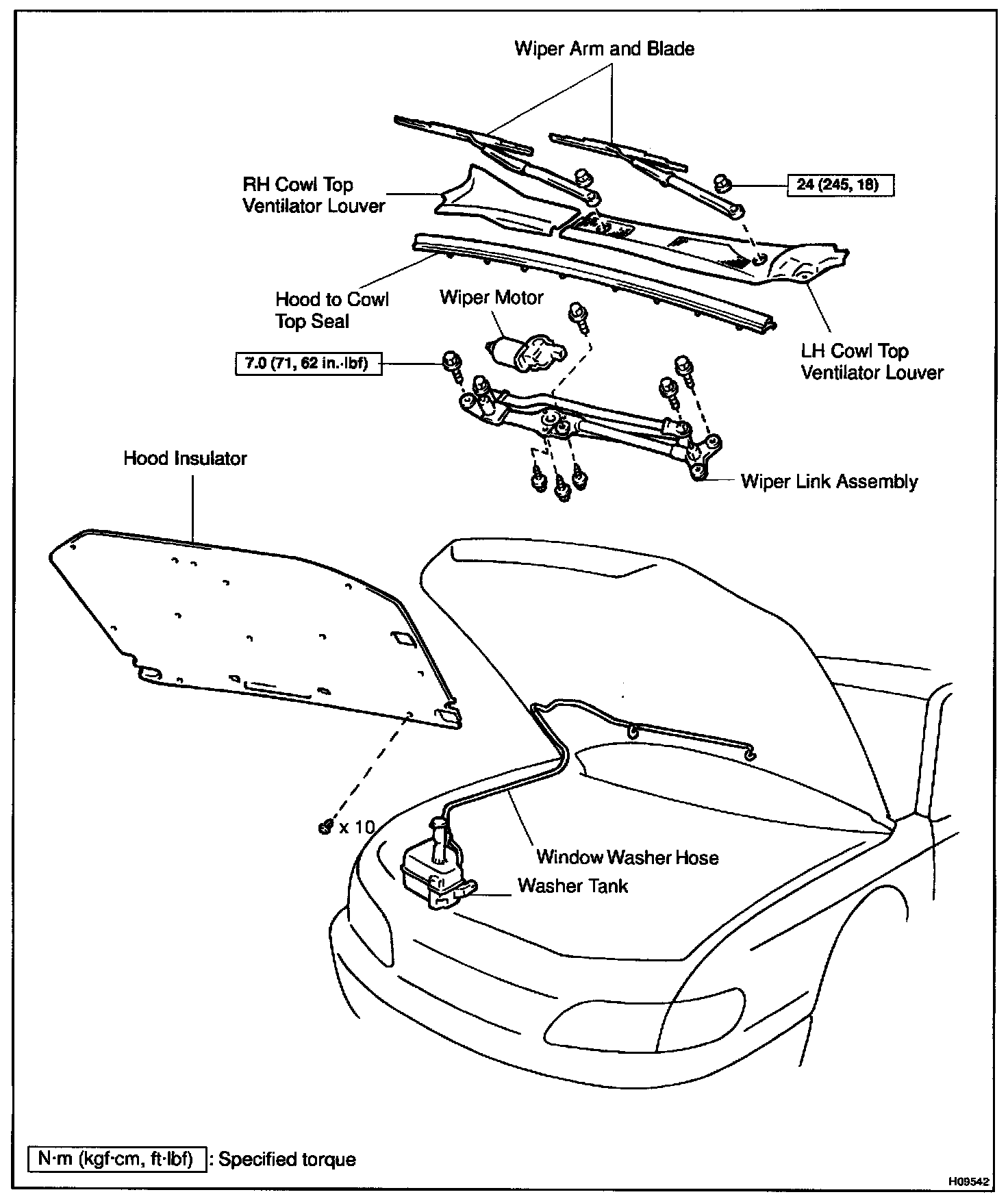

Front Wiper And Washer Components:

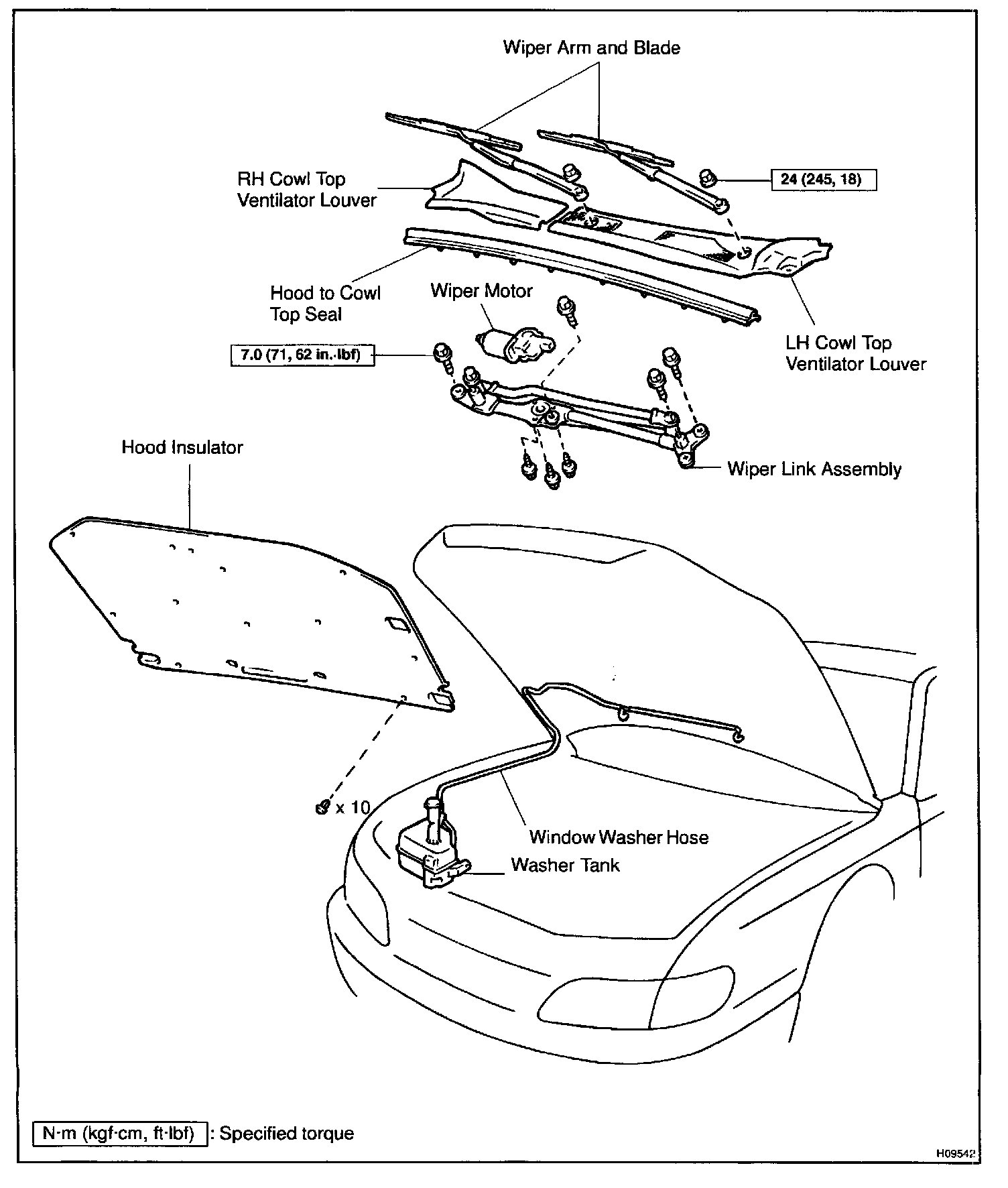

Front Wiper And Washer:
