Home >> Lexus >> 2000 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Brake Master Cylinder

Brake Master Cylinder

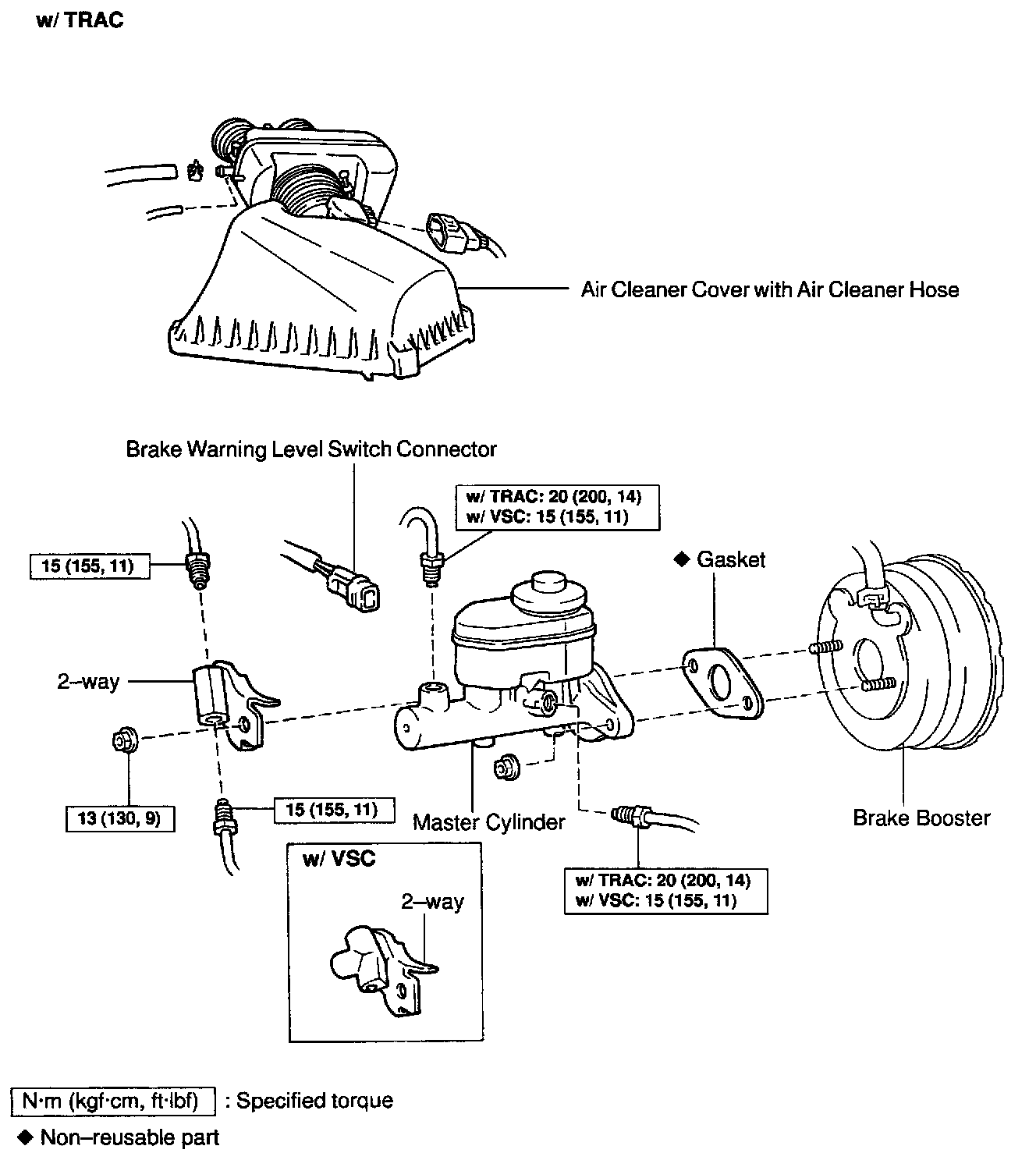

Part 1 Of 2:

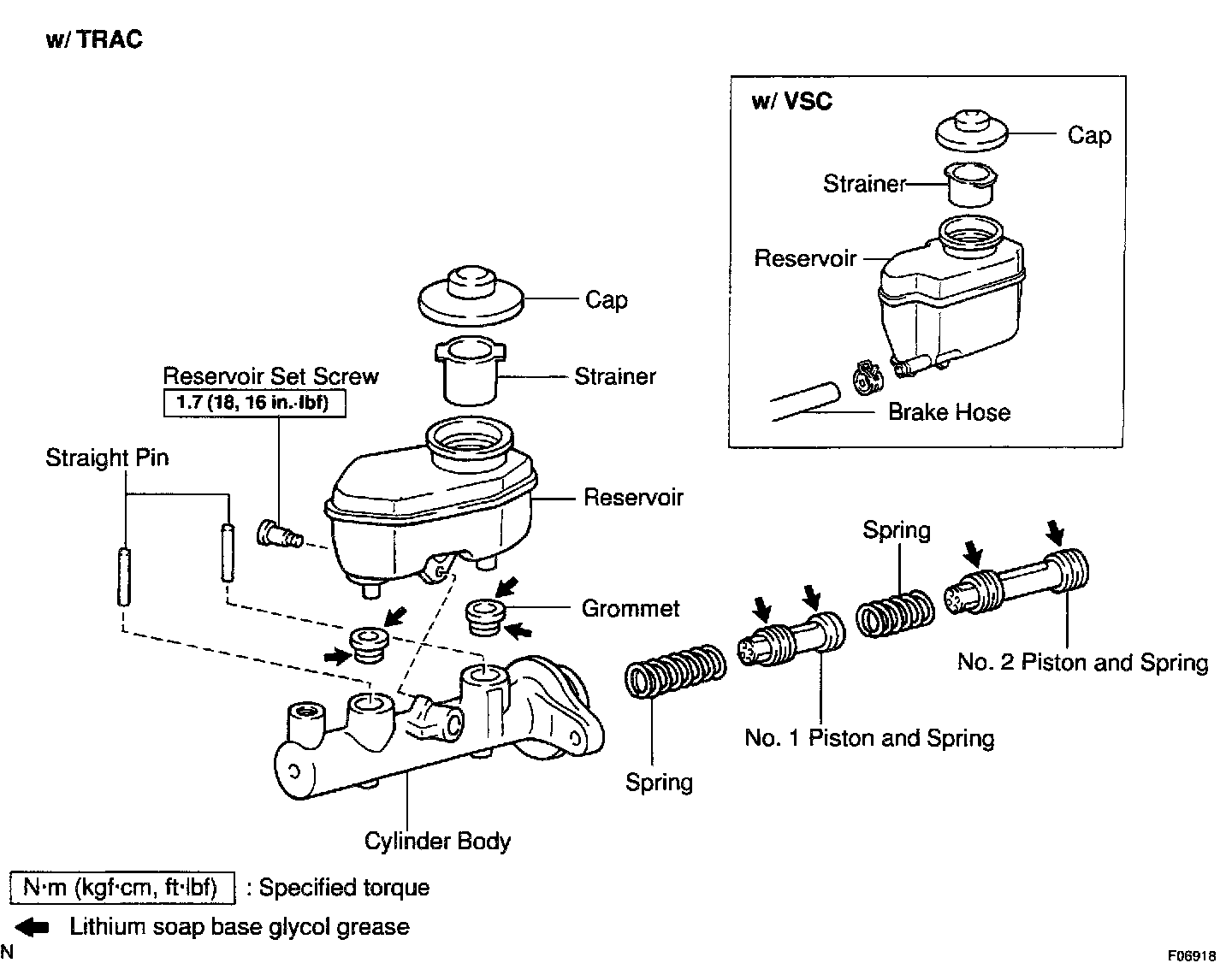

Part 2 Of 2:





MASTER CYLINDER REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
