Home >> Lexus >> 1999 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Ground Locations

Ground Locations




GROUND POINTS

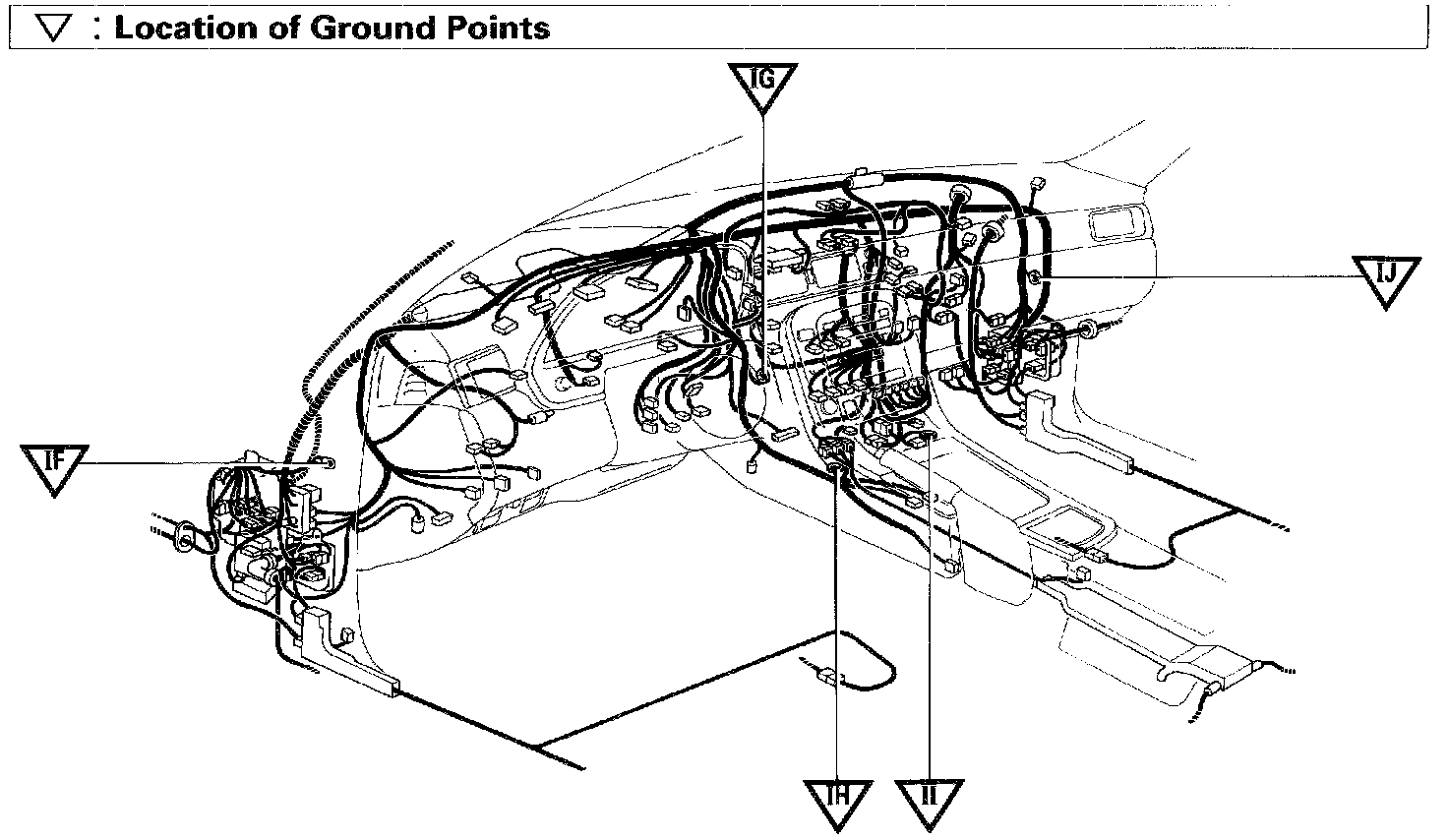

FIG 36

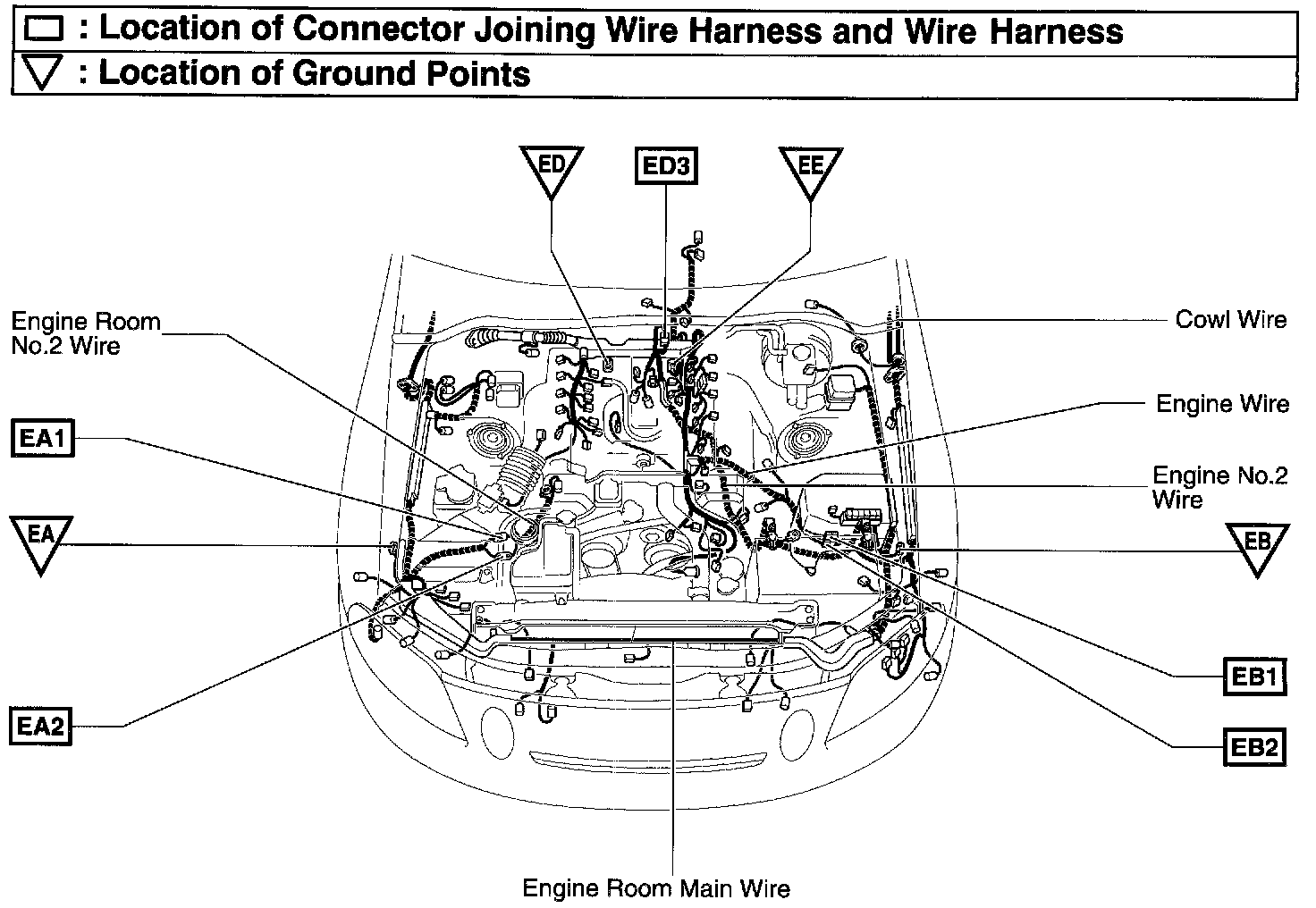

Location Of Ground Points (Fig 40):




FIG 40

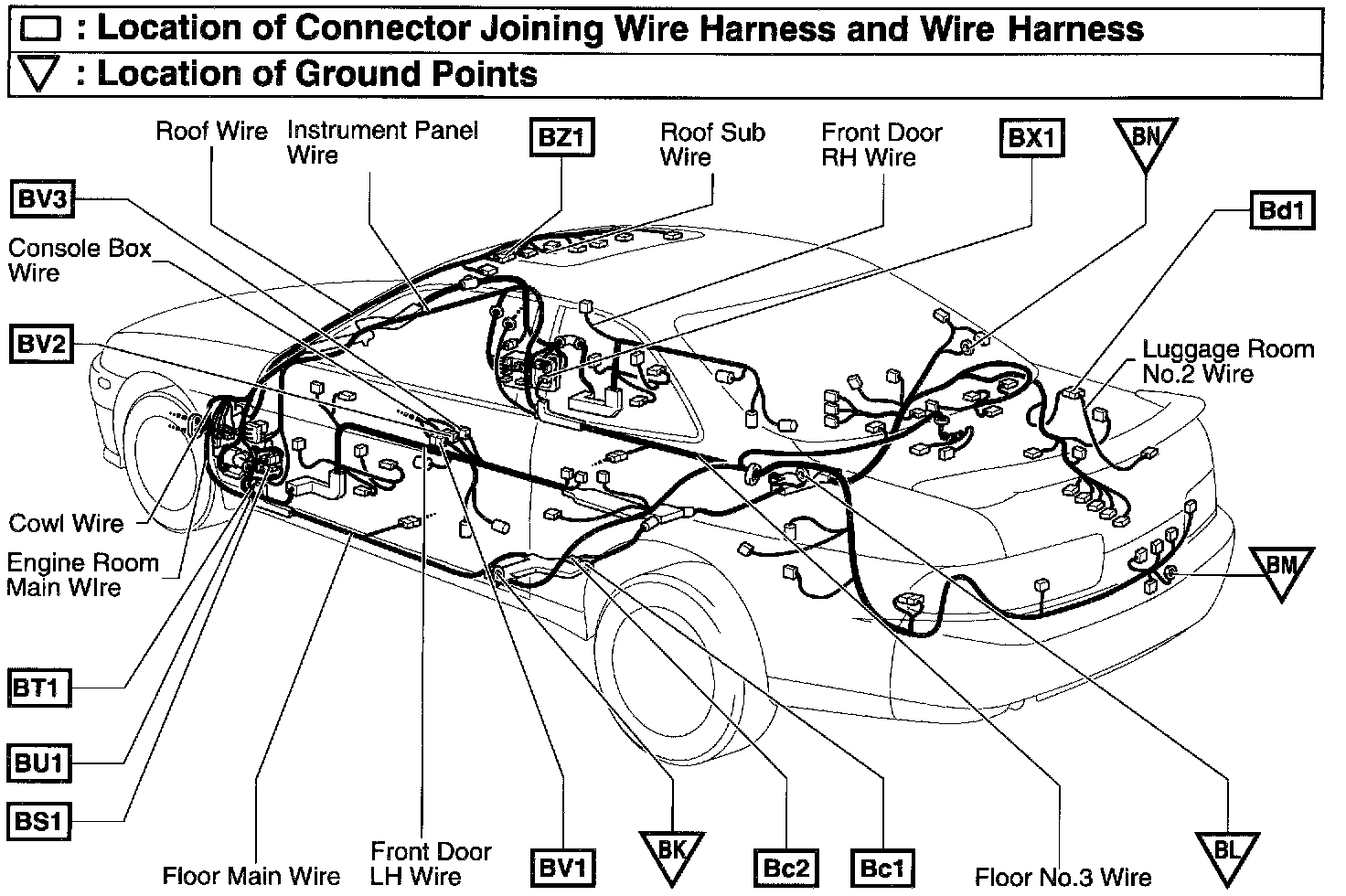

FIG 44
