Splice Locations

Splice Points:

SPLICE POINTS

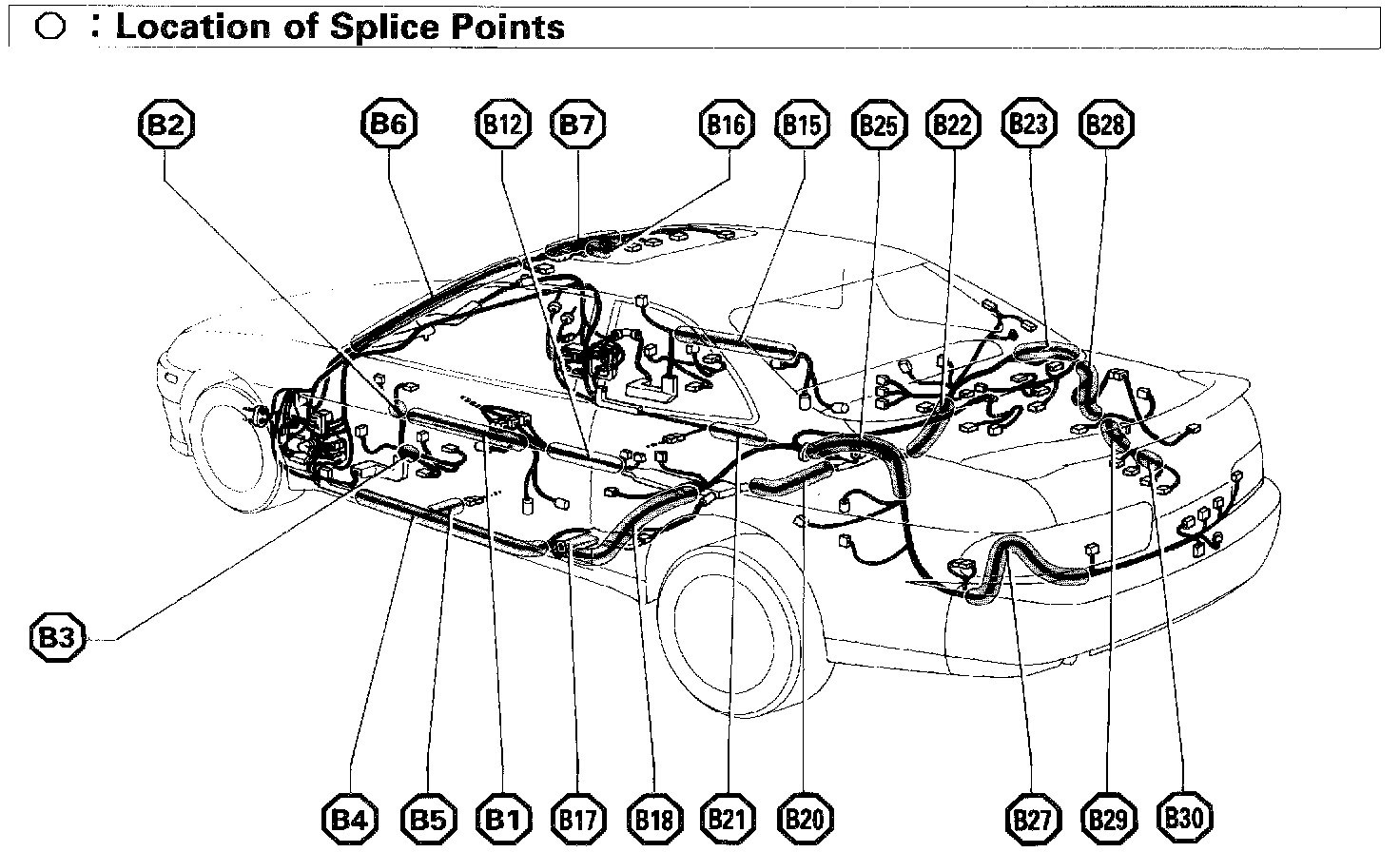

Location Of Splice Points (Fig 36):

FIG 36

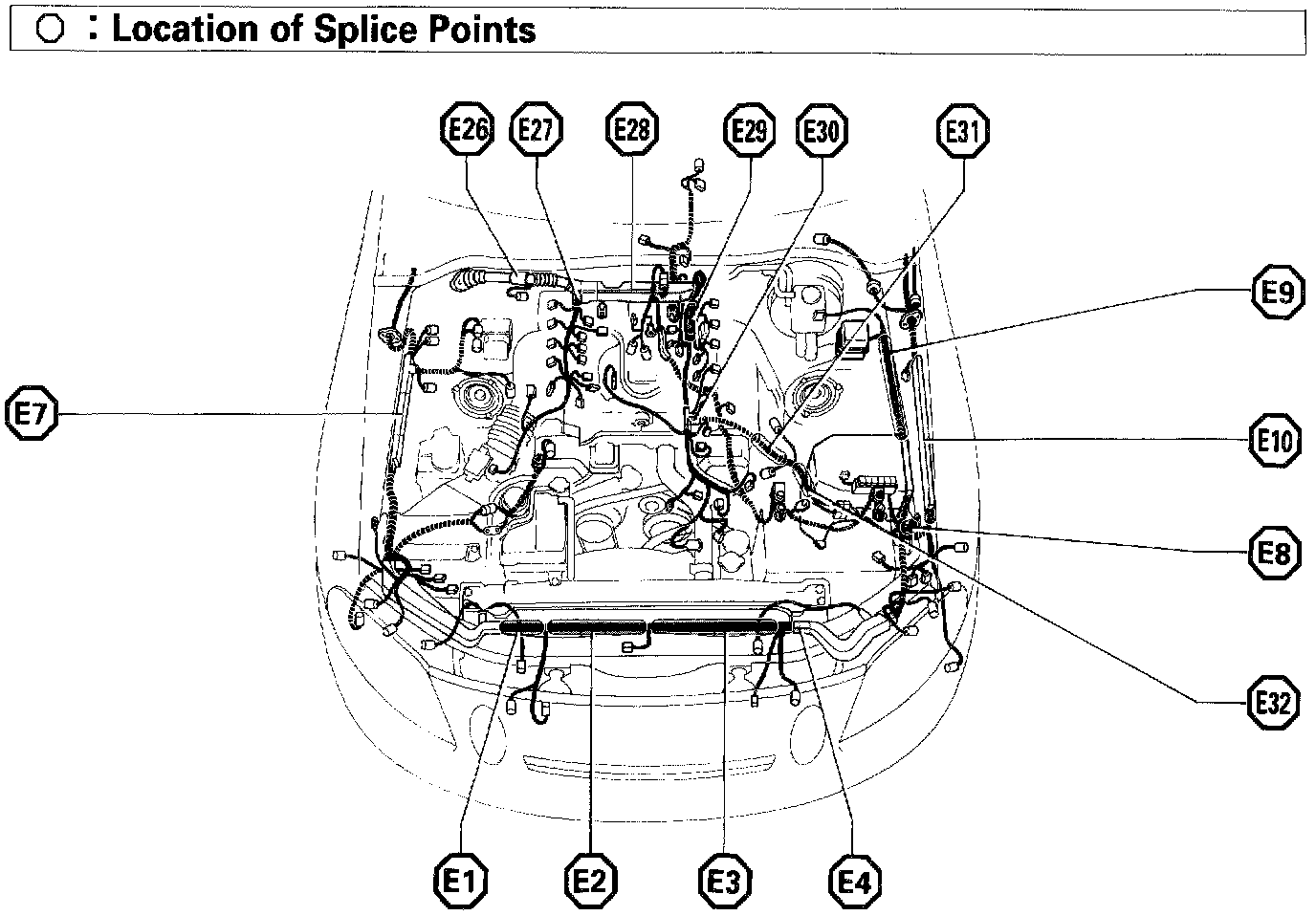

Location Of Splice Points (Fig 42):

FIG 42

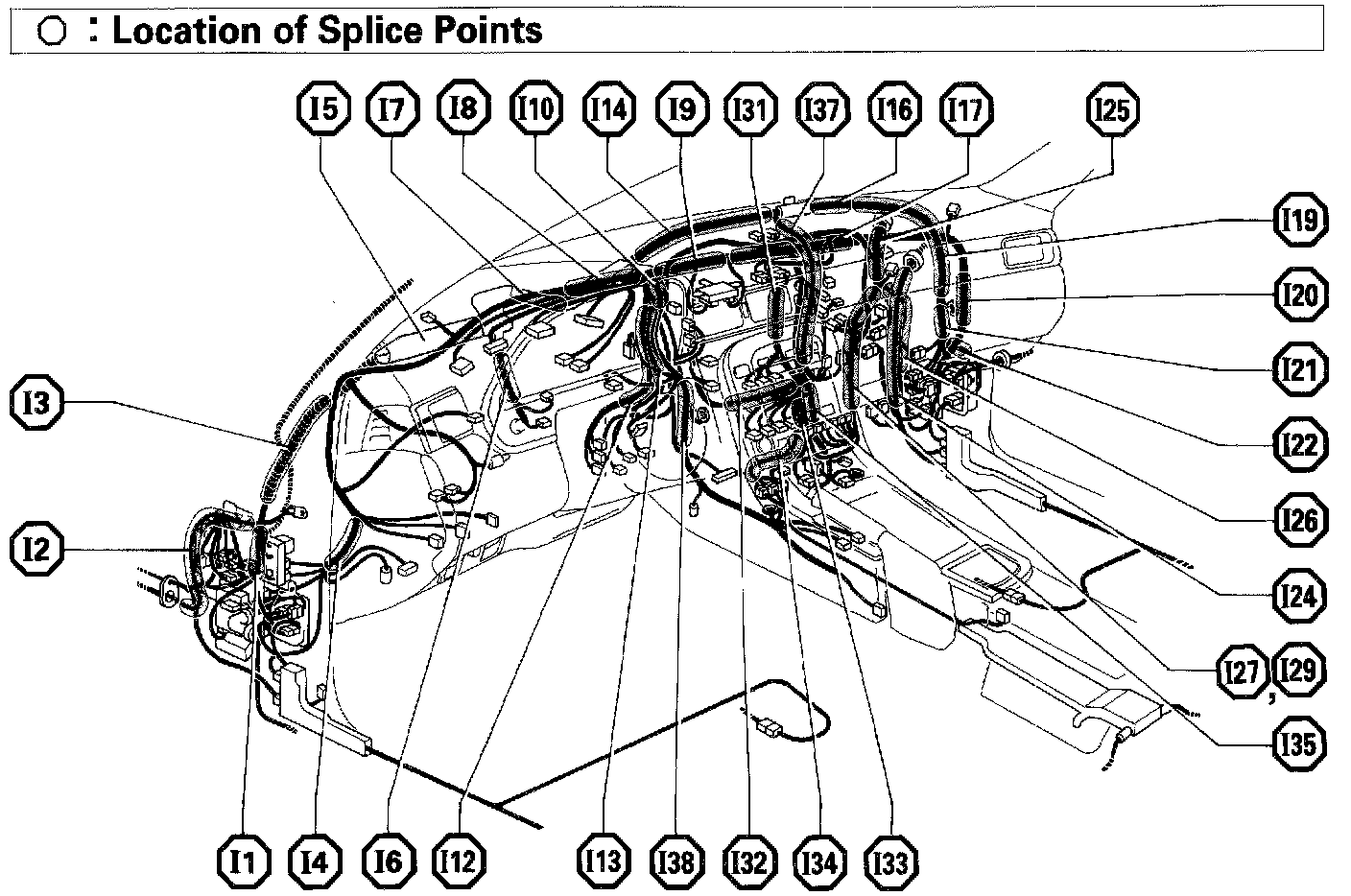

Location Of Splice Points (Fig 44):

FIG 44
