Home >> Lexus >> 1998 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Interior Lighting Module >> Testing and Inspection

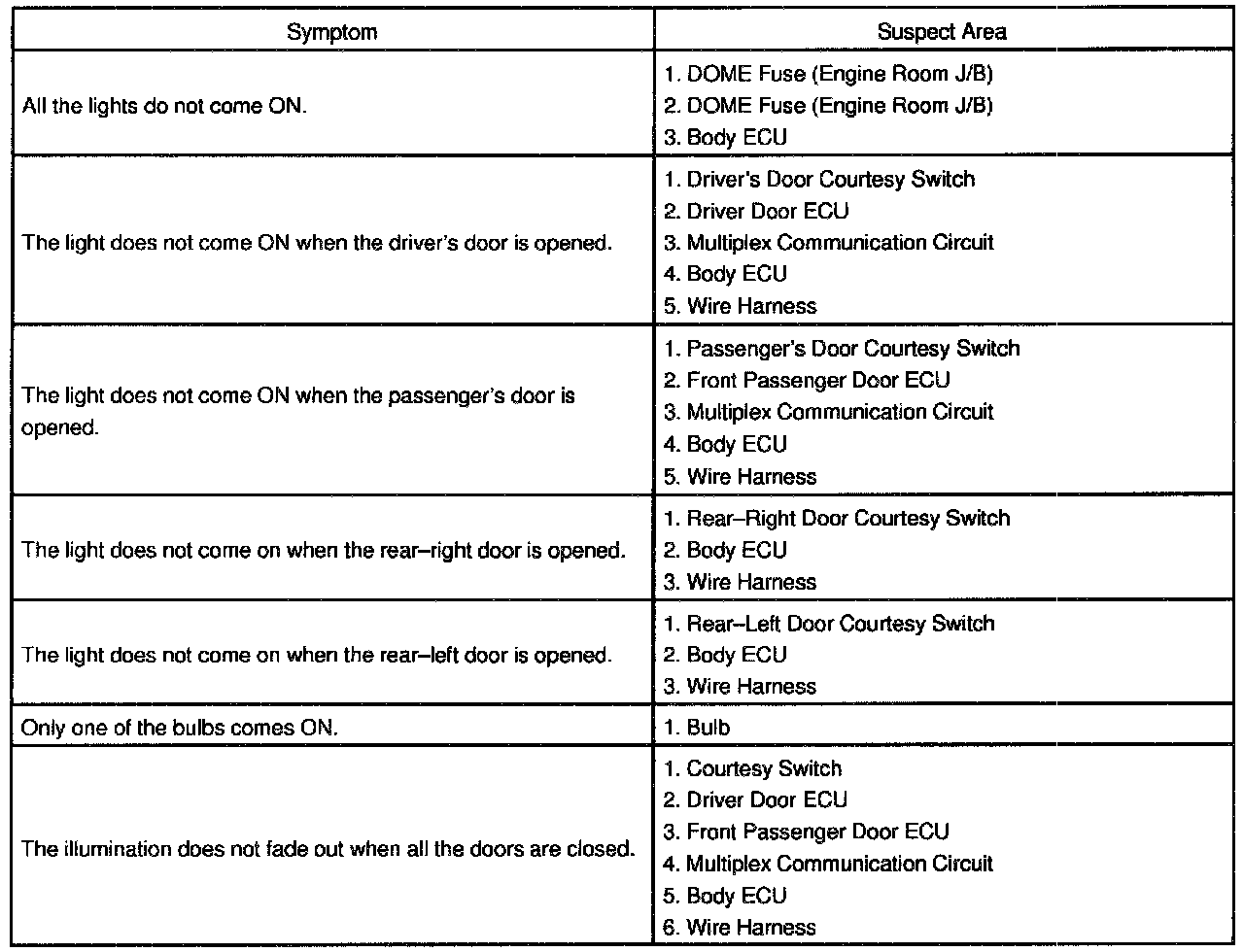

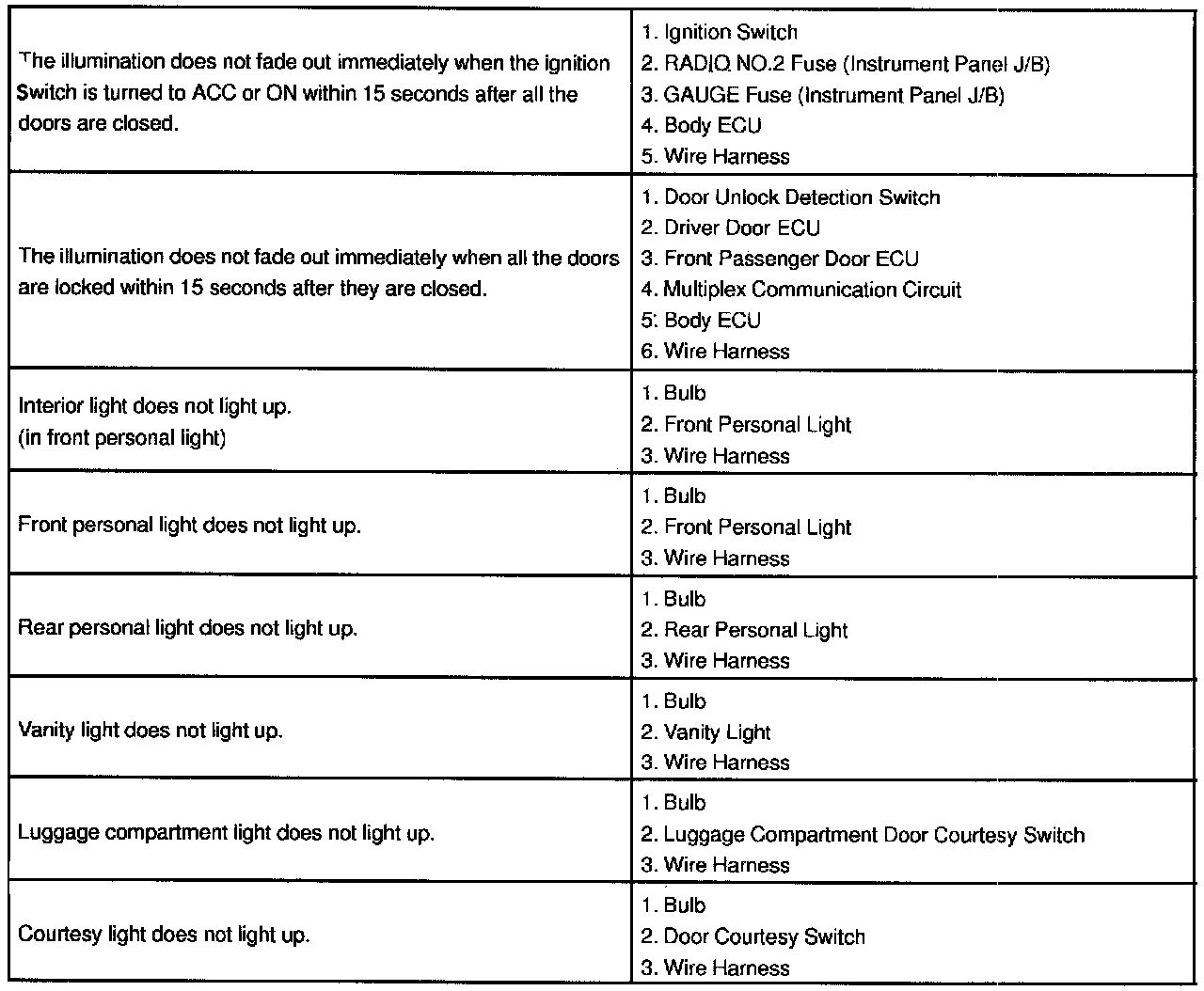

Interior Lighting Module: Testing and Inspection







This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.
