Steering Column

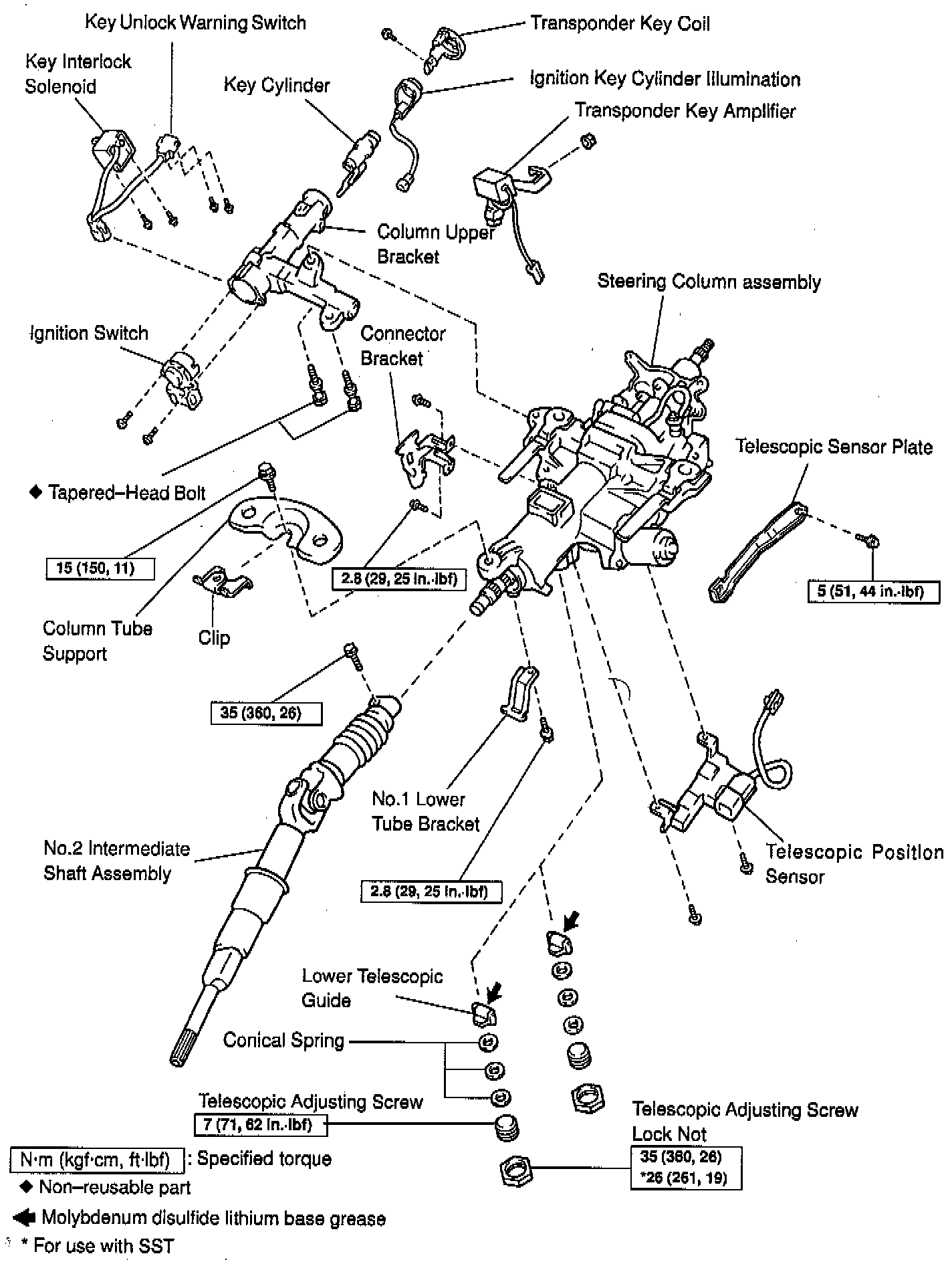

Exploded View Of Power Tilt And Power Telescopic Steering Column (Part 1 Of 3):



Exploded View Of Power Tilt And Power Telescopic Steering Column (Part 2 Of 3):



Exploded View Of Power Tilt And Power Telescopic Steering Column (Part 3 Of 3):
