Timing Belt

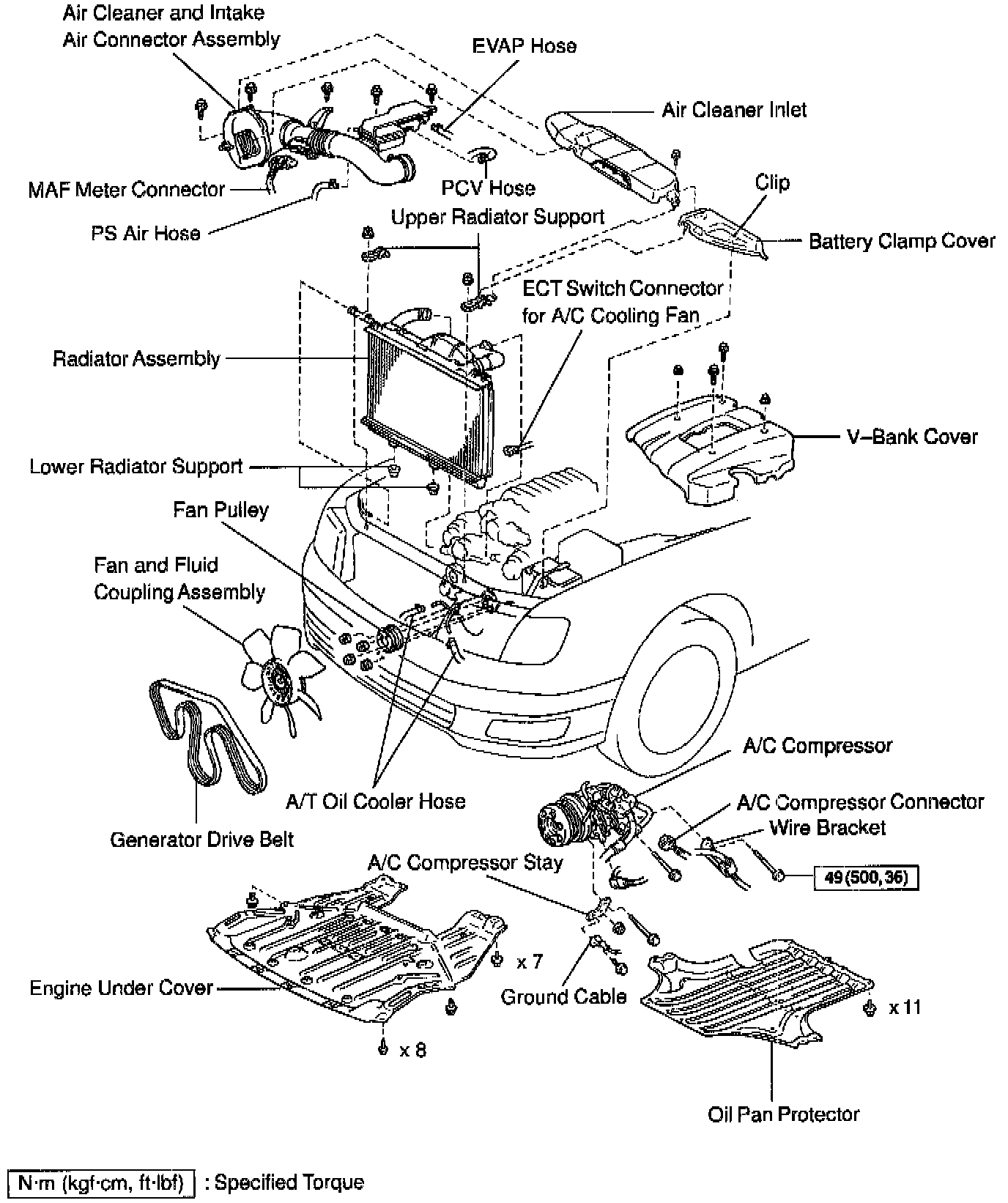

UNDERHOOD VIEW

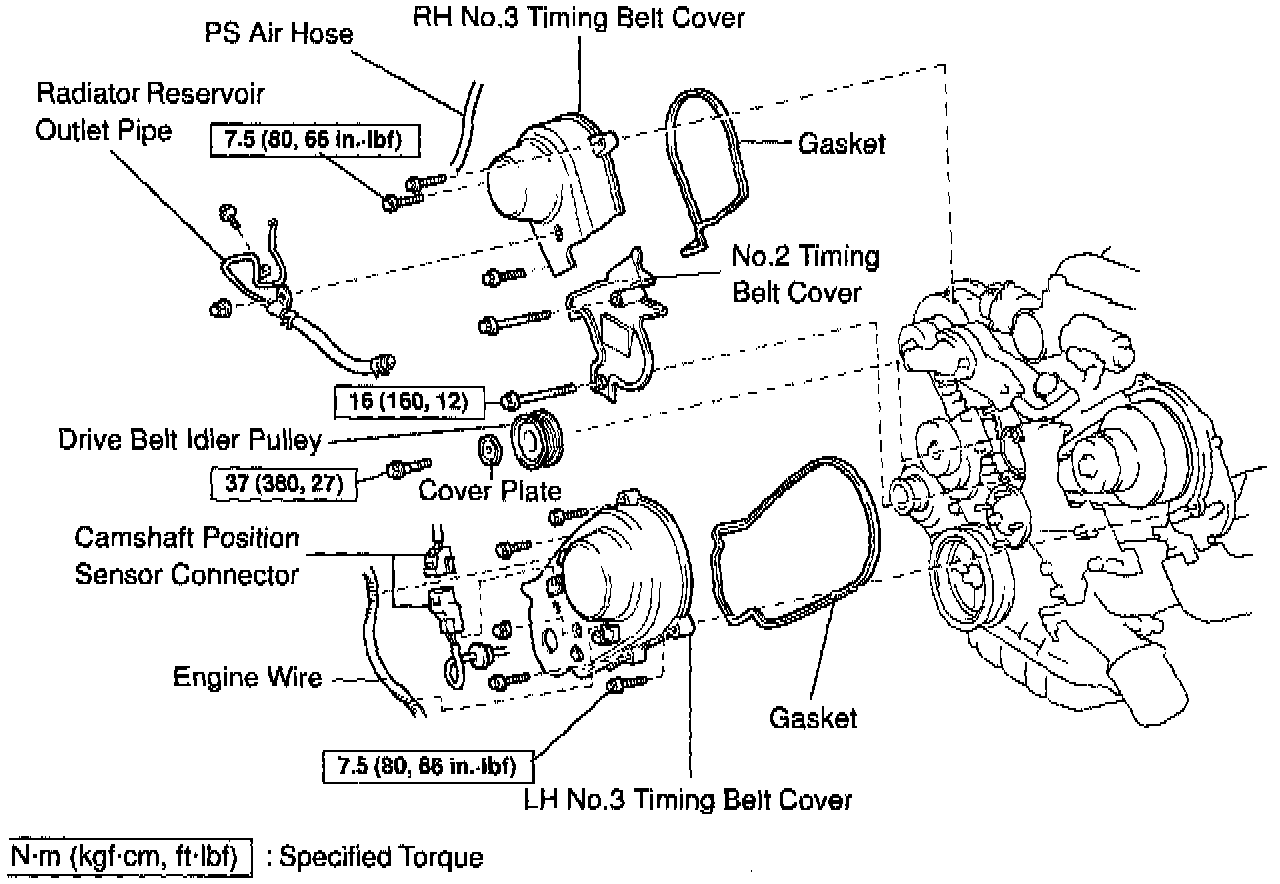

RIGHT AND LEFT NO.3 TIMING BELT COVERS

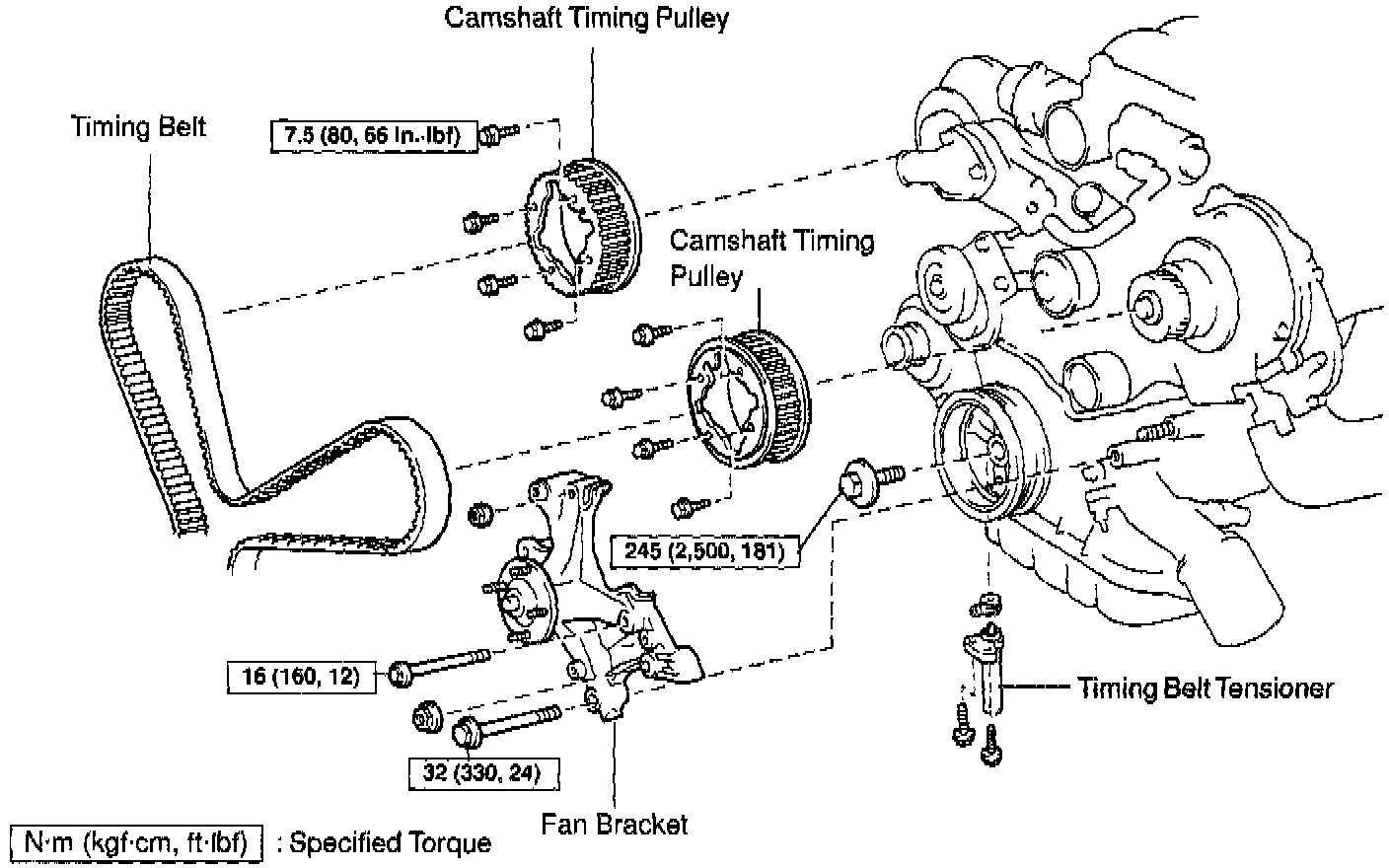

TIMING BELT AND RELATED COMPONENTS

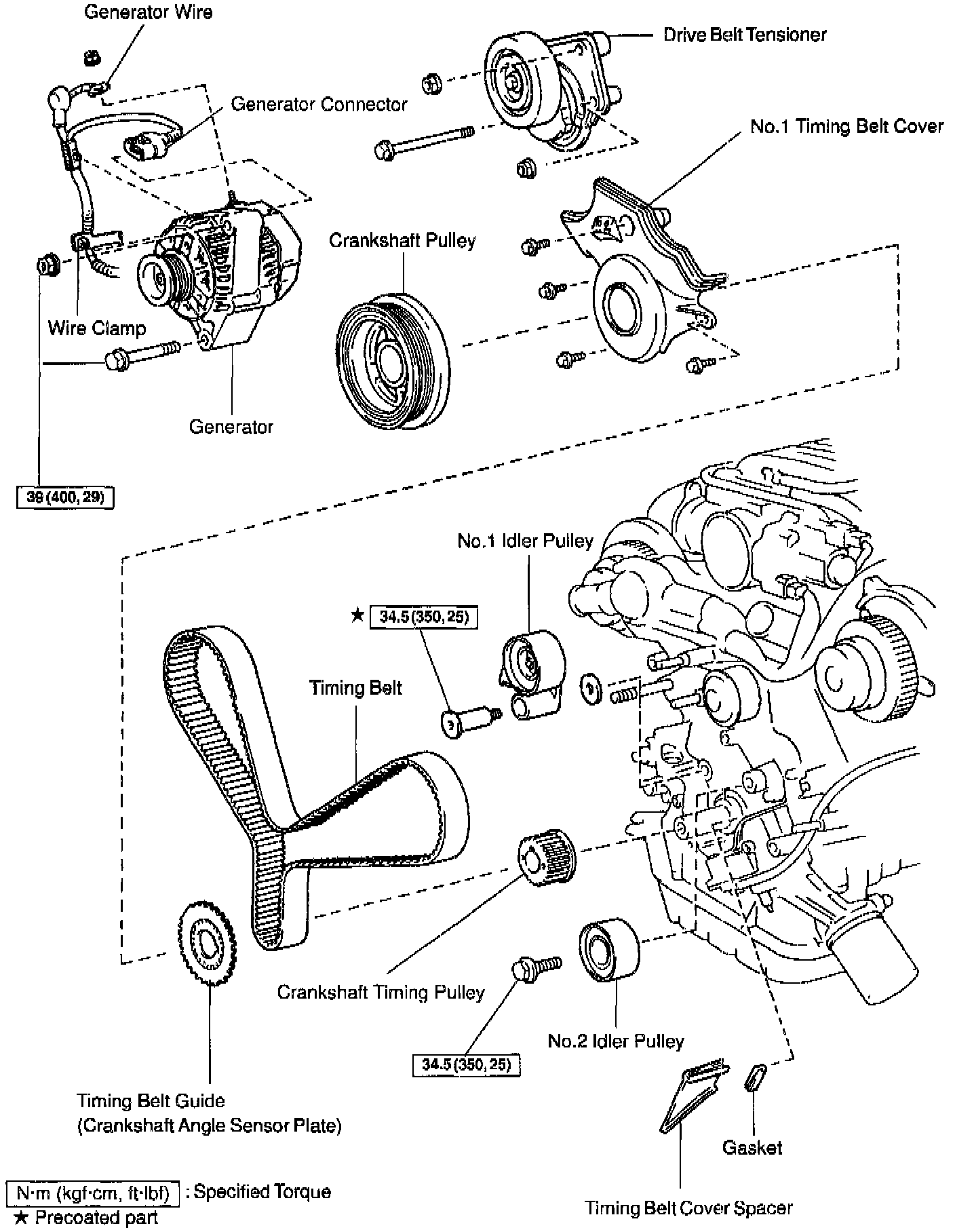

TIMING BELT, NO.1 AND NO.2 IDLER PULLEY
UNDERHOOD VIEW
RIGHT AND LEFT NO.3 TIMING BELT COVERS
TIMING BELT AND RELATED COMPONENTS
TIMING BELT, NO.1 AND NO.2 IDLER PULLEY
