Oil Pump, Engine

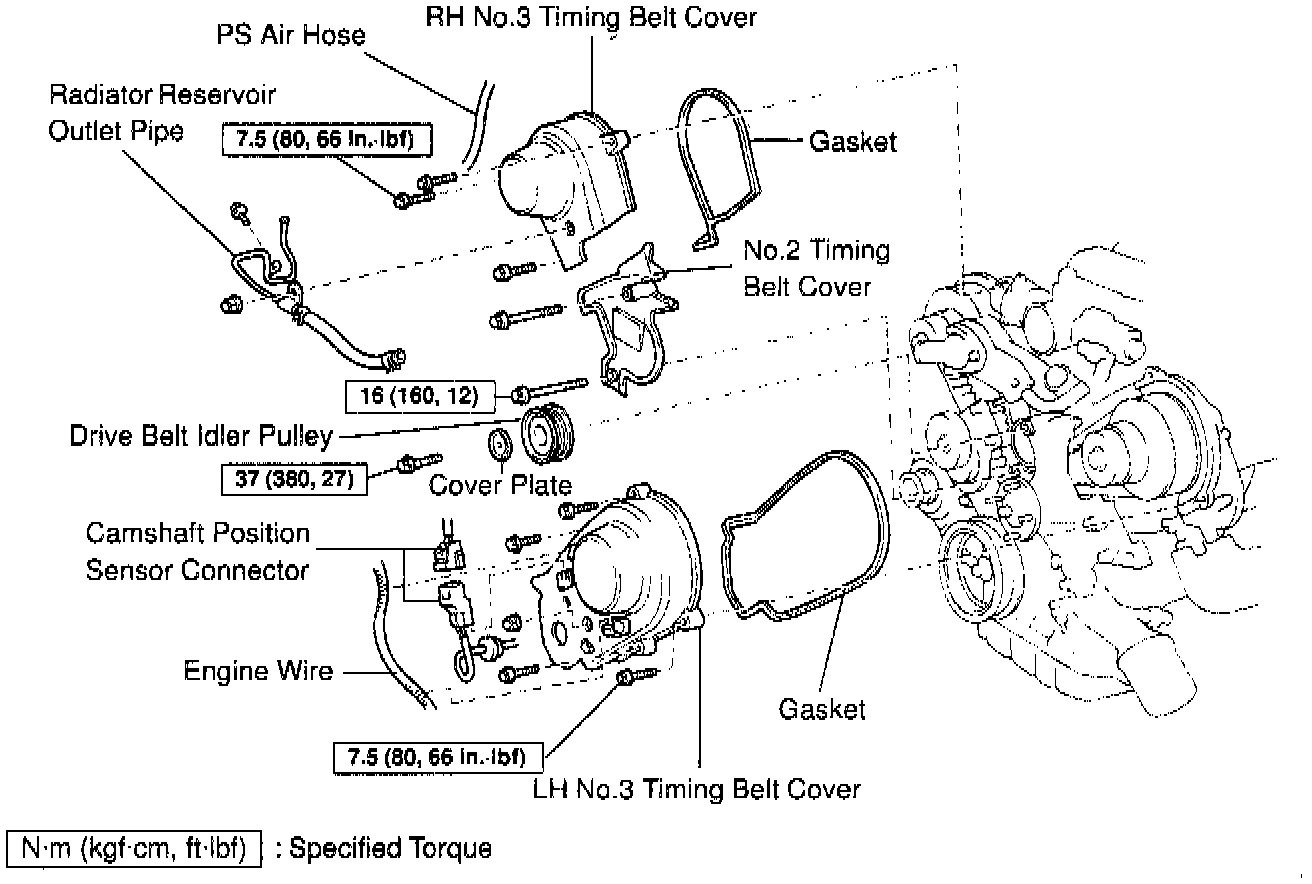

TIMING BELT COVERS

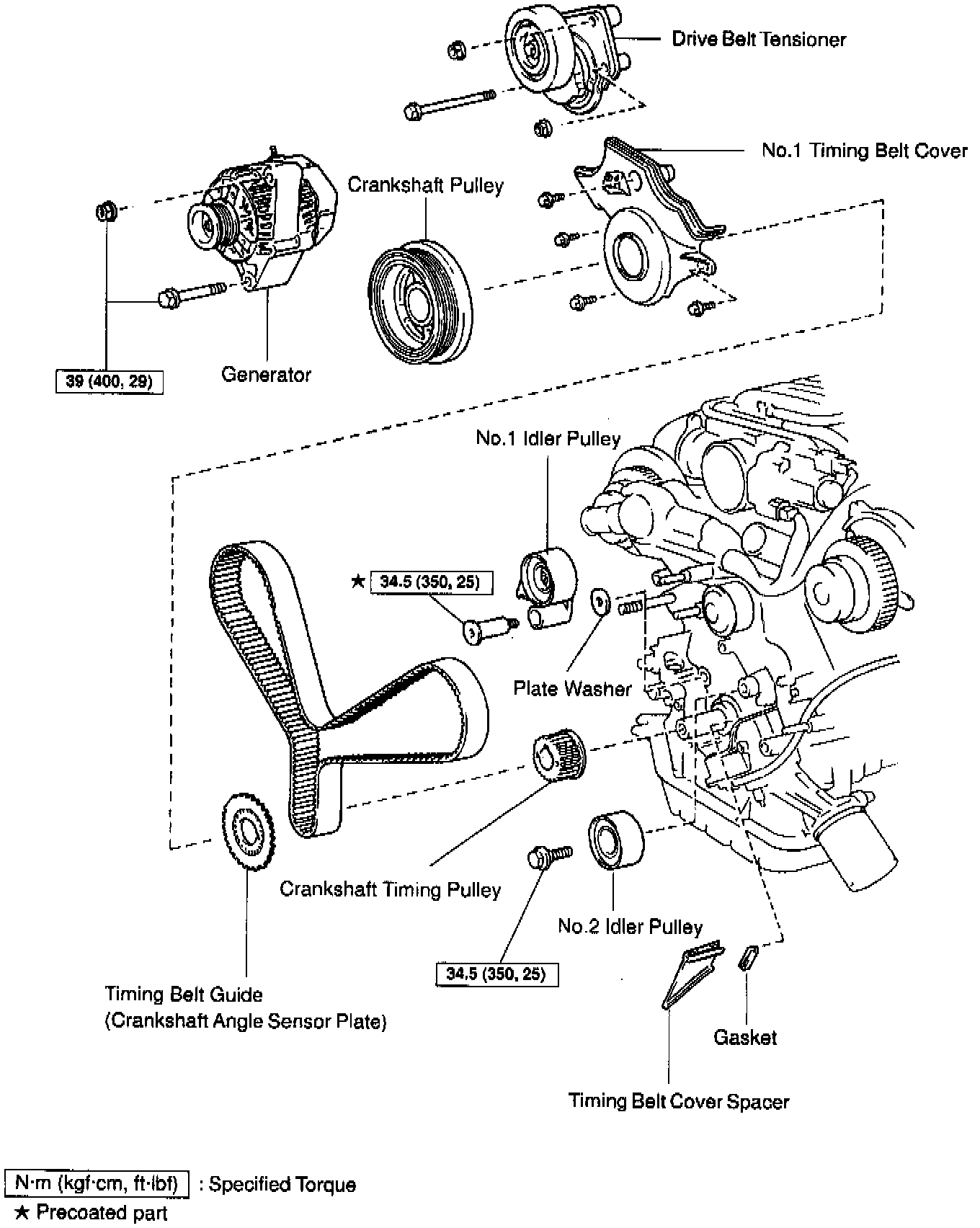

TIMING BELT AND FAN BRACKET COMPONENTS





NO.1 AND NO.2 IDLER PULLEYS

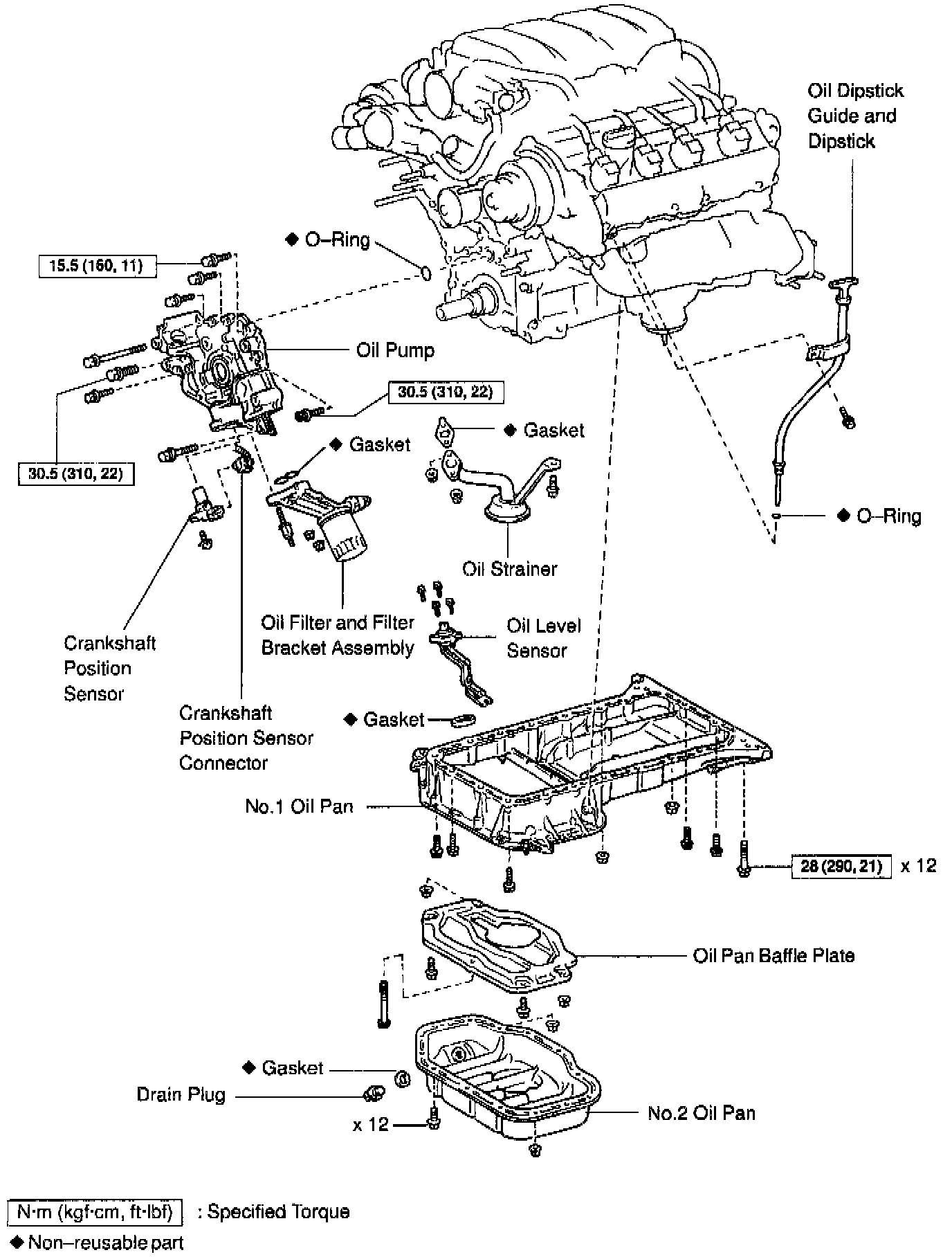

CYLINDER BLOCK, NO.1 AND NO.2 OIL PANS





OIL PUMP
