Oil Pump, Engine

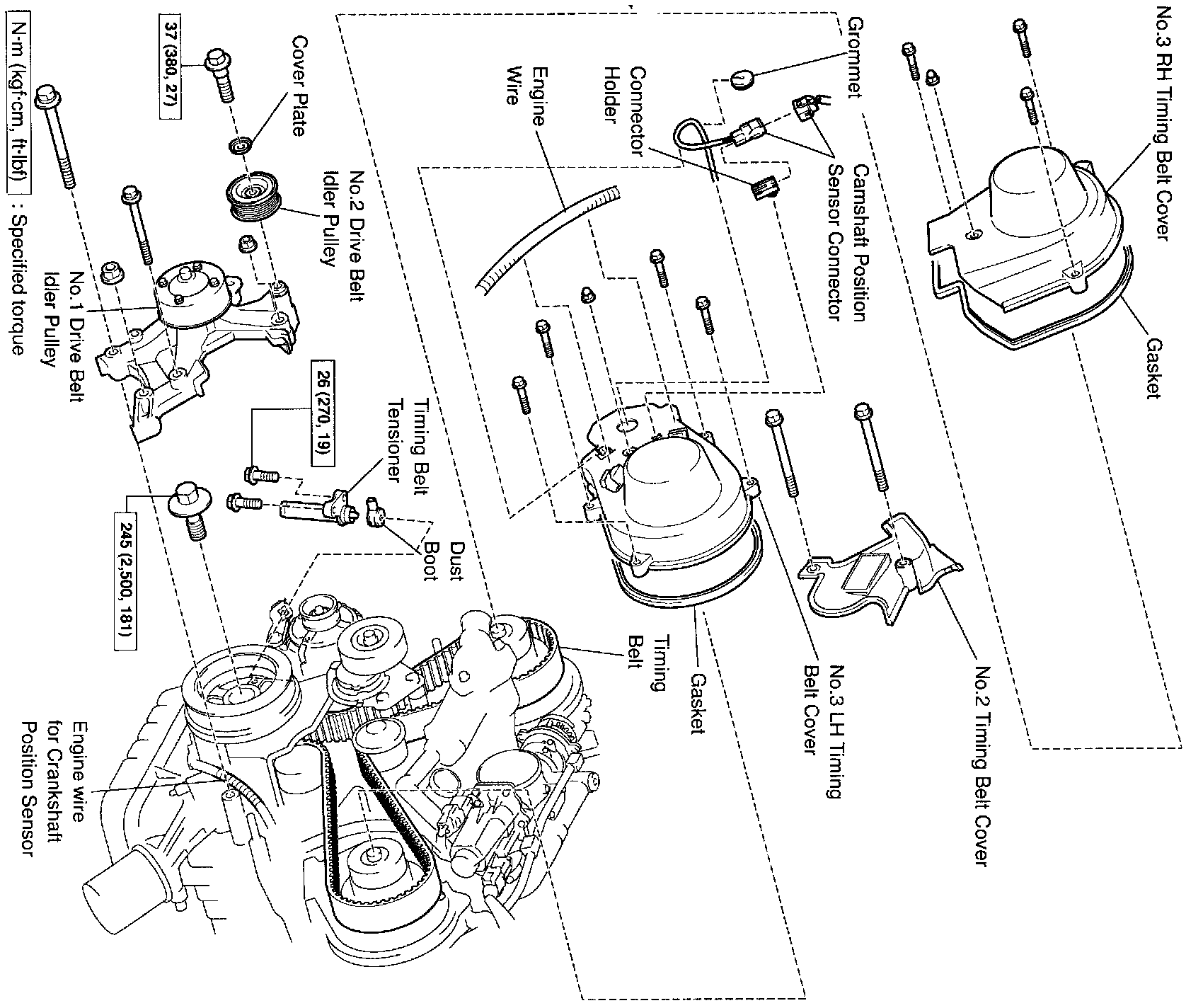

TIMING BELT COVERS

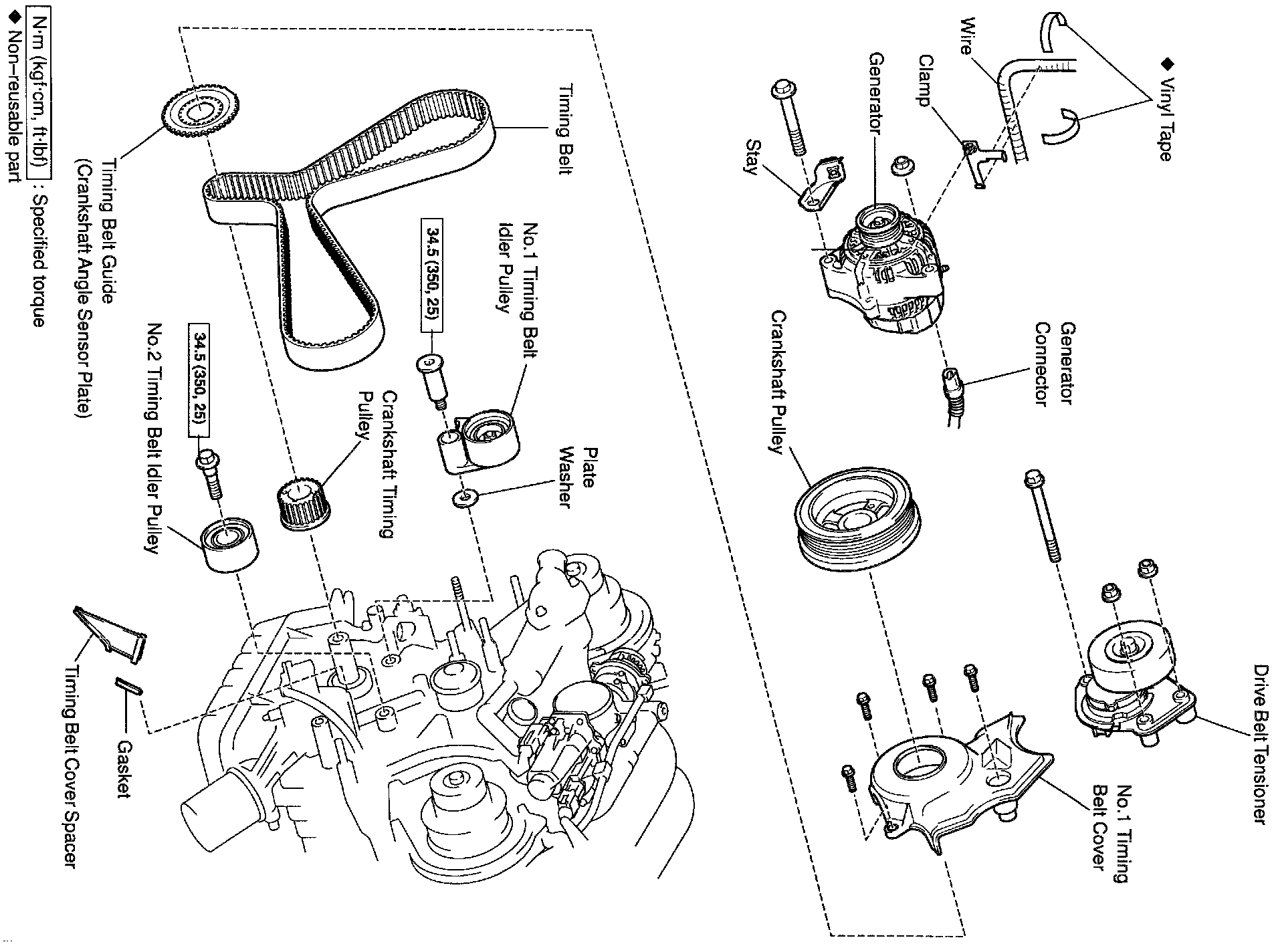

TIMING BELT AND RELATED COMPONENTS

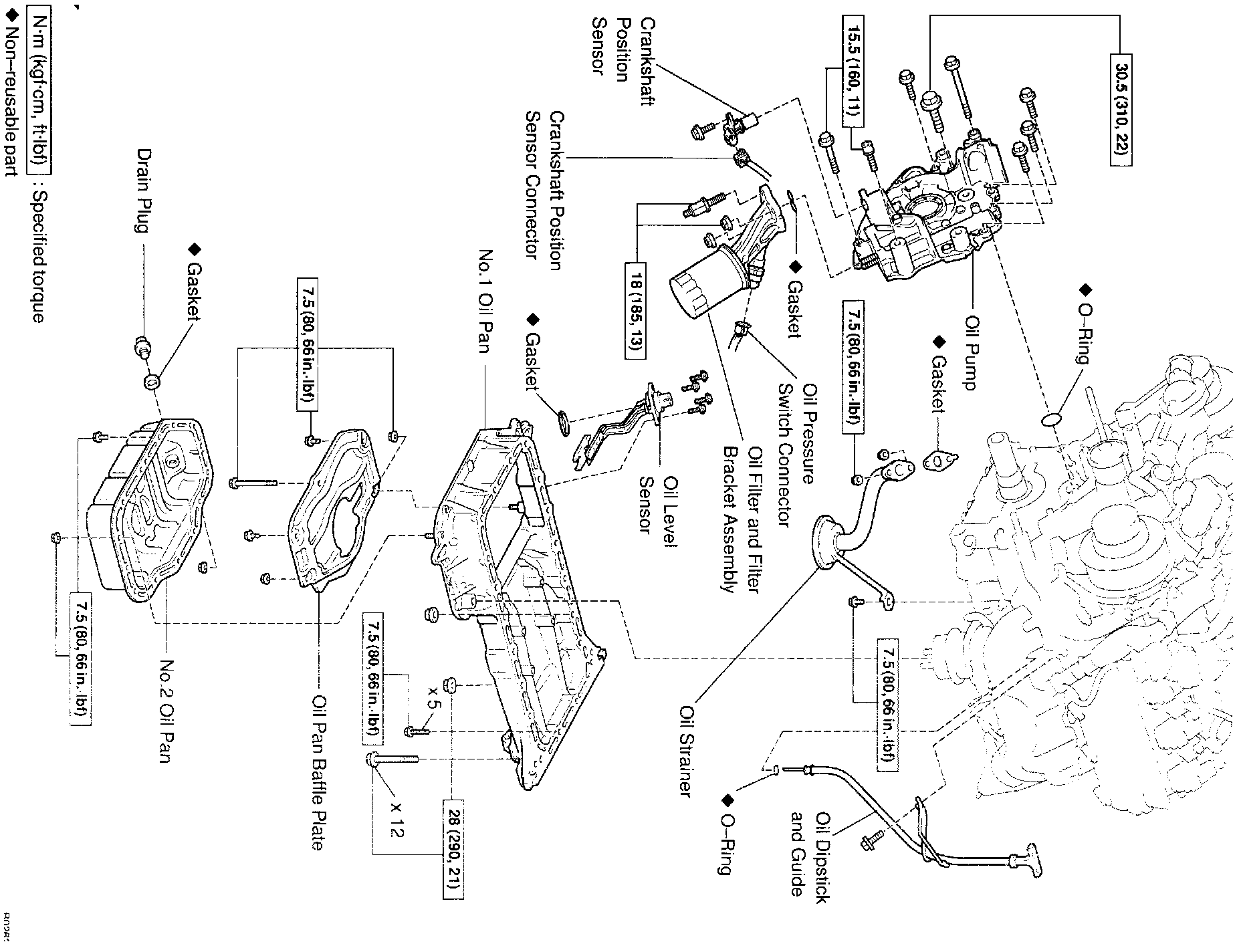

NO.1 AND NO.2 OIL PANS, OIL PUMP AND RELATED COMPONENTS

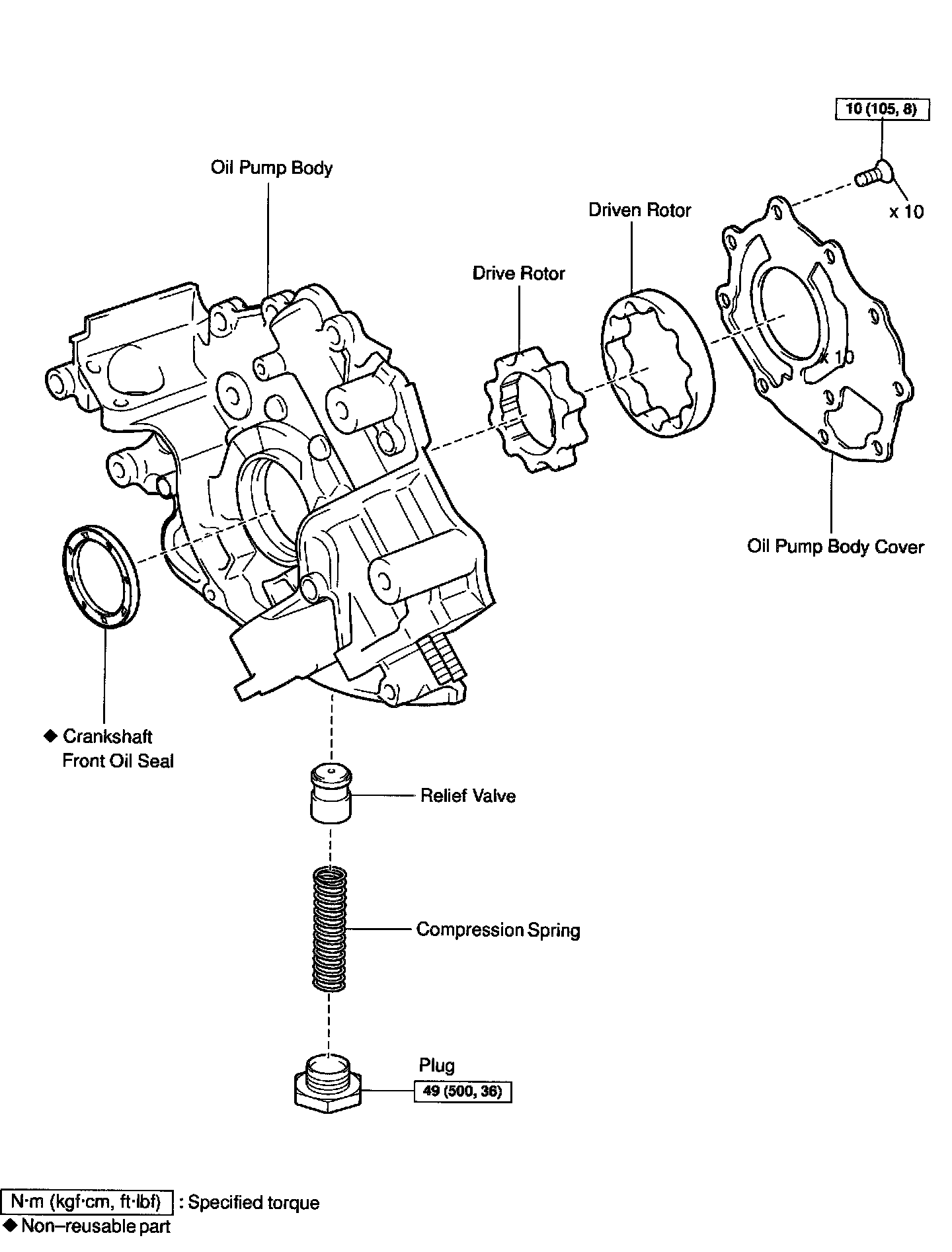

OIL PUMP
