Memory Positioning Switch: Testing and Inspection

M1, M2 Set Switch Circuit

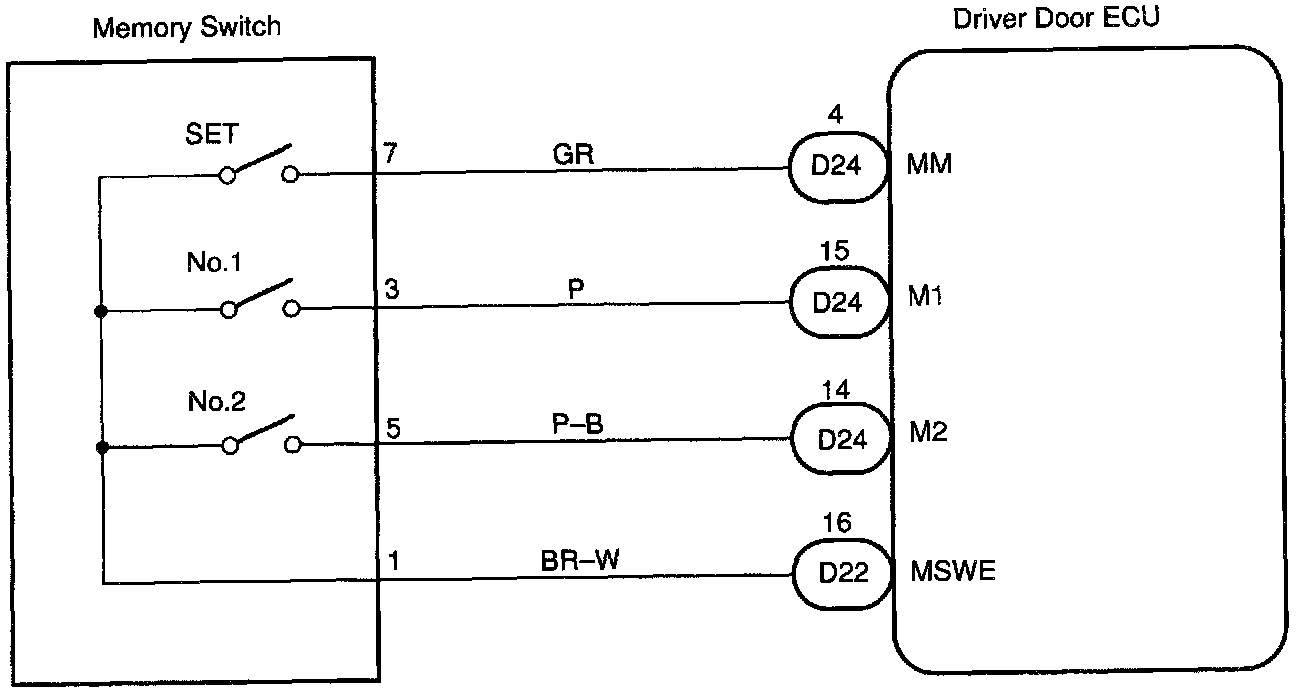

WIRING DIAGRAM

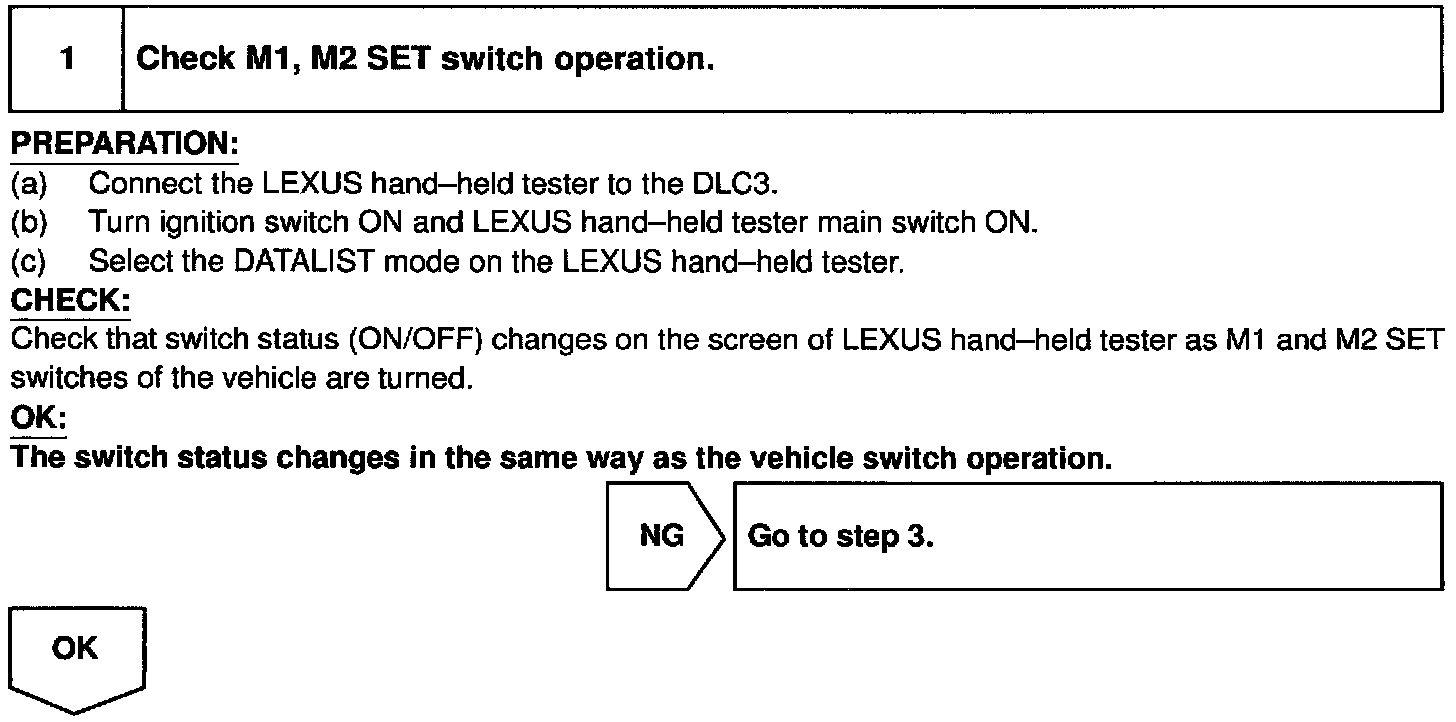

Step 1:

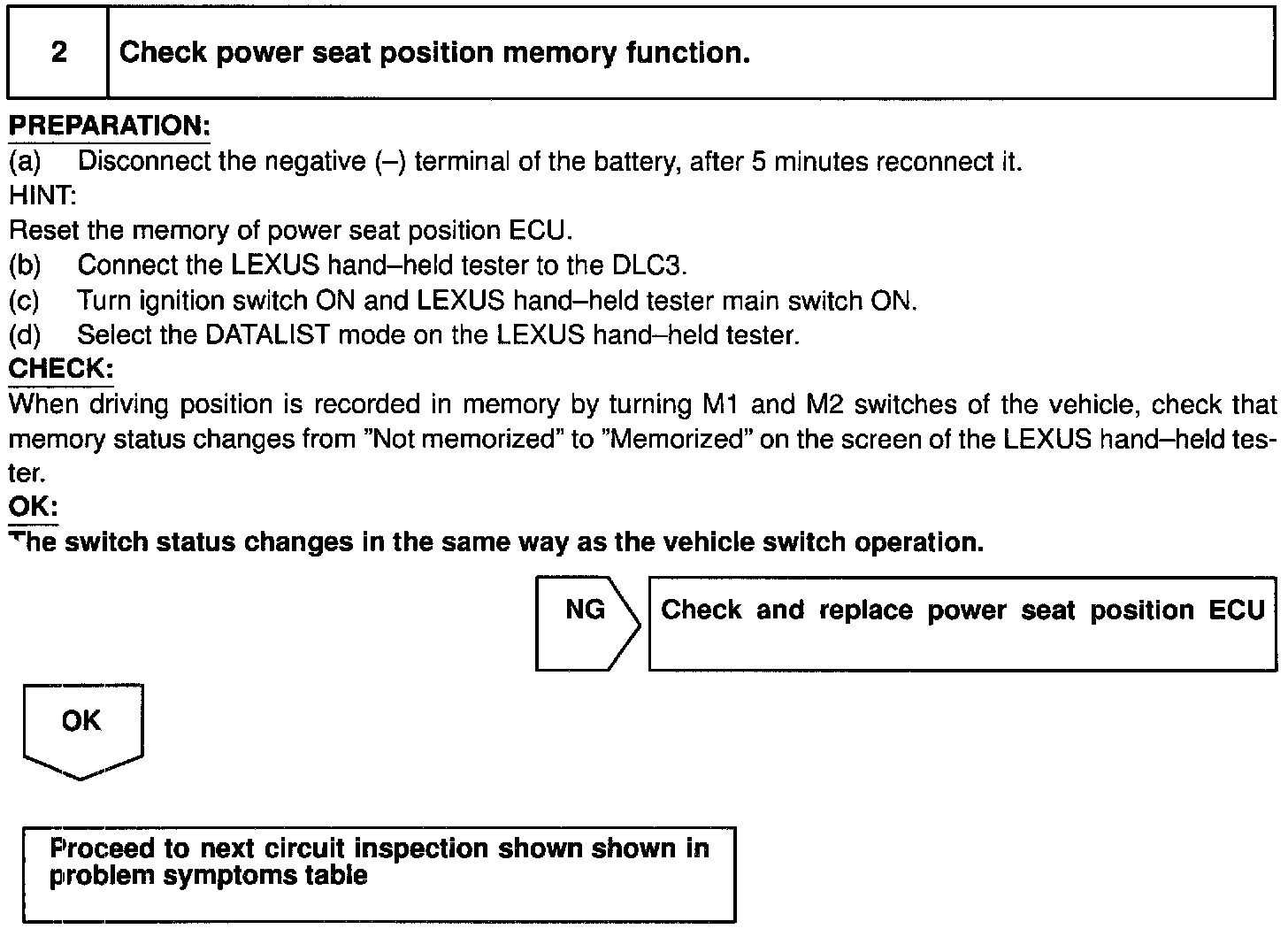

Step 2:

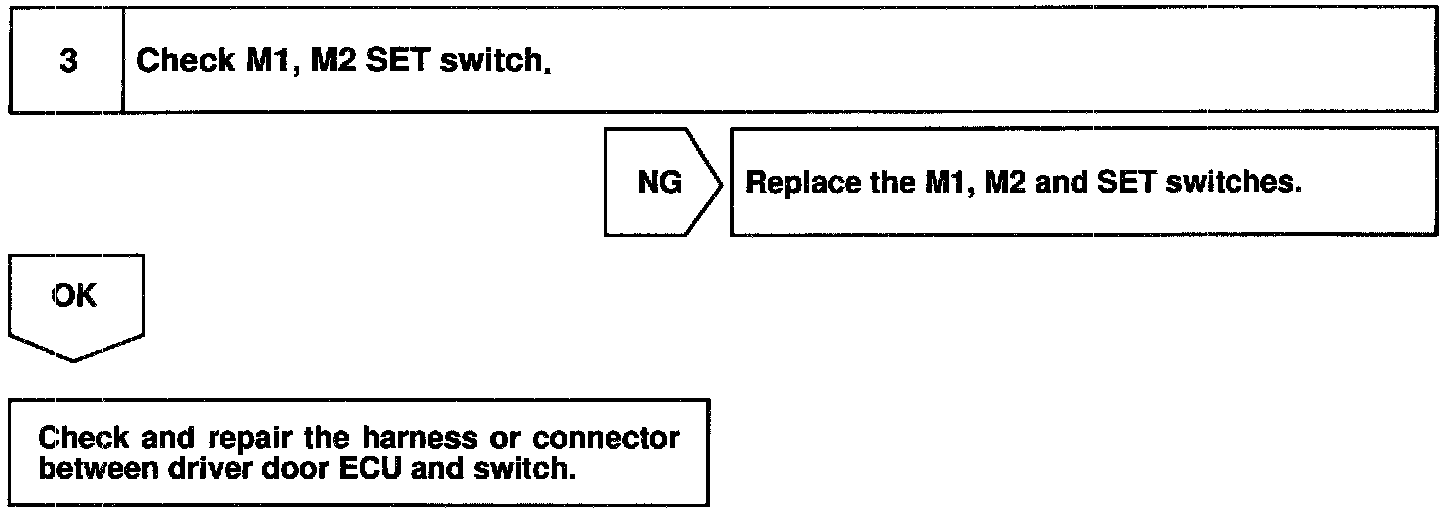

Step 3:

INSPECTION PROCEDURE

HINT: If there is not the LEXUS hand-held tester begin with STEP 3.
