Oil Pump, Engine

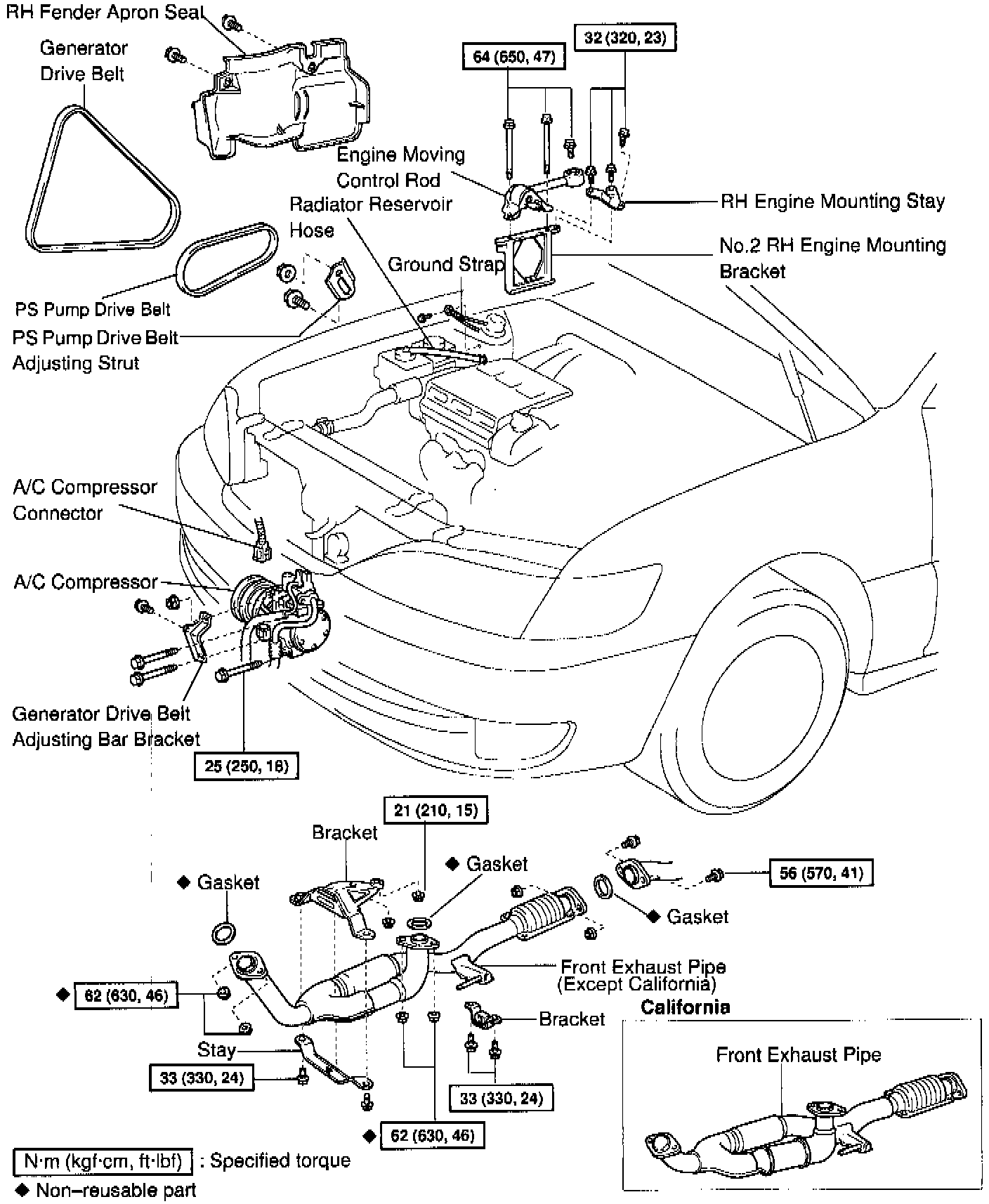

UNDERHOOD VIEW

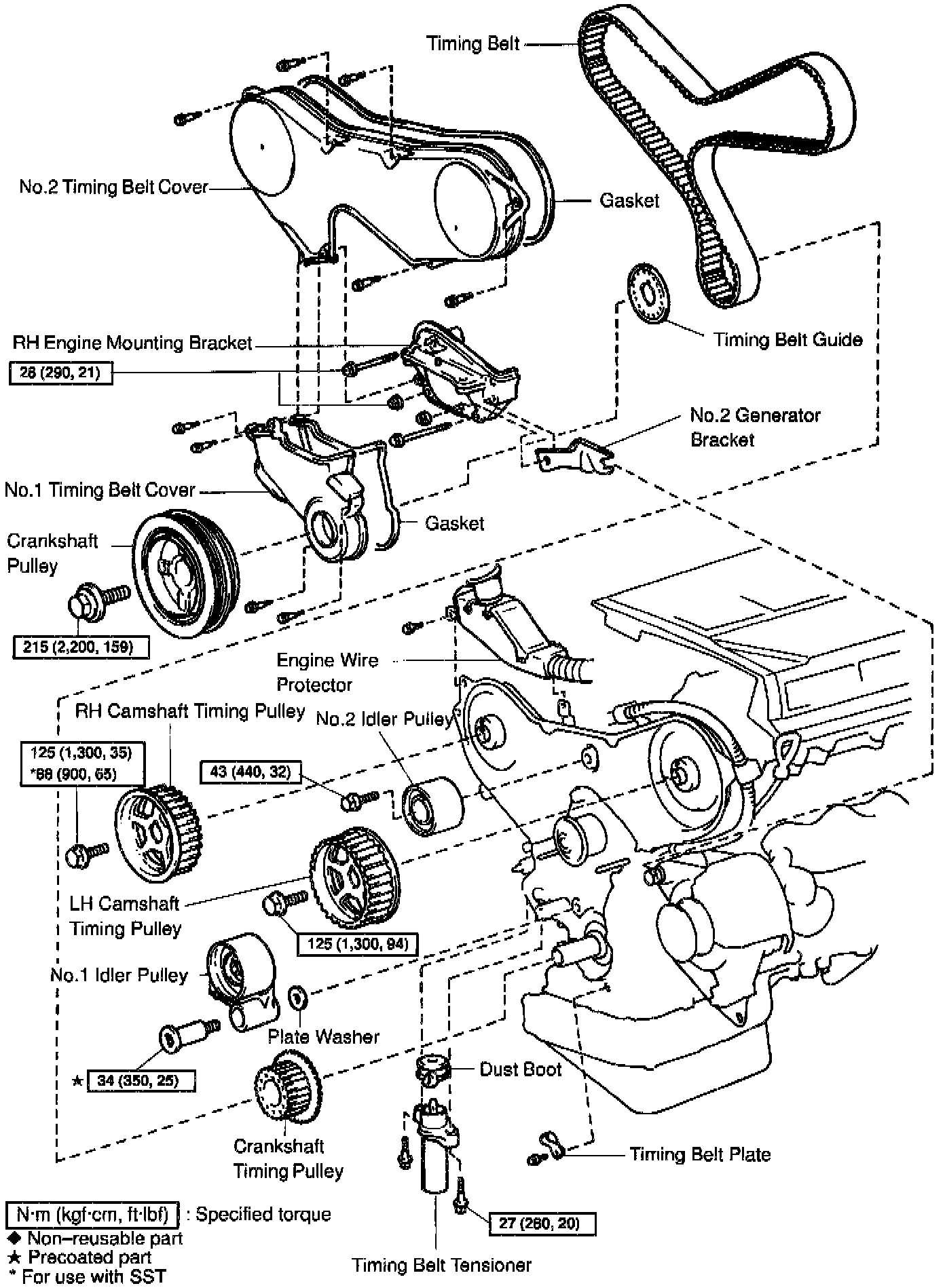

TIMING BELT
COMPONENTS
NO.1 AND NO.2
OIL PAN
AND RELATED COMPONENTS

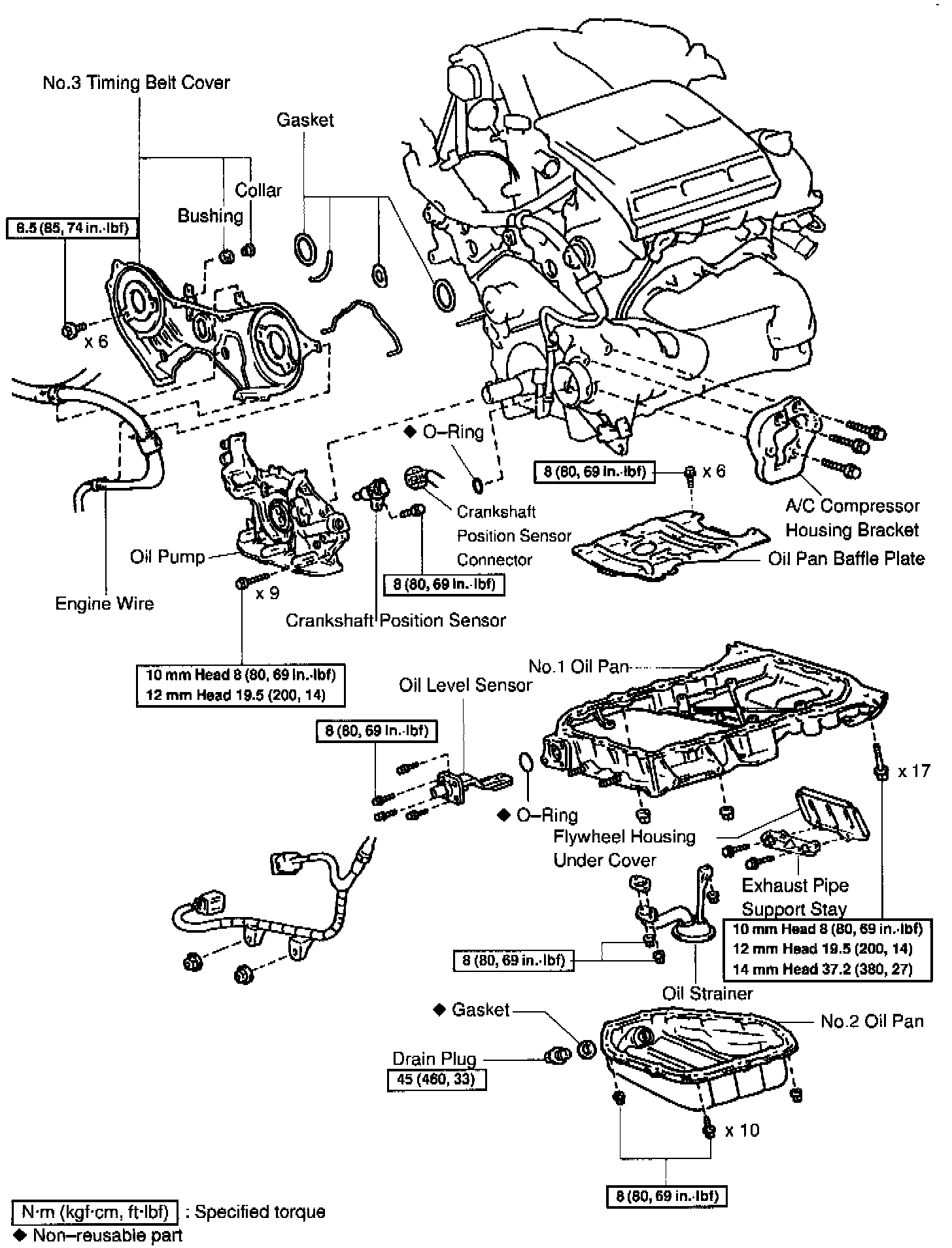

OIL PUMP
