Home >> Lexus >> 1997 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Electronic Brake Control Module >> Antilock Brake (ABS) System

Antilock Brake (ABS) System

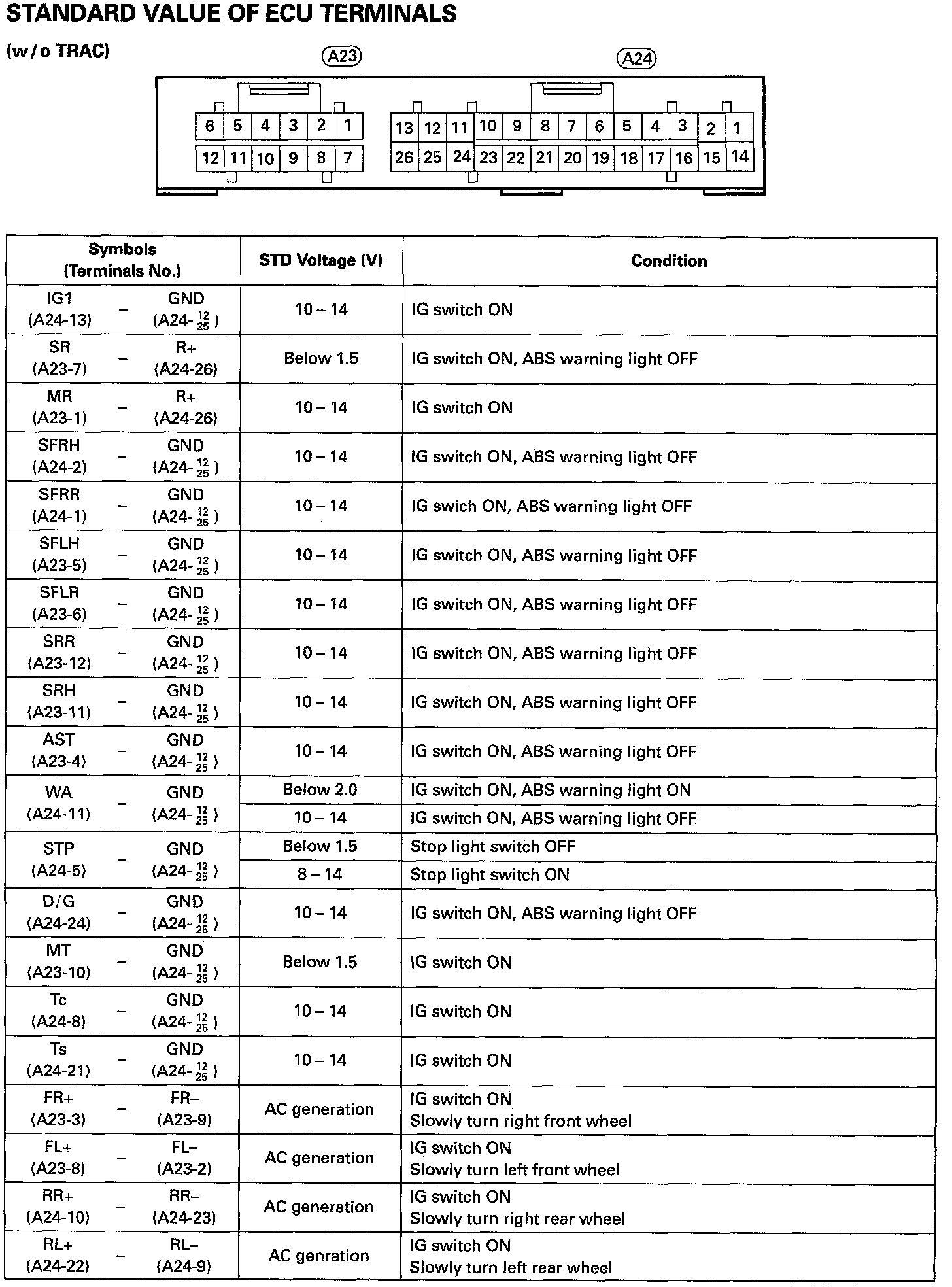

ABS W/out TRAC Standard Valve Of ECU Terminals Chart:
