No.2 Vehicle Speed Sensor

REPLACEMENT
1. Disconnect No.2 vehicle speed sensor connector.

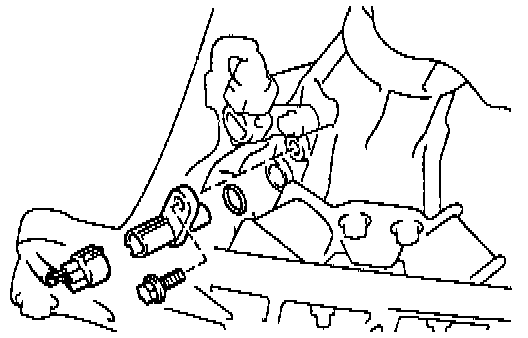

2. Remove No.2 vehicle speed sensor, as follows:





a. Remove the bolt and No.2 vehicle speed sensor.
b. Remove the O-ring from the No.2 vehicle speed sensor.
3. Install No.2 vehicle speed sensor, as follows:
a. Coat a new O-ring with Automatic Transmission Fluid (ATF) and install it to the No.2 vehicle speed sensor.
b. Install the No.2 vehicle speed sensor to the extension housing and torque the bolt.
Torque: 5.4 Nm (48 inch lbs).
4. Connect No.2 vehicle speed sensor connector.
