Home >> Lexus >> 1997 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

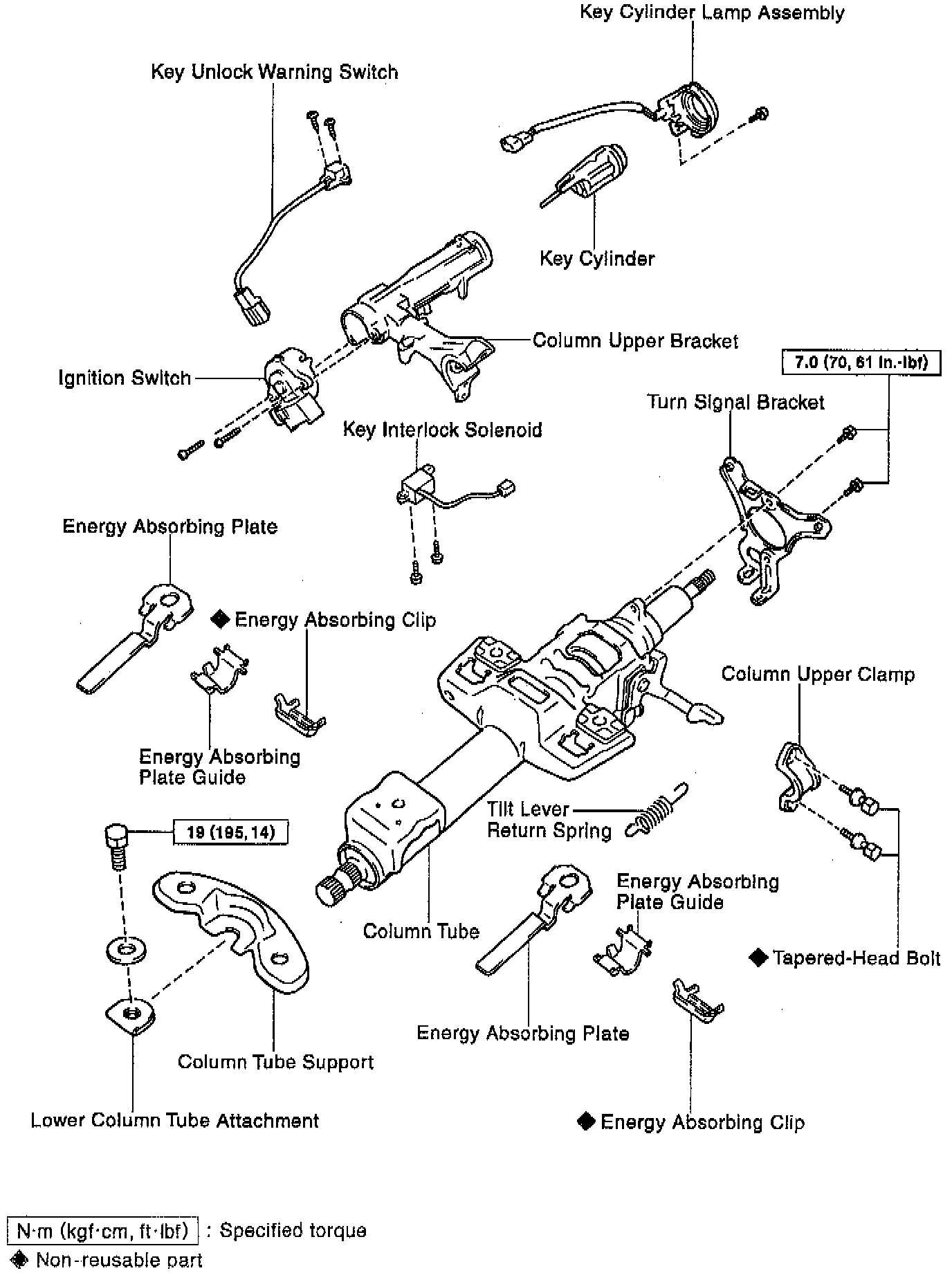

First Of Two:

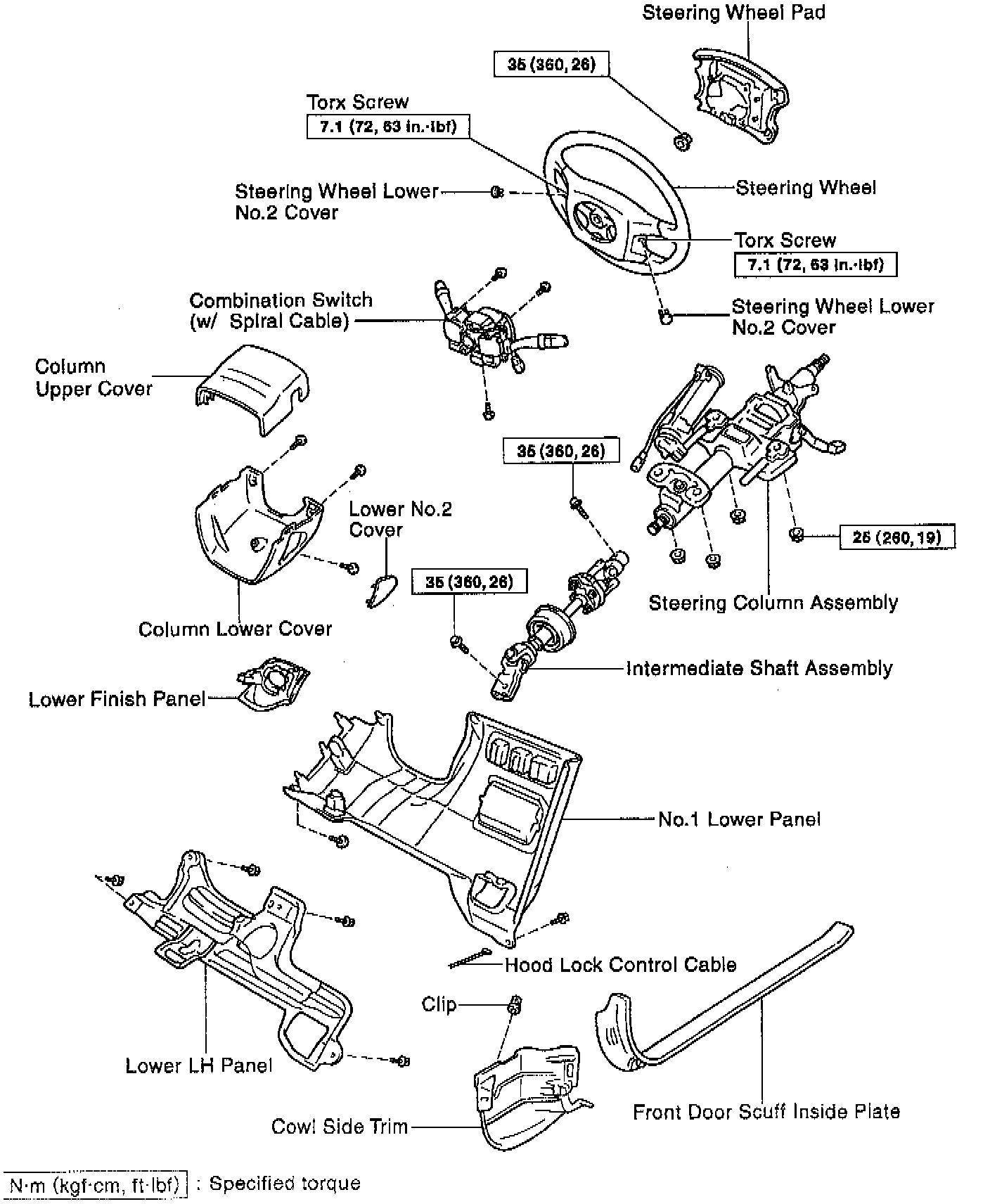

Second Of Two:
