Home >> Lexus >> 1996 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Compact Disc Player (CD)

Compact Disc Player (CD)

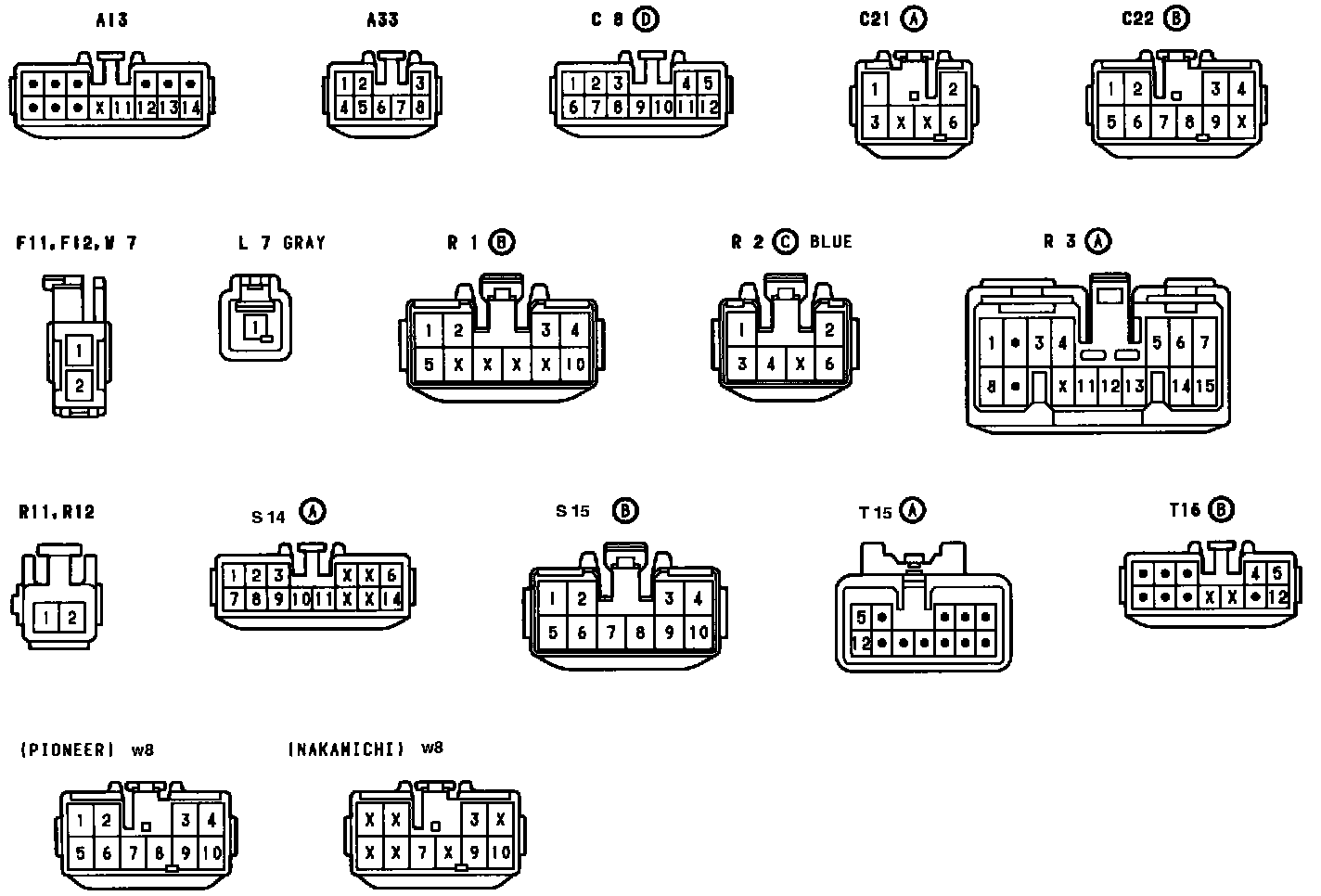

Radio And Player(W/CD Player)-Connectors:
