Shift and Lock-Up Points

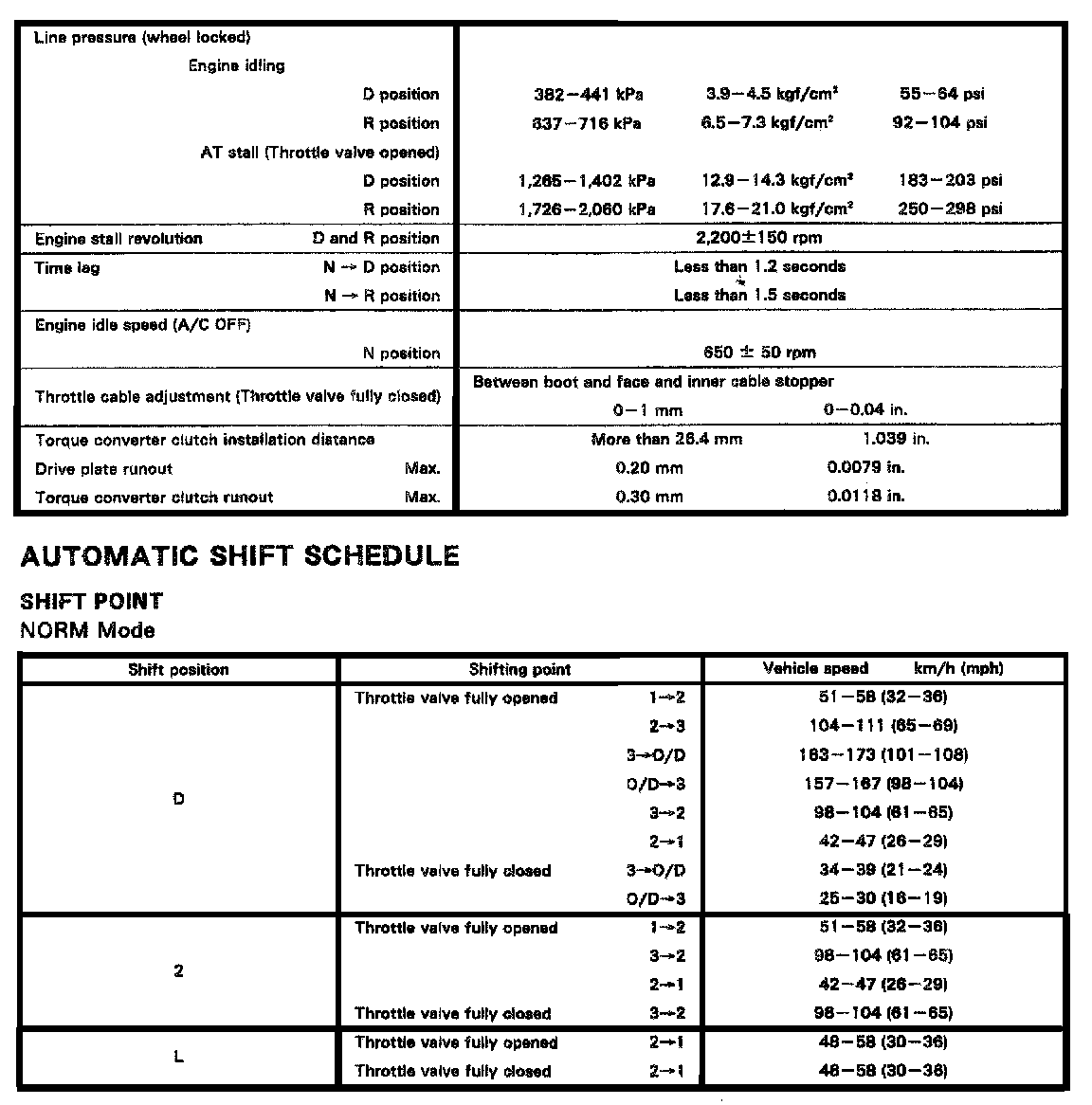

A340E 4-spd A/T, Line Pressure / Shift Point (Norm Mode):

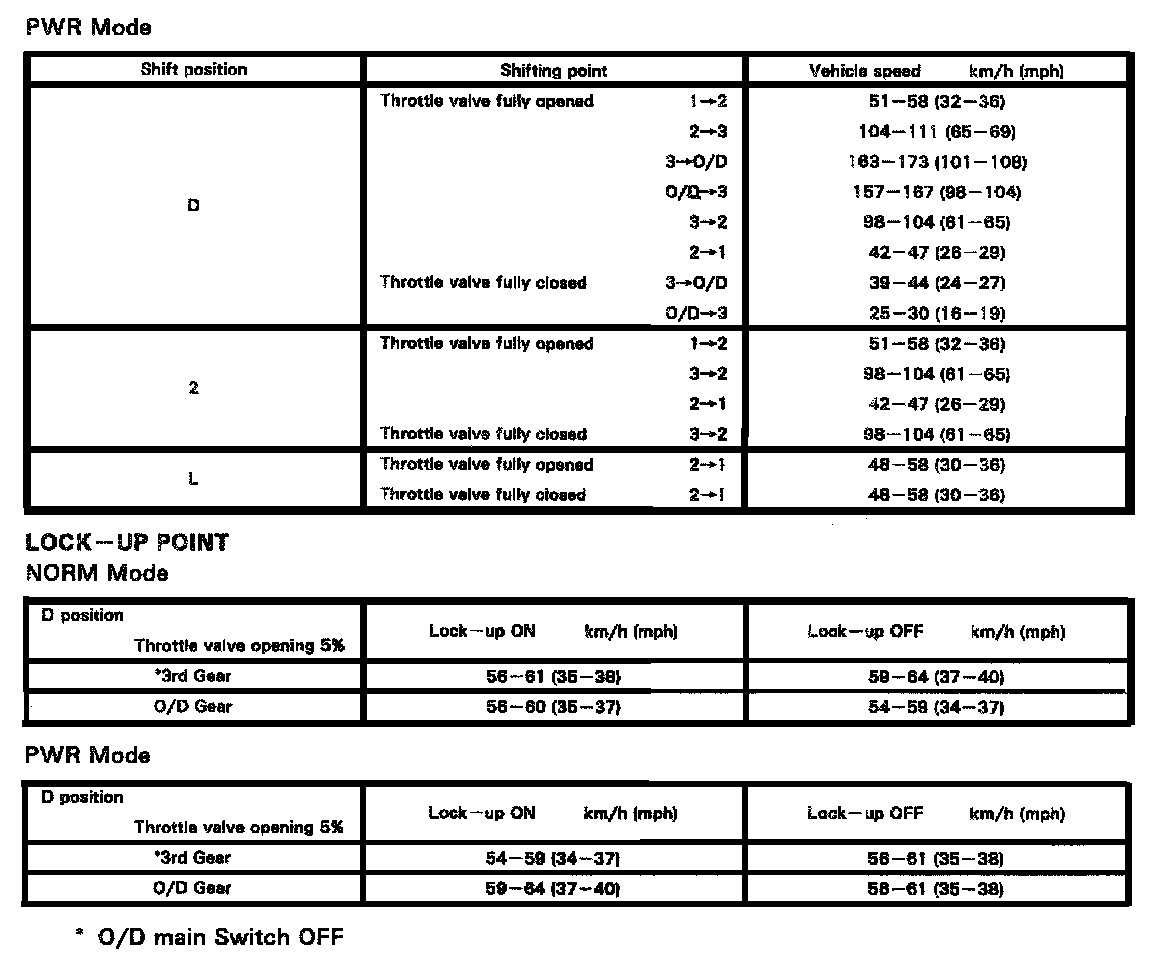

A340E 4-spd A/T, Shift Mode(PWR) / Lock Up Point:
