Service Data

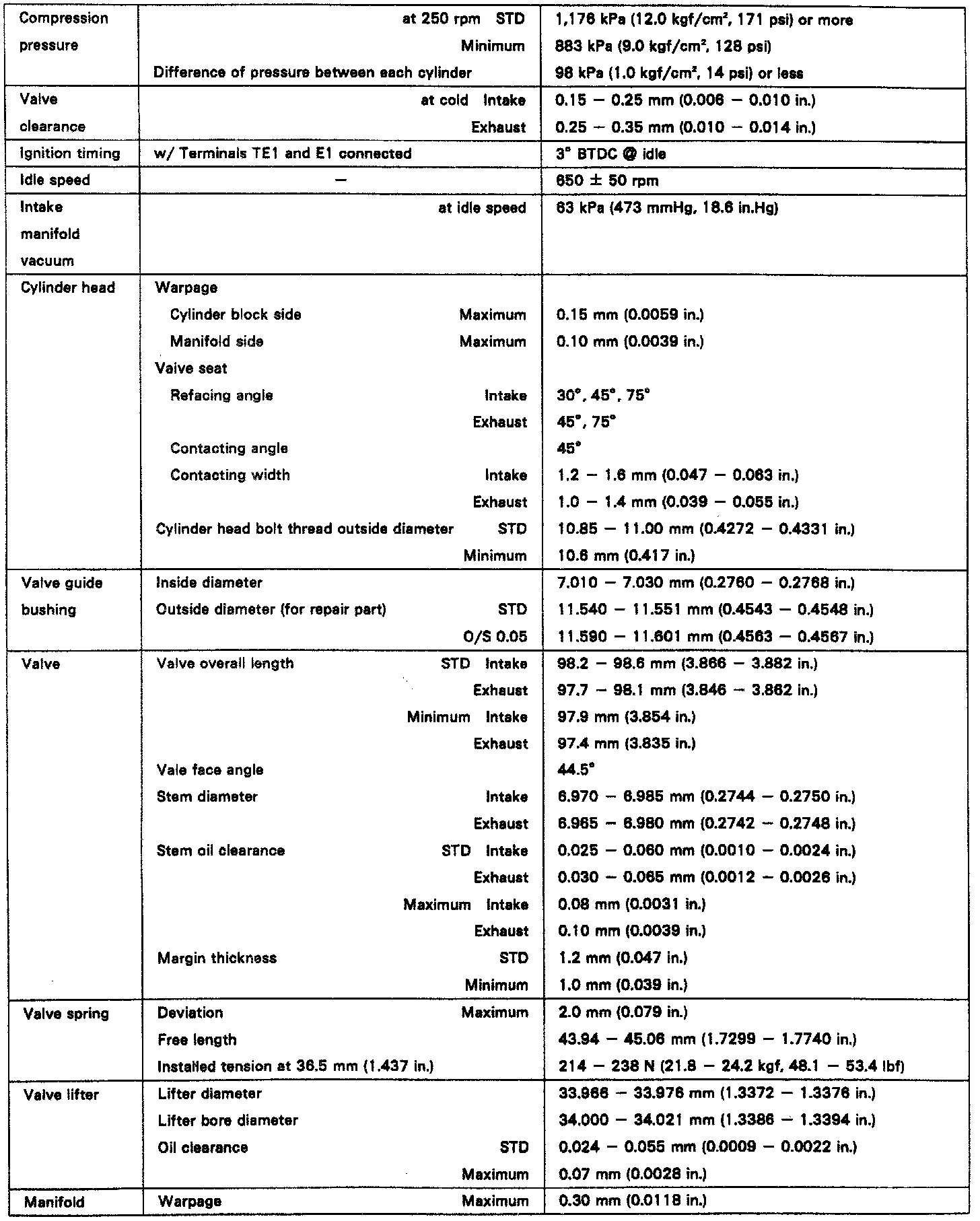

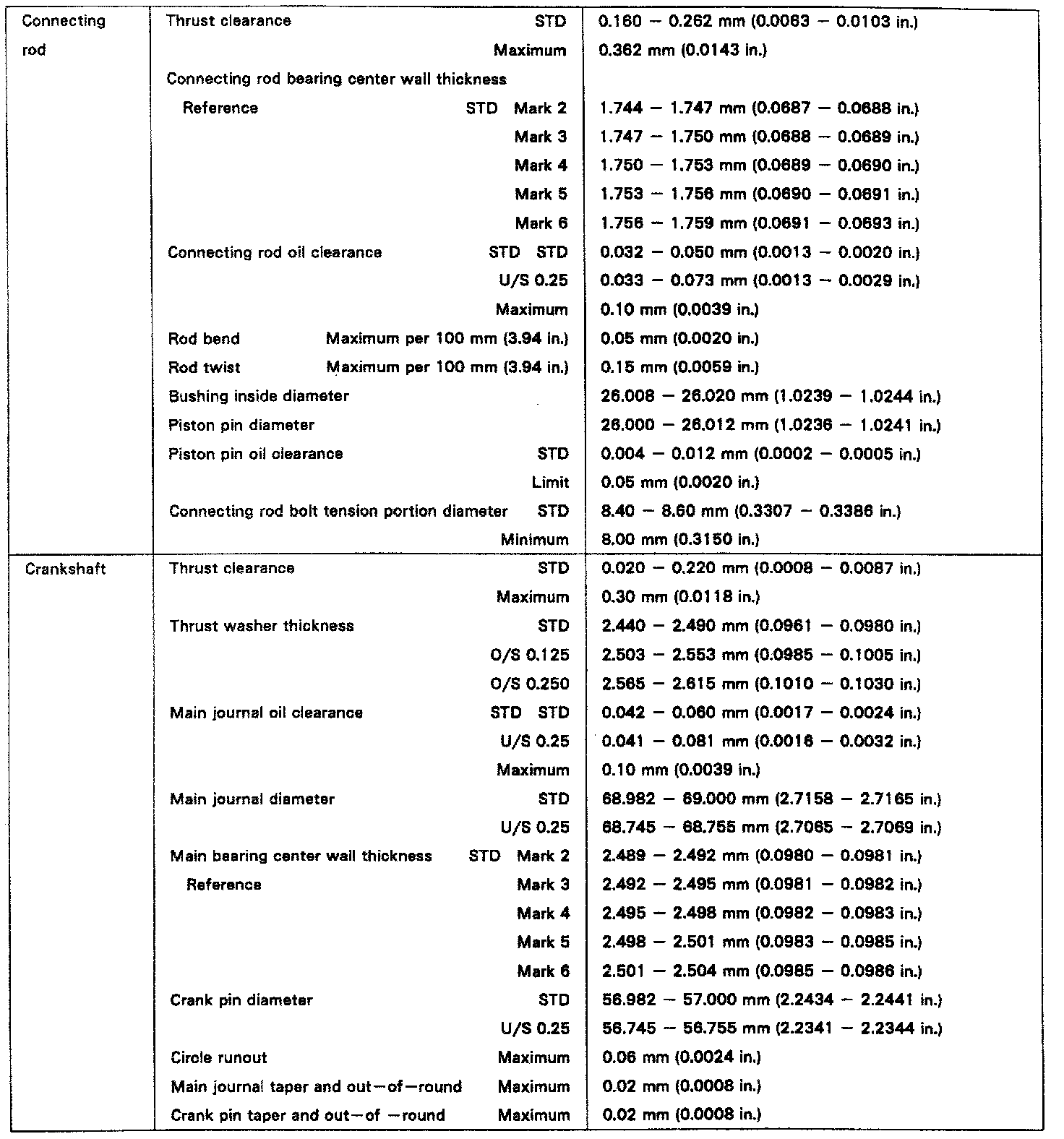

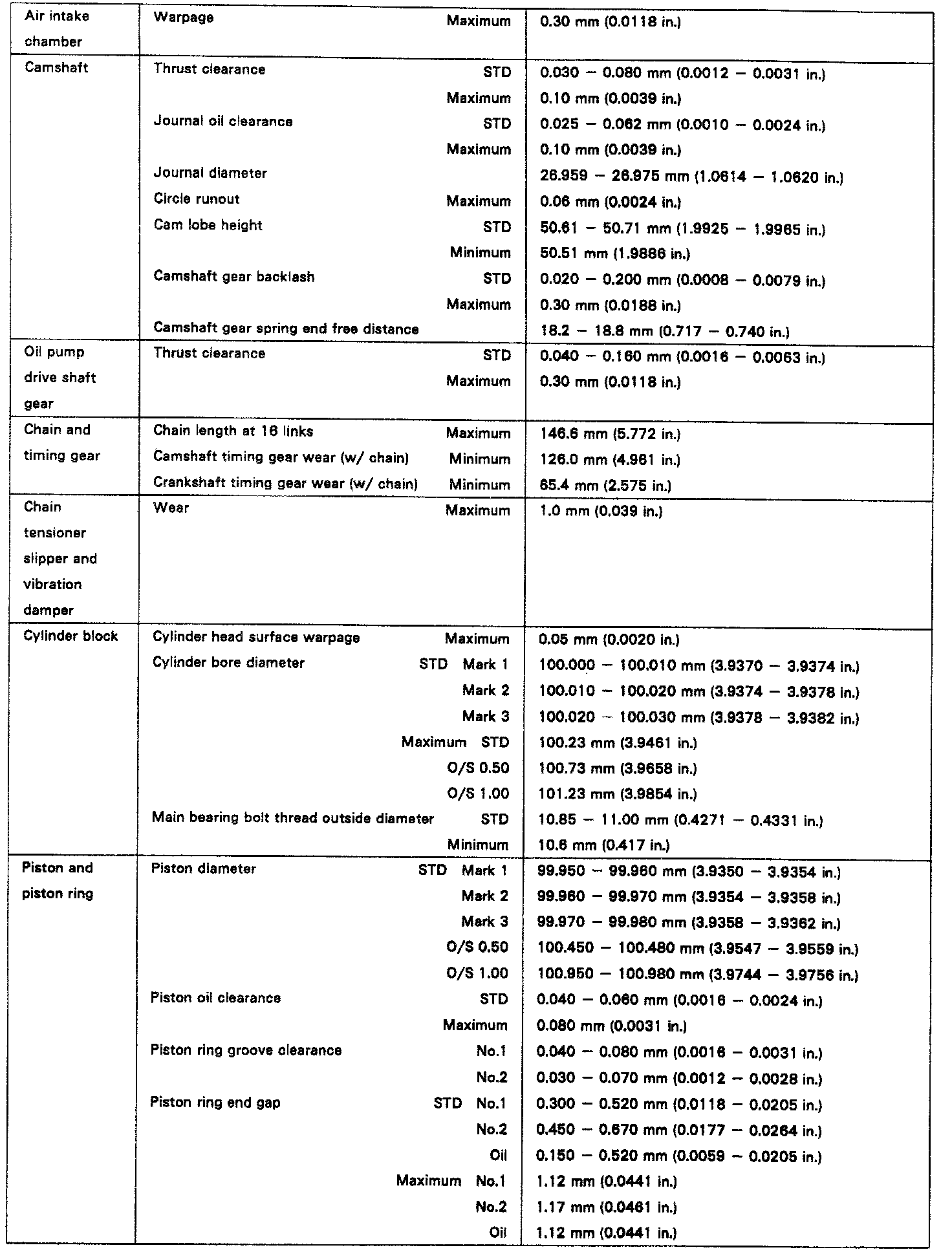

ENGINE SPECIFICATIONS

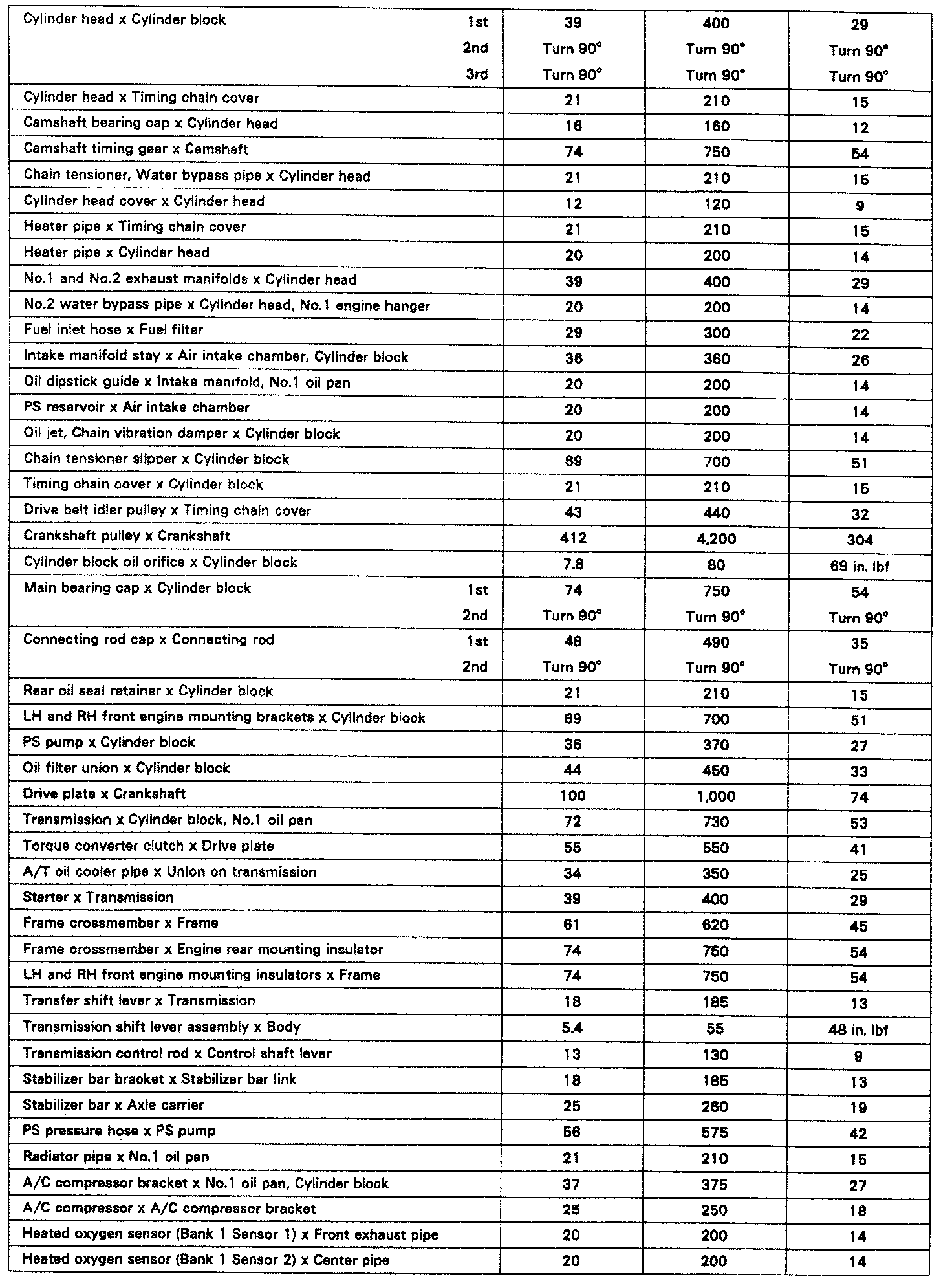

TIGHTENING SPECIFICATIONS

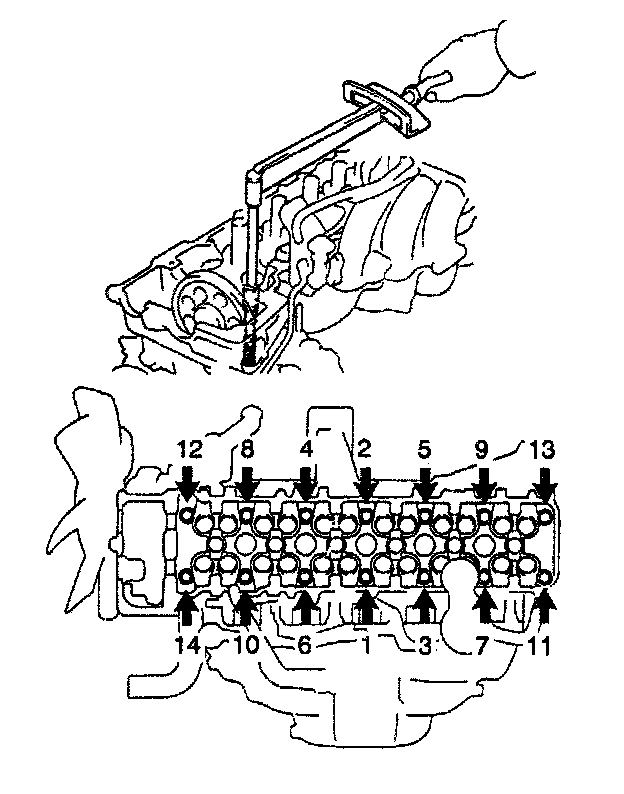

CYLINDER HEAD TIGHTENING SEQUENCE





CAM TIGHTENING SEQUENCE









MAIN BEARING TIGHTENING SEQUENCE





FLYWHEEL TIGHTENING SEQUENCE
