EGR Temperature Sensor: Testing and Inspection

EGR GAS TEMPERATURE SENSOR INSPECTION

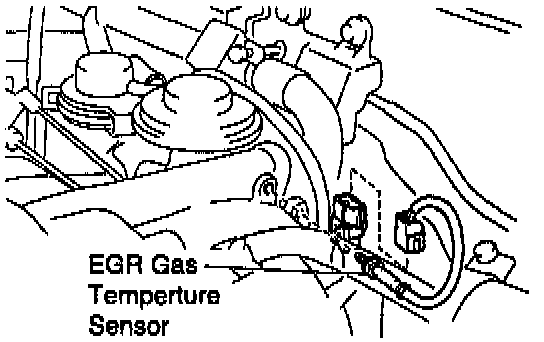

1. Remove EGR gas temperature sensor.
2. Inspect EGR gas temperature sensor.

Ohmmeter Connection:

Reference Chart:

Using an ohmmeter, measure the resistance between the terminals.
If the resistance is not as specified, replace the sensor.
3. Reinstall EGR gas temperature sensor.

Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)
