Bank 1 Sensor 2

INSPECT HEATER RESISTANCE OF HEATED OXYGEN SENSOR
- Remove the passenger's seat.
- Take out the console box side of the floor carpet.
- Disconnect the oxygen sensor connector.

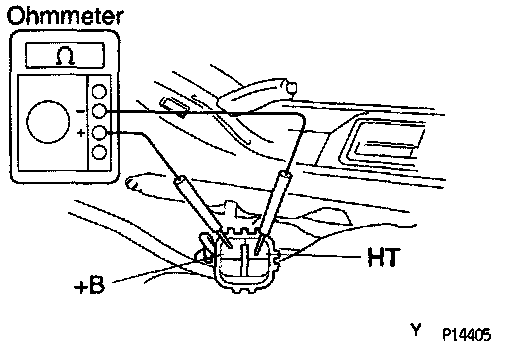

- Using an ohmmeter, measure the resistance between the terminals +B and HT.

Resistance: At 20°C (68°F): 11 - 16 ohms.

- If the resistance is not as specified, replace the sensor.

Torque: 44 N.m (440 kgf.cm, 31 ft.lb.)

- Reconnect the oxygen sensor connector.
- Reinstall the floor carpet.
- Reinstall the passenger's seat.
