Home >> Lexus >> 1996 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Overdrive Assembly, A/T

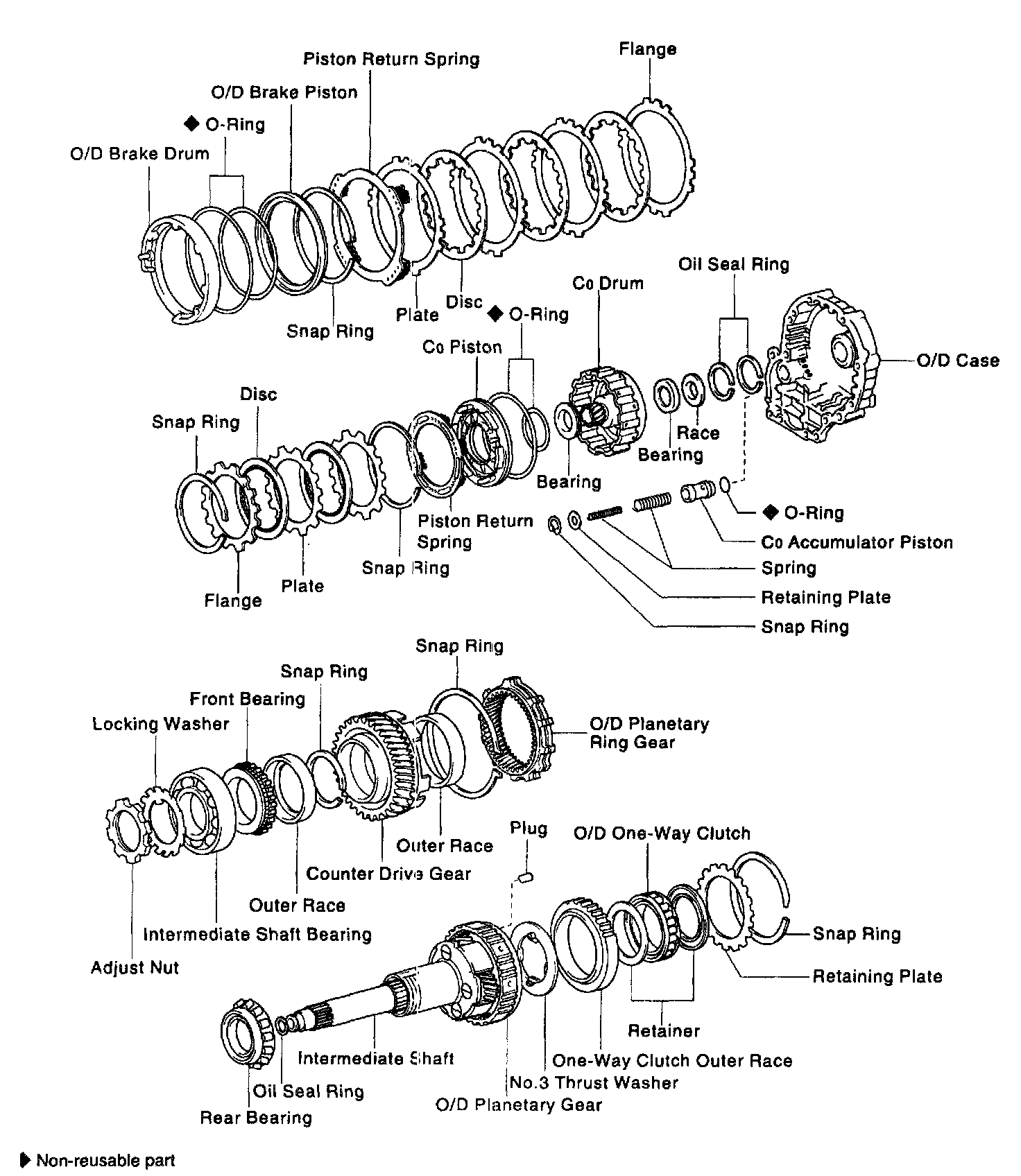

Overdrive Assembly, A/T
