Component Inspection

POWER WINDOW SWITCH INSPECTION

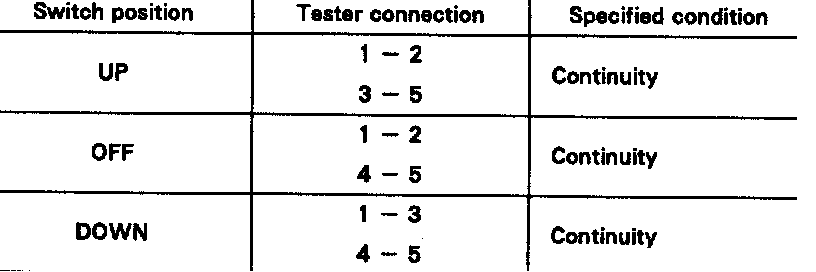

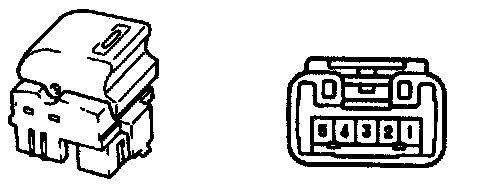

1. INSPECT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

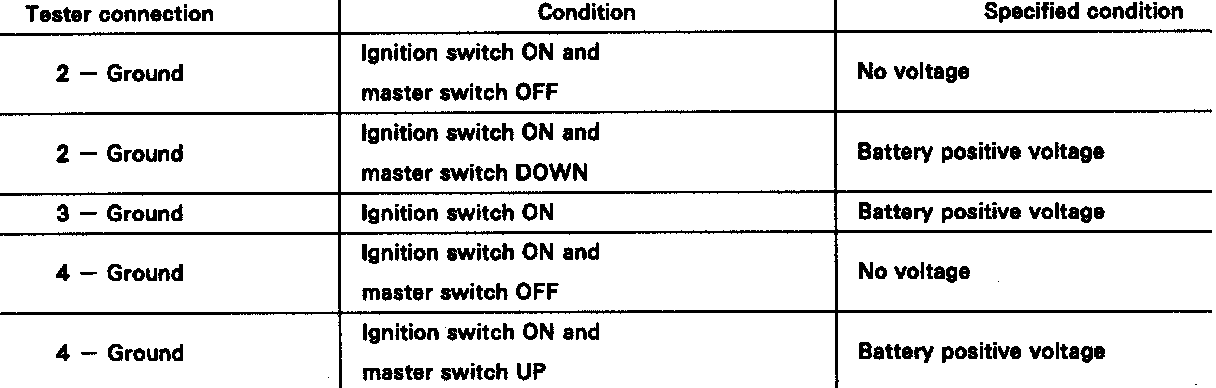

2. INSPECT SWITCH CIRCUIT

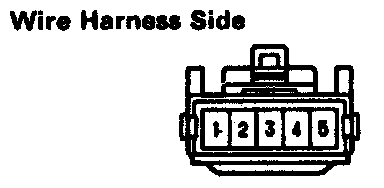

Disconnect the connector from the switch and inspect the connector on the wire harness side, as shown.






If the circuit is not as specified, inspect the circuits connected to other parts.
